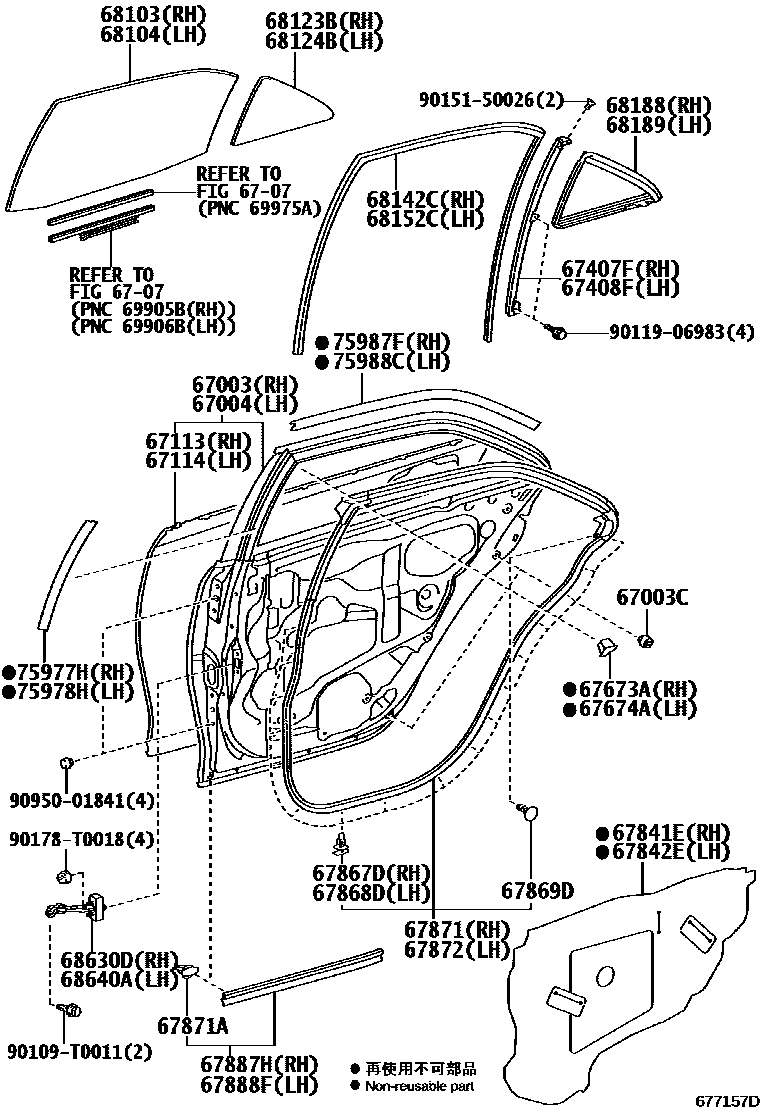

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1D00R TRIM 0003 1 0004 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06160iASV50..6F201110-201504

sub67003-33200

main67003-06210iASV50,AVV50201708

main67003-06280iASV50,AVV50201504-201708

sub67003-06210

sub67673-06220

67003CCUSHION, REAR DOOR PANEL

main90541-09124iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06160iASV50..6F201110-201504

sub67004-33200

main67004-06230iASV50,AVV50201504-201708

sub67004-06270

sub67673-06220

main67004-06270iASV50,AVV50201708

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-06110iASV50,AVV50,GSV50..ATM,CVT201110-201504

sub67113-33120

main67113-06150iASV50,AVV50201708

main67113-06160iASV50,AVV50201504-201708

sub67113-06150

67114PANEL, REAR DOOR, OUTER LH

main67114-06110iASV50..6F201110-201504

sub67114-33120

main67114-06150iASV50,AVV50201708

main67114-06160iASV50,AVV50201504-201708

sub67114-06150

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-06110iASV50..SE201504-201605

main67407-33100iASV50..6F201110-201504

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-06110iASV50..SE201504-201605

main67408-33100iASV50,AVV50,GSV50..ATM,CVT201110-201504

67673AGARNISH, REAR DOOR FRAME, RH

main67673-06080iASV50,AVV50,GSV50..ATM,CVT201110-201605

sub67673-33120

67674AGARNISH, REAR DOOR FRAME, LH

main67674-06080iASV50..6F201110-201605

sub67674-33120

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06200iASV50..SE201110-201605

sub67841-33120

main67841-06270iGSV50201202-201504

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06200iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

sub67842-33120

main67842-06270iGSV50201202-201504

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iASV50..6F201110-201605

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iASV50..6F201110-201605

67869DCLIP, DOOR WEATHERSTRIP

main67868-30030iASV50..6F201110-201605

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06100iASV50..6F201110-201504

sub67871-06090

main67871-06160iASV50..SE201504-201605

sub67871-06150

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iASV50,AVV50,GSV50..ATM,CVT201110-201605

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06100iASV50..6F201110-201504

sub67872-33100

main67872-06160iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

sub67872-06150

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-06030iASV50,AVV50,GSV50..ATM,CVT201110-201605

sub67887-33030

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-06020iASV50..SE201110-201605

sub67888-33030

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-06180iASV50..6F201110-201504

*TEM,T=4.0,GREEN

main68113-06180iGSV50201504

main68113-06270iASV50..SE201504-201605

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-06180iGSV50201504

main68114-06180iASV50..6F201110-201504

*TEM,T=4.0,GREEN

main68114-06270iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06140iASV50,AVV50,GSV50..ATM,CVT201110-201504

*TEM,T=3.5,GREEN

main68123-06140iGSV50201504

main68123-06230iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06140iGSV50201504

main68124-06140iASV50..6F201110-201504

*TEM,T=3.5,GREEN

main68124-06230iASV50..SE201504-201605

68142CRUN, REAR DOOR GLASS, RH

main68142-06090iASV50,AVV50,GSV50201110-201504

sub68142-33110

main68142-06091iGSV50201504

main68142-06150iASV50..SE201504-201605

sub68142-06140

68152CRUN, REAR DOOR GLASS, LH

main68152-06090iASV50,AVV50,GSV50201110-201504

sub68152-33110

main68152-06091iGSV50201504

main68152-06150iASV50..SE201504-201605

sub68152-06140

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-06080iASV50..6F201110-201504

sub68188-33060

main68188-06140iASV50..SE201504-201605

sub68188-06130

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-06080iASV50..6F201110-201504

sub68189-33060

main68189-06140iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

sub68189-06130

68630DCHECK ASSY, REAR DOOR, RH

main68630-06091iASV50..6F201110-201605

sub68630-33092

68640ACHECK ASSY, REAR DOOR, LH

main68630-06091iASV50,AVV50,GSV50..ATM,CVT201110-201605

sub68630-33092

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-06060iASV50..SE201110-201605

sub75977-33020

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-06060iASV50,AVV50,GSV50..ATM,CVT201110-201605

sub75978-33020

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-06070iGSV50201110-201504

sub75987-33040

main75987-06150iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

sub75987-06140

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-06070iASV50,AVV50,GSV50..ATM,CVT201110-201504

sub75988-33040

main75988-06150iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

sub75988-06140

90109T0011

main90109-T0011

9011906983

main90119-06983

9015150026

main90151-50026

90178T0018

main90178-T0018

9095001841

main90950-01841

39 parts on this diagram · 4 diagrams in section
