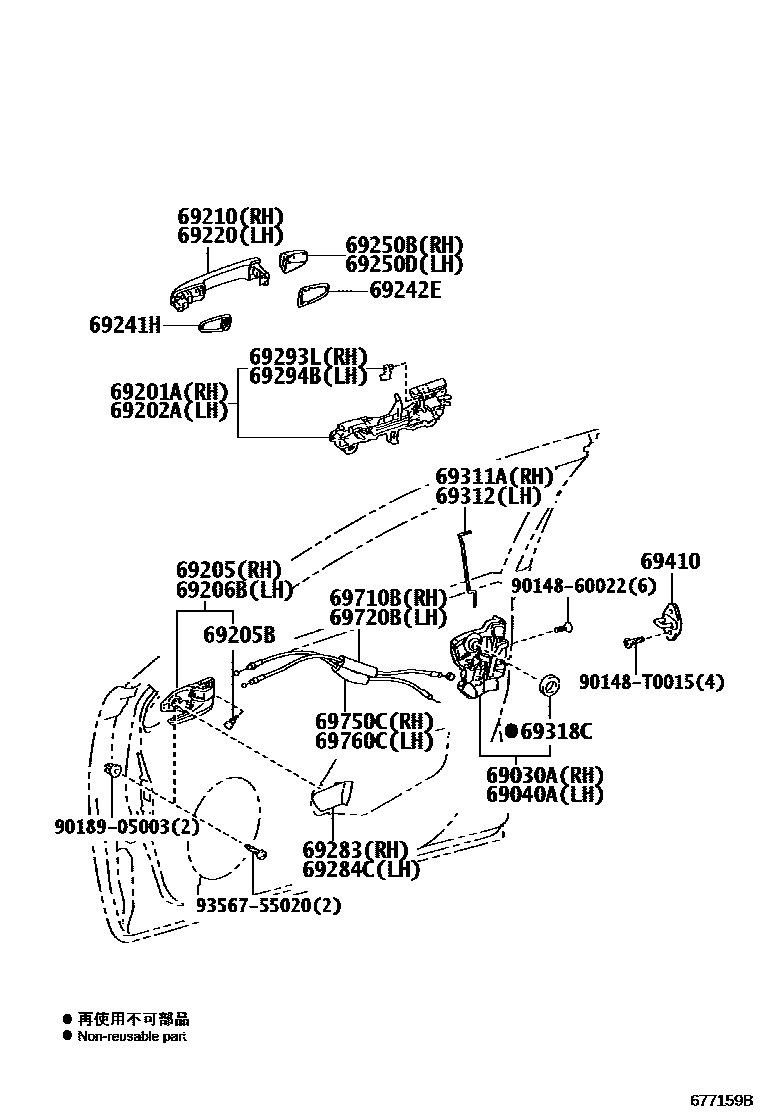

FRONT DOOR LOCK & HANDLE

0001 1 0002 1W/O(STARTING SYSTEM-PUSH BUTT

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-06170iASV50,AVV50,GSV50..ARL201110-201504

sub69030-42210

main69030-06180iASV50..6FC..GL201110-201504

sub69030-33290

main69030-06190iASV50..SE201504-201605

sub69030-42221

main69030-06190iASV50..6F..(GLX,SE)201110-201504

WIRELESS DOOR LOCK-WITH

sub69030-42221

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-06150iASV50,AVV50,GSV50..ARL201110-201504

sub69040-42230

main69040-06160iASV50..SE201110-201605

sub69040-02300

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-06080iGSV50..ATX;ASV50..6FC..(ALT,GL,GLX,SE)201110-201605

sub69201-52130

main69201-06080iASV50..ALT,GL,GLX201504

DECONTENT PACKAGE

sub69201-52130

main69201-52130iGSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201504

main69201-52130iGSV50;ASV50,AVV50..ATRS,ATRSX,HBD201504

WIRELESS DOOR LOCK-W(SMART ENTRY)

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-06090iASV50..ALT,GL,GLX201504

DECONTENT PACKAGE

sub69202-52070

main69202-06090iASV50..SE201110-201605

sub69202-52070

main69202-52070iASV50..GLX201504

WIRELESS DOOR LOCK-W(SMART ENTRY)

main69202-52070iGSV50..GD,PRD,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201504

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-06100-C0iASV50,GSV50..GD,GLX,TOU201110-201710

BLACK,TRIM0#,1#

sub69205-33111

main69205-06100-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM0#

sub69205-33111

main69205-06100-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM2#

sub69205-33111

main69205-06100-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM0#,2#

sub69205-33111

main69205-06100-C0iASV50,GSV50..GD,GLX201504-201710

BLACK,TRIM0#,1#,2#

sub69205-33111

main69205-06100-C0iASV50,GSV50..GD,GLX201504-201710

GL SP PACKAGE,BLACK,TRIM0#,1#

sub69205-33111

main69205-06100-C0iGSV50..ATX201202-201504

BLACK,TRIM1#,2#

sub69205-33111

main69205-06110-C1iASV50..GL201110-201710

BLACK,TRIM0#,1#,2#

main69205-06110-C1iASV50..GL201504-201710

BLACK,TRIM2#

main69205-06110-C1iASV50..GL201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

main69205-06110-C1iASV50..6F..GL201110-201211

BLACK,TRIM0#,1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90089-54015iASV50,AVV50,GSV50..ATM,CVT201110-201605

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-06100-C0iASV50,GSV50..SE,TOU201110-201710

BLACK,TRIM0#,2#

sub69206-0E030

main69206-06100-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM0#

sub69206-0E030

main69206-06100-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM2#

sub69206-0E030

main69206-06100-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM0#,1#

sub69206-0E030

main69206-06100-C0iGSV50..ATX201202-201504

BLACK,TRIM1#,2#

sub69206-0E030

main69206-06100-C0iASV50..ATRS201504-201710

BLACK,TRIM0#,1#,2#

sub69206-0E030

main69206-06100-C0iASV50..ATRS201504-201710

GL SP PACKAGE,BLACK,TRIM0#,1#

sub69206-0E030

main69206-06110-C1iASV50,AVV50..ATRS,HBD201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

sub69206-33121

main69206-06110-C1iASV50..GL201110-201710

BLACK,TRIM0#,1#,2#

sub69206-33121

main69206-06110-C1iASV50..6F..GL201110-201211

BLACK,TRIM0#,1#

sub69206-33121

main69206-06110-C1iASV50..GL201504-201710

BLACK,TRIM2#

sub69206-33121

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06936iASV50..GL201110-201710

PAINT REQ.

main69210-06936iASV50..GL201504-201710

PAINT REQ.,GL SP PACKAGE

main69210-33120-A0iASV50,GSV50..ATRS,GD,PRD201110-201504

DIAMOND WHITE,061

sub69210-33120

main69210-33120-A1iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),WHITE PEARL CS.,070

sub69210-33120

main69210-33120-A1iASV50..GLX201110-201710

WHITE PEARL CS.,070

sub69210-33120

main69210-33120-B0iASV50,GSV50..ATRS,GD,PRD201110-201710

SILVER ME.,1F7

sub69210-33120

main69210-33120-B0iGSV50..GD,PRD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7

sub69210-33120

main69210-33120-B1iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3

sub69210-33120

main69210-33120-B1iASV50,GSV50..ATRS,GD,PRD201110-201710

GRAY ME.,1G3

sub69210-33120

main69210-33120-C0iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218

sub69210-33120

main69210-33120-C0iASV50,GSV50..ATRS,GD,PRD201110-201710

ATTITUDE BLACK MC.,218

sub69210-33120

main69210-33120-D0iASV50,GSV50..ATRS,GD,PRD201110-201504

RED M.M.,3R3

sub69210-33120

main69210-33120-E0iGSV50..GD,PRD201110-201710

BRONZE M.M.,4S2

sub69210-33120

main69210-33120-E0iGSV50..GD,PRD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),BRONZE M.M.,4S2

sub69210-33120

main69210-33120-J0iASV50,GSV50..ATRS,GD,PRD201110-201504

BLUE M.M.,8L5

sub69210-33120

main69210-33120-J1iASV50,GSV50..ATRS,GD,PRD201110-201504

LT.BLUE ME.,8S4

sub69210-33120

main69210-33120-J8iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6

sub69210-33120

main69210-33120-J8iGSV50..GD,PRD201504-201710

DK.BLUE M.M.,8W6

sub69210-33120

main69210-52100-A1iASV50,AVV50,GSV50..ATRS,HBD,TOU201110-201710

WHITE PEARL CS.,070

sub69210-52100

main69210-52100-A2iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

DIAMOND WHITE,061

sub69210-52100

main69210-52100-B0iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

SILVER ME.,1F7

sub69210-52100

main69210-52100-B1iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

GRAY ME.,1G3

sub69210-52100

main69210-52100-C1iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201710

ATTITUDE BLACK MC.,218

sub69210-52100

main69210-52100-D0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SE,SPVS201605-201710

SUPER RED 5,3P0

sub69210-52100

main69210-52100-D3iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201504-201605

WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3

sub69210-52100

main69210-52100-D3iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201605

RED M.M.,3R3

sub69210-52100

main69210-52100-E3iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

BRONZE M.M.,4S2

sub69210-52100

main69210-52100-J4iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201504

BLUE M.M.,8L5

sub69210-52100

main69210-52100-J5iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201504

LT.BLUE ME.,8S4

sub69210-52100

main69210-52100-R2iASV50,AVV50..ATRS,ATRSX,HBD201504-201710

LT.BLUE M.M.,8S0

sub69210-52100

main69210-52100-R3iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201504-201710

DK.BLUE M.M.,8W6

sub69210-52100

main69211-06910iASV50..ATRS201110-201710

PAINT REQ.

sub69211-52901

main69211-06910iASV50..ALT,GL,SE201504-201710

PAINT REQ.,DECONTENT PACKAGE

sub69211-52901

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-06936iASV50..GLX201110-201710

PAINT REQ.

main69210-06936iASV50..GLX201504-201710

PAINT REQ.,GL SP PACKAGE

main69210-33120-A0iASV50,GSV50..ATRS,GD,PRD201110-201504

DIAMOND WHITE,061

sub69210-33120

main69210-33120-A1iASV50,GSV50..ATRS,GD,PRD201110-201710

WHITE PEARL CS.,070

sub69210-33120

main69210-33120-A1iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),WHITE PEARL CS.,070

sub69210-33120

main69210-33120-B0iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7

sub69210-33120

main69210-33120-B0iASV50,GSV50..ATRS,GD,PRD201110-201710

SILVER ME.,1F7

sub69210-33120

main69210-33120-B1iGSV50..GD,PRD201110-201710

GRAY ME.,1G3

sub69210-33120

main69210-33120-B1iGSV50..GD,PRD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3

sub69210-33120

main69210-33120-C0iGSV50..GD,PRD201110-201710

ATTITUDE BLACK MC.,218

sub69210-33120

main69210-33120-C0iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218

sub69210-33120

main69210-33120-D0iASV50,GSV50..ATRS,GD,PRD201110-201504

RED M.M.,3R3

sub69210-33120

main69210-33120-E0iASV50..GLX201110-201710

BRONZE M.M.,4S2

sub69210-33120

main69210-33120-E0iGSV50..GD,PRD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),BRONZE M.M.,4S2

sub69210-33120

main69210-33120-J0iASV50,GSV50..ATRS,GD,PRD201110-201504

BLUE M.M.,8L5

sub69210-33120

main69210-33120-J1iASV50,GSV50..ATRS,GD,PRD201110-201504

LT.BLUE ME.,8S4

sub69210-33120

main69210-33120-J8iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6

sub69210-33120

main69210-33120-J8iGSV50..GD,PRD201504-201710

DK.BLUE M.M.,8W6

sub69210-33120

main69210-52100-A1iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

WHITE PEARL CS.,070

sub69210-52100

main69210-52100-A2iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201710

DIAMOND WHITE,061

sub69210-52100

main69210-52100-B0iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

SILVER ME.,1F7

sub69210-52100

main69210-52100-B1iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201710

GRAY ME.,1G3

sub69210-52100

main69210-52100-C1iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201110-201710

ATTITUDE BLACK MC.,218

sub69210-52100

main69210-52100-D0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SE,SPVS201605-201710

SUPER RED 5,3P0

sub69210-52100

main69210-52100-D3iASV50..SE201504-201605

WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3

sub69210-52100

main69210-52100-D3iASV50..SE201110-201605

RED M.M.,3R3

sub69210-52100

main69210-52100-E3iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201710

BRONZE M.M.,4S2

sub69210-52100

main69210-52100-J4iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201504

BLUE M.M.,8L5

sub69210-52100

main69210-52100-J5iGSV50..SE,SPVS,TOU;ASV50,AVV50..ATRSX,HBD201110-201504

LT.BLUE ME.,8S4

sub69210-52100

main69210-52100-R2iASV50,AVV50..ATRS,ATRSX,HBD201504-201710

LT.BLUE M.M.,8S0

sub69210-52100

main69210-52100-R3iGSV50..ATX,SE,SPVS,TOU;ASV50,AVV50..ATRS,ATRSX,HBD201504-201710

DK.BLUE M.M.,8W6

sub69210-52100

main69211-06910iASV50..ATRS201504-201710

PAINT REQ.,DECONTENT PACKAGE

sub69211-52901

main69211-06910iASV50..ATRS201110-201710

PAINT REQ.

sub69211-52901

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-33030iASV50..SE201504-201605

main69241-52020iASV50..6F201110-201504

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-33040iASV50..SE201504-201605

main69242-52030iASV50..6F201110-201504

69250BCOVER ASSY, DOOR OUTSIDE HANDLE

main69217-06910iASV50..ATRS201504-201710

DECONTENT PACKAGE

sub69217-52901

main69217-06910iASV50,GSV50..ALT,ATX,GL201110-201504

sub69217-52901

main69217-06912iASV50..GLX201504-201710

GL SP PACKAGE

main69217-06912iASV50..GLX201110-201504

main69217-52040-A1iGSV50..SE,TOU201202-201710

WHITE PEARL CS.,070

sub69217-52040

main69217-52040-A2iGSV50..SE,TOU201202-201710

DIAMOND WHITE,061

sub69217-52040

main69217-52040-B0iGSV50..SE,TOU201202-201710

SILVER ME.,1F7

sub69217-52040

main69217-52040-B1iGSV50..SE,TOU201202-201710

GRAY ME.,1G3

sub69217-52040

main69217-52040-C1iGSV50..SE,TOU201202-201710

ATTITUDE BLACK MC.,218

sub69217-52040

main69217-52040-D0iGSV50..SE201605-201710

SUPER RED 5,3P0

sub69217-52040

main69217-52040-D3iGSV50..SE,TOU201504-201605

WIRELESS DOOR LOCK-W(SMART ENTRY),RED M.M.,3R3

sub69217-52040

main69217-52040-D3iGSV50..SE,TOU201202-201605

RED M.M.,3R3

sub69217-52040

main69217-52040-E3iGSV50..SE,TOU201202-201710

BRONZE M.M.,4S2

sub69217-52040

main69217-52040-J3iGSV50..SE,TOU201202-201504

BLUE M.M.,8L5

sub69217-52040

main69217-52040-J4iGSV50..SE,TOU201202-201504

LT.BLUE ME.,8S4

sub69217-52040

main69217-52040-R3iGSV50..SE,TOU201504-201710

DK.BLUE M.M.,8W6

sub69217-52040

main69217-52900iASV50..ATRSX201110-201201

sub69217-52901

main69217-52901iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201201-201710

main69250-06900iASV50..GL201110-201504

WIRELESS DOOR LOCK-WITH

sub69217-52902

main69250-06900iASV50..GL,SE201504-201710

sub69217-52902

main69250-33010-A1iGSV50..PRD201110-201710

WHITE PEARL CS.,070

sub69250-33010

main69250-33010-A2iASV50,GSV50..ATRS,PRD201110-201504

DIAMOND WHITE,061

sub69250-33010

main69250-33010-B0iASV50,GSV50..ATRS,PRD201110-201710

SILVER ME.,1F7

sub69250-33010

main69250-33010-B1iASV50,GSV50..ATRS,PRD201110-201710

GRAY ME.,1G3

sub69250-33010

main69250-33010-C0iASV50,GSV50..ATRS,PRD201110-201710

ATTITUDE BLACK MC.,218

sub69250-33010

main69250-33010-D0iASV50,GSV50..ATRS,PRD201110-201504

RED M.M.,3R3

sub69250-33010

main69250-33010-E2iGSV50..PRD201110-201710

BRONZE M.M.,4S2

sub69250-33010

main69250-33010-J2iASV50,GSV50..ATRS,PRD201110-201504

BLUE M.M.,8L5

sub69250-33010

main69250-33010-J3iASV50,GSV50..ATRS,PRD201110-201504

LT.BLUE ME.,8S4

sub69250-33010

main69250-33010-J8iGSV50..PRD201504-201710

DK.BLUE M.M.,8W6

sub69250-33010

main69250-33020-A1iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),WHITE PEARL CS.,070

sub69250-33020

main69250-33020-A1iASV50..GLX201202-201710

WHITE PEARL CS.,070

sub69250-33020

main69250-33020-A2iGSV50..GD201202-201504

DIAMOND WHITE,061

sub69250-33020

main69250-33020-B0iGSV50..GD201202-201710

SILVER ME.,1F7

sub69250-33020

main69250-33020-B0iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7

sub69250-33020

main69250-33020-B1iASV50..GLX201202-201710

GRAY ME.,1G3

sub69250-33020

main69250-33020-B1iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3

sub69250-33020

main69250-33020-C0iASV50..GLX201202-201710

ATTITUDE BLACK MC.,218

sub69250-33020

main69250-33020-C0iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218

sub69250-33020

main69250-33020-D0iGSV50..GD201202-201504

RED M.M.,3R3

sub69250-33020

main69250-33020-E2iGSV50..GD201202-201710

BRONZE M.M.,4S2

sub69250-33020

main69250-33020-E2iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),BRONZE M.M.,4S2

sub69250-33020

main69250-33020-J1iGSV50..GD201202-201504

BLUE M.M.,8L5

sub69250-33020

main69250-33020-J2iGSV50..GD201202-201504

LT.BLUE ME.,8S4

sub69250-33020

main69250-33020-J7iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6

sub69250-33020

main69250-33020-J7iASV50..GLX201504-201710

DK.BLUE M.M.,8W6

sub69250-33020

69250DCOVER ASSY, DOOR OUTSIDE HANDLE, LH

main69217-06910iASV50..GL,SE201110-201710

sub69217-52901

main69217-06911iASV50..GLX201504-201710

GL SP PACKAGE

main69217-06911iASV50..GLX201110-201504

main69217-52040-A1iASV50,AVV50..ATRS,HBD201110-201710

WHITE PEARL CS.,070

sub69217-52040

main69217-52040-A2iASV50,AVV50,GSV50..ATRSX,HBD,SPVS201110-201710

DIAMOND WHITE,061

sub69217-52040

main69217-52040-B0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201110-201710

SILVER ME.,1F7

sub69217-52040

main69217-52040-B1iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201110-201710

GRAY ME.,1G3

sub69217-52040

main69217-52040-C1iASV50,AVV50,GSV50..ATRSX,HBD,SPVS201110-201710

ATTITUDE BLACK MC.,218

sub69217-52040

main69217-52040-D0iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201605-201710

SUPER RED 5,3P0

sub69217-52040

main69217-52040-D3iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201110-201605

RED M.M.,3R3

sub69217-52040

main69217-52040-E3iASV50,AVV50,GSV50..ATRSX,HBD,SPVS201110-201710

BRONZE M.M.,4S2

sub69217-52040

main69217-52040-J3iASV50,AVV50,GSV50..ATRSX,HBD,SPVS201110-201504

BLUE M.M.,8L5

sub69217-52040

main69217-52040-J4iASV50,AVV50,GSV50..ATRSX,HBD,SPVS201110-201504

LT.BLUE ME.,8S4

sub69217-52040

main69217-52040-R2iASV50,AVV50..ATRS,ATRSX,HBD201504-201710

LT.BLUE M.M.,8S0

sub69217-52040

main69217-52040-R3iASV50,AVV50,GSV50..ATRS,ATRSX,ATX,HBD,SPVS201504-201710

DK.BLUE M.M.,8W6

sub69217-52040

main69217-52901iGSV50..SE,TOU201202-201710

main69250-06900iASV50,GSV50..ALT,ATX201110-201504

sub69217-52902

main69250-06900iASV50..ALT201504-201710

DECONTENT PACKAGE

sub69217-52902

main69250-33010-A1iASV50..GLX201202-201710

WHITE PEARL CS.,070

sub69250-33010

main69250-33010-A1iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),WHITE PEARL CS.,070

sub69250-33010

main69250-33010-A2iGSV50..GD201202-201504

DIAMOND WHITE,061

sub69250-33010

main69250-33010-B0iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),SILVER ME.,1F7

sub69250-33010

main69250-33010-B0iASV50..GLX201202-201710

SILVER ME.,1F7

sub69250-33010

main69250-33010-B1iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),GRAY ME.,1G3

sub69250-33010

main69250-33010-B1iGSV50..GD201202-201710

GRAY ME.,1G3

sub69250-33010

main69250-33010-C0iGSV50..GD201202-201710

ATTITUDE BLACK MC.,218

sub69250-33010

main69250-33010-C0iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),ATTITUDE BLACK MC.,218

sub69250-33010

main69250-33010-D0iGSV50..GD201202-201504

RED M.M.,3R3

sub69250-33010

main69250-33010-E2iGSV50..GD201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),BRONZE M.M.,4S2

sub69250-33010

main69250-33010-E2iGSV50..GD201202-201710

BRONZE M.M.,4S2

sub69250-33010

main69250-33010-J2iGSV50..GD201202-201504

BLUE M.M.,8L5

sub69250-33010

main69250-33010-J3iGSV50..GD201202-201504

LT.BLUE ME.,8S4

sub69250-33010

main69250-33010-J8iASV50..GLX201504-201710

DK.BLUE M.M.,8W6

sub69250-33010

main69250-33010-J8iASV50..GLX201504-201710

WIRELESS DOOR LOCK-W(SMART ENTRY),DK.BLUE M.M.,8W6

sub69250-33010

main69250-33020-A1iASV50,GSV50..ATRS,PRD201110-201710

WHITE PEARL CS.,070

sub69250-33020

main69250-33020-A2iASV50,GSV50..ATRS,PRD201110-201504

DIAMOND WHITE,061

sub69250-33020

main69250-33020-B0iASV50,GSV50..ATRS,PRD201110-201710

SILVER ME.,1F7

sub69250-33020

main69250-33020-B1iGSV50..PRD201110-201710

GRAY ME.,1G3

sub69250-33020

main69250-33020-C0iASV50,GSV50..ATRS,PRD201110-201710

ATTITUDE BLACK MC.,218

sub69250-33020

main69250-33020-D0iASV50,GSV50..ATRS,PRD201110-201504

RED M.M.,3R3

sub69250-33020

main69250-33020-E2iGSV50..PRD201110-201710

BRONZE M.M.,4S2

sub69250-33020

main69250-33020-J1iASV50,GSV50..ATRS,PRD201110-201504

BLUE M.M.,8L5

sub69250-33020

main69250-33020-J2iASV50,GSV50..ATRS,PRD201110-201504

LT.BLUE ME.,8S4

sub69250-33020

main69250-33020-J7iGSV50..PRD201504-201710

DK.BLUE M.M.,8W6

sub69250-33020

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-06060-C0iAVV50,GSV50..HBD,PRD201110-201710

BLACK,TRIM0#,1#

sub69283-47010

main69283-06060-C0iAVV50,GSV50..HBD,PRD201110-201710

BLACK,TRIM0#

sub69283-47010

main69283-06060-C0iAVV50,GSV50..HBD,PRD201110-201710

BLACK,TRIM2#

sub69283-47010

main69283-06060-C0iAVV50,GSV50..HBD,PRD201110-201710

BLACK,TRIM0#,1#,2#

sub69283-47010

main69283-06060-C0iAVV50,GSV50..HBD,PRD201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

sub69283-47010

main69283-06060-C0iASV50,GSV50..GD,GLX201110-201710

BLACK,TRIM0#,2#

sub69283-47010

main69283-06060-C0iGSV50..ATX201202-201504

BLACK,TRIM1#,2#

sub69283-47010

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-06060-C0iASV50..ATRS,GL201110-201710

BLACK,TRIM2#

sub69284-47010

main69284-06060-C0iASV50..6FC..(ALT,GL)201110-201710

BLACK,TRIM0#

sub69284-47010

main69284-06060-C0iASV50..6FC..(ALT,GL)201110-201710

BLACK,TRIM0#,1#

sub69284-47010

main69284-06060-C0iASV50..6FC..(ALT,GL)201110-201710

BLACK,TRIM0#,2#

sub69284-47010

main69284-06060-C0iASV50,GSV50..SE201110-201710

BLACK,TRIM0#,1#,2#

sub69284-47010

main69284-06060-C0iGSV50..ATX201202-201504

BLACK,TRIM1#,2#

sub69284-47010

main69284-06060-C0iAVV50,GSV50..HBD,PRD201504-201710

DECONTENT PACKAGE,BLACK,TRIM2#

sub69284-47010

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iASV50..SE201110-201605

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iASV50..6F201110-201605

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-06111iASV50,AVV50,GSV50..ATM,CVT201110-201504

sub69311-33091

main69311-06160iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

sub69311-06150

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-06111iASV50,AVV50,GSV50..ATM,CVT201110-201504

sub69312-33091

main69312-06160iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

sub69312-06150

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02040iASV50..6F201110-201605

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-06110iASV50..6F201110-201605

sub69710-33080

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-06110iASV50..6F201110-201605

sub69710-33080

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-06100iASV50..6F201110-201605

sub69750-33070

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-06100iASV50..6F201110-201605

sub69750-33070

9014860022

main90148-60022

90148T0015

main90148-T0015

9018905003

main90189-05003

9356755020

main93567-55020

29 parts on this diagram · 2 diagrams in section
