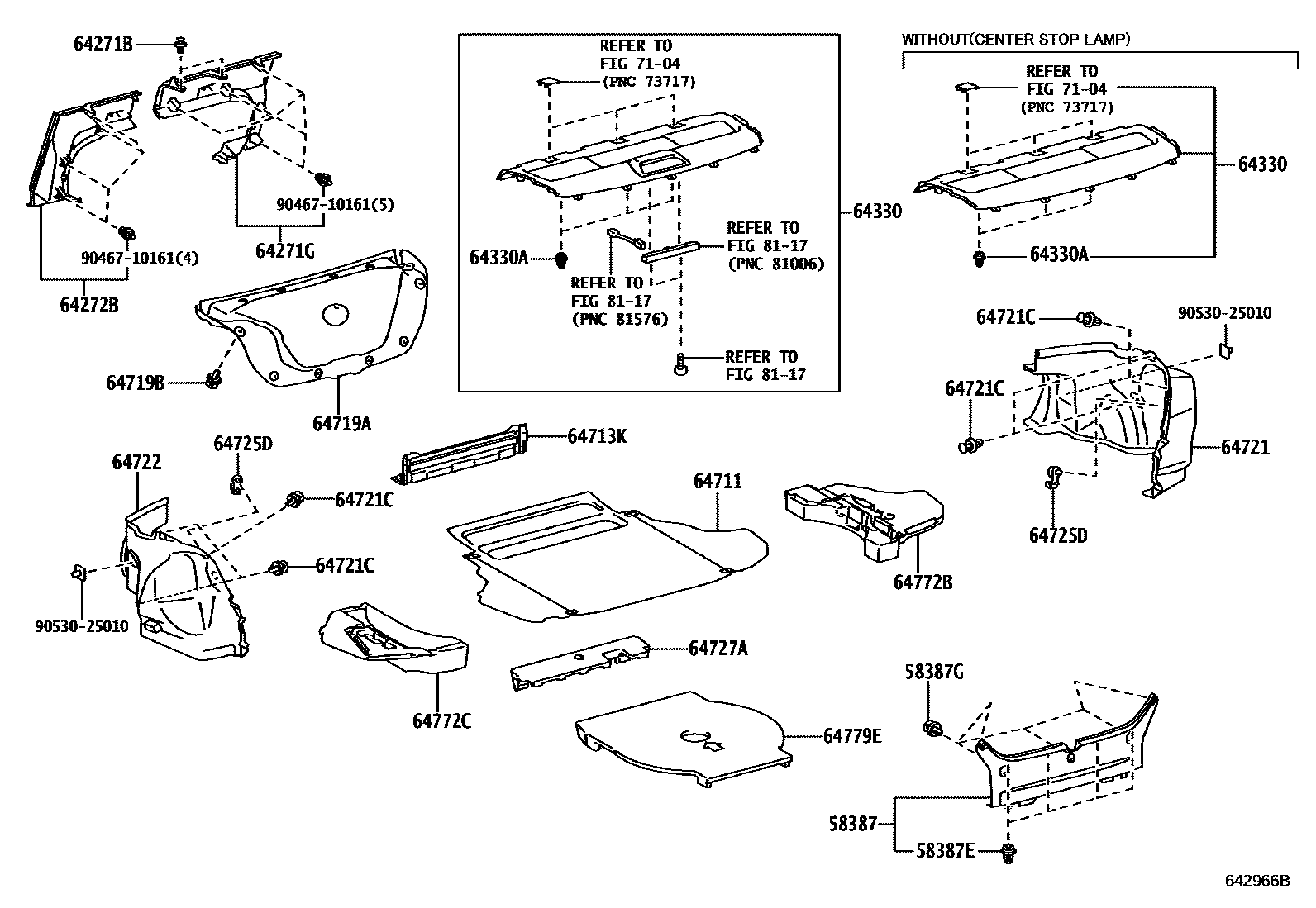

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
sub58387-06171
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
64271BCLIP(FOR ROOM PARTITION BOARD)
REAR SEAT-6:4 FOLDING
64271GBOARD, ROOM PARTITION, RH
REAR SEAT-6:4 FOLDING
64272BBOARD, ROOM PARTITION, LH
REAR SEAT-6:4 FOLDING
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,1#
BLACK,TRIM0#,2#
SUN SHADE-REAR WINDOW(POWER),BLACK,TRIM0#
BLACK,TRIM2#
THAILAND SPEC&SUN SHADE-REAR WINDOW(POWER)&AUDIO-RADIO LESS, 6SPEAKER,BLACK,TRIM2#
BLACK,TRIM0#,1#
BLACK,TRIM0#,2#
SUN SHADE-REAR WINDOW(POWER),BLACK,TRIM0#,1#
SUN SHADE-REAR WINDOW(POWER),BLACK,TRIM0#
WIRELESS DOOR LOCK-W(SMART ENTRY)&SUN SHADE-REAR WINDOW(POWER),BLACK,TRIM0#,1#
BLACK,TRIM0#
WIRELESS DOOR LOCK-W(SMART ENTRY)&SUN SHADE-REAR WINDOW(POWER),BLACK,TRIM0#
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)&AUDIO-DISPLAY 6SPEAKER BLUETOOTH,BLACK,TRIM0#,1#
BLACK,TRIM0#
BLACK,TRIM2#
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE),BLACK,TRIM1#,2#
BLACK,TRIM0#
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE)&AUDIO-DISPLAY 6SPEAKER BLUETOOTH,BLACK,TRIM0#
REAR SPOILER-WITH(LUGGAGE COMPARTMENT DOOR=WING TYPE),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
LIMITED PACKAGE&SUN SHADE-REAR WINDOW(POWER)&AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING,BLACK,TRIM0#,2#
SUN SHADE-REAR WINDOW(POWER)&AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING,BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#
BLACK,TRIM0#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
THAILAND SPEC&SUN SHADE-REAR WINDOW(POWER)&AUDIO-RADIO LESS, 6SPEAKER
main90467-10161iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,GLX,HBD,SE,SPVS,TOU)201110-201504
LIMITED PACKAGE&SUN SHADE-REAR WINDOW(POWER)&AUDIO-AVN 8SPEAKER DIGITAL AUDIO BROADCASTING
main90467-10161iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,GLX,HBD,SE,SPVS,TOU)201110-201504
SUN SHADE-REAR WINDOW(POWER)
LIMITED PACKAGE
WIRELESS DOOR LOCK-W(SMART ENTRY)&SUN SHADE-REAR WINDOW(POWER)
LIMITED PACKAGE&SUN SHADE-REAR WINDOW(POWER)&AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING
SUN SHADE-REAR WINDOW(POWER)&AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM2#
REAR SEAT-6:4 FOLDING,BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#
REAR SEAT-6:4 FOLDING,BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM2#
BLACK,TRIM0#,1#
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,1#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM0#,1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#
BLACK,TRIM0#
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#
BLACK,TRIM0#,1#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#
BLACK,TRIM0#,1#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM0#,1#,2#
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
REAR SEAT-6:4 FOLDING
64772BPAD, SPARE WHEEL COVER
64772CPAD, SPARE WHEEL COVER
64779ETRAY, SPARE WHEEL COVER
7104
8117
9046710161
main90467-10161
9053025010
main90530-25010
24 parts on this diagram · 5 diagrams in section
