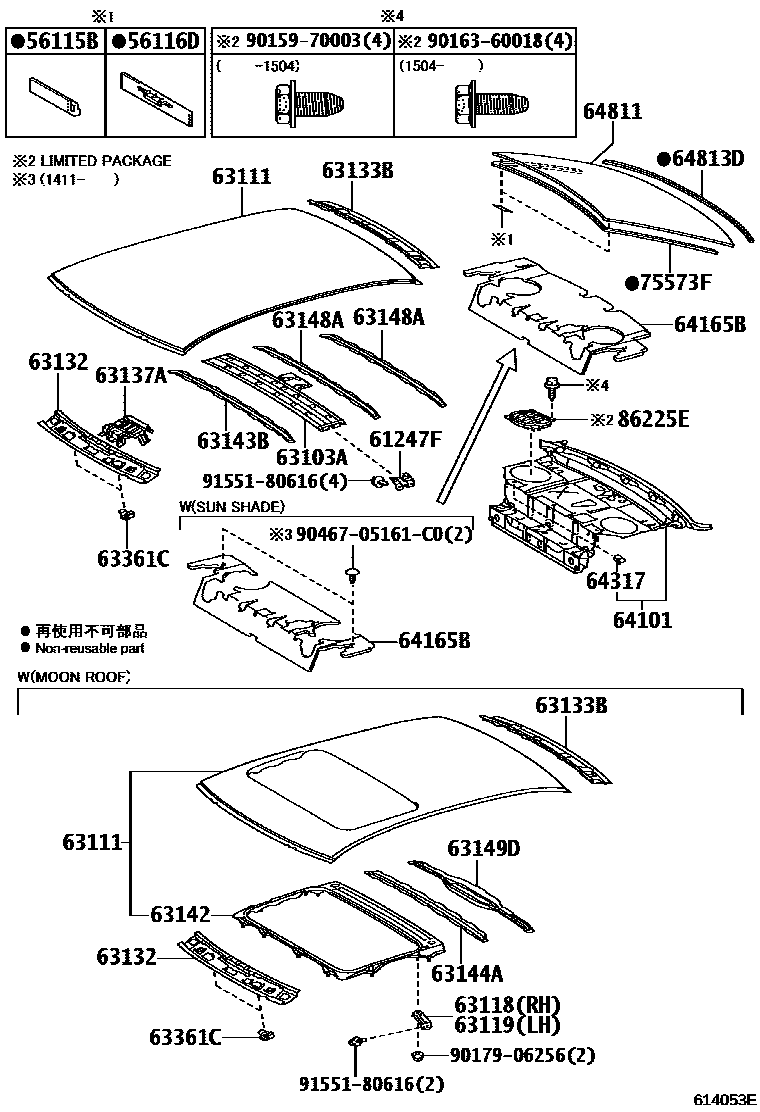

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iASV50,AVV50,GSV50201110-201504

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iASV50..6F201110-201504

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-33040iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITHOUT

main61247-33040iASV50..SE201504-201605

MOON ROOF-W/O

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-06090iASV50..6F..(GLX,SE)201110-201504

MOON ROOF-WITHOUT

sub63103-06080

main63103-06090iASV50..SE201504-201605

MOON ROOF-W/O

sub63103-06080

63111PANEL, ROOF

main63111-06470iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,HBD,SPVS,TOU)201110-201504

MOON ROOF-WITHOUT

sub63111-33320

main63111-06470iASV50,AVV50,GSV50..ALT,ATRS,ATRSX,ATX,GL,HBD,SPVS,TOU201504-201605

MOON ROOF-W/O

sub63111-33320

main63111-06915iASV50..6F..(GLX,SE)201110-201605

sub63111-33330

main63111-06915iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITH

sub63111-33330

main63111-06915iASV50..GLX;GSV50..GD,PRD,SE201504

MOON ROOF-WITH(TILT & SLIDE)

sub63111-33330

63118SUPPORT, ROOF PANEL, RH

main63118-33050iASV50..6F..(GLX,SE)201110-201605

main63118-33050iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITH

main63118-33050iASV50..GLX;GSV50..GD,PRD,SE201504

MOON ROOF-WITH(TILT & SLIDE)

63119SUPPORT, ROOF PANEL, LH

main63118-33050iASV50..6F..(GLX,SE)201110-201605

main63118-33050iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITH

main63118-33050iASV50..GLX;GSV50..GD,PRD,SE201504

MOON ROOF-WITH(TILT & SLIDE)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-33100iASV50..6F201110-201605

63133BFRAME, BACK WINDOW

main63133-06110iASV50..6F201110-201605

sub63133-33120

63137ABRACKET, DOME LAMP, NO.1

main63137-06090iASV50..6F..GL201110-201504

MOON ROOF-WITHOUT

main63137-06090iASV50..SE201504-201605

MOON ROOF-W/O

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33090iASV50..GLX;GSV50..GD,PRD,SE201504

MOON ROOF-WITH(TILT & SLIDE)

main63142-33090iASV50..6F..(GLX,SE)201110-201605

main63142-33090iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33100iASV50..6F..GL201110-201504

MOON ROOF-WITHOUT

main63143-33100iASV50..SE201504-201605

MOON ROOF-W/O

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33170iASV50..6F..(GLX,SE)201110-201605

main63144-33170iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITH

main63144-33170iASV50..GLX;GSV50..GD,PRD,SE201504

MOON ROOF-WITH(TILT & SLIDE)

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33050iASV50..6F..GL201110-201504

MOON ROOF-WITHOUT

main63148-33050iASV50..SE201504-201605

MOON ROOF-W/O

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-33030iASV50..6F..(GLX,SE)201110-201605

main63149-33030iASV50,GSV50..6FC..(GD,GLX,PRD,SE)201110-201504

MOON ROOF-WITH

main63149-33030iASV50..GLX;GSV50..GD,PRD,SE201504

MOON ROOF-WITH(TILT & SLIDE)

63361CSUPPORT, ROOF HEADLINING

main63361-06050iASV50..6F201110-201605

64101PANEL SUB-ASSY, UPPER BACK

main64101-06290iASV50..6F201110-201605

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06240iASV50,AVV50,GSV50..(ATM,CVT)..(ALT,ATRS,ATRSX,ATX,GL,GLX,HBD,SE,SPVS,TOU)201110-201605

main64165-06280iGSV50..SE;ASV50..6FC..GLX201110-201504

SUN SHADE-REAR WINDOW(POWER)

main64165-06280iGSV50..SE;ASV50..6FC..GLX201110-201504

LIMITED PACKAGE

main64165-06280iASV50..ATRSX201605

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

main64165-06280iGSV50..GD,PRD201202-201504

main64165-06280iASV50..ATRSX201504-201605

THAILAND SPEC

main64165-06280iASV50..ATRSX201504-201605

WIRELESS DOOR LOCK-W(SMART ENTRY)

64317REINFORCEMENT, SEAT BELT ANCHORAGE TO PACKAGE TRAY

main64317-12040iASV50..SE201110-201605

64811GLASS, BACK WINDOW

main64811-06270iASV50..ATRSX201504

THAILAND SPEC

main64811-06310iGSV50..PRD201504

main64811-06310iASV50..6F201110-201504

*EHT,T=3.5,GREEN

main64811-06310iGSV50..SPVS201504-201610

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

main64811-06310iASV50,AVV50..ATRS,HBD201610

AUDIO-AVN 6SP/BT DAB

main64811-06311iASV50,GSV50..ALT,ATX,GD,GL,GLX,SE,TOU201504-201610

main64811-06311iAVV50201610

AUDIO-*DA(CD & *BT) & 6SPEAKER

main64811-06311iASV50..ATRS201610

AUDIO-DA-DLX/CD/BT-6SP

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iASV50..6F201110-201504

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-06090iASV50,AVV50,GSV50..ATM,CVT201110-201504

sub75573-33070

86225ECOVER, SPEAKER, RH

main86225-33010iASV50,GSV50..ATRSX,SPVS201605

AUDIO-AVN,8SPEAKER,DIGITAL AUDIO BROADCASTING

main86225-33010iASV50..ATRSX201605

THAILAND SPEC

main86225-33010iASV50,AVV50,GSV50..ATRS,HBD,PRD,SPVS201110-201610

LIMITED PACKAGE

main86225-33010iGSV50..SPVS201504-201605

SEAT COVER MATERIAL-LEATHER 2

9015970003

main90159-70003

9016360018

main90163-60018

9017906256

main90179-06256

9046705161C0

main90467-05161C0

9155180616

main91551-80616

28 parts on this diagram · 2 diagrams in section
