SIDE MEMBER

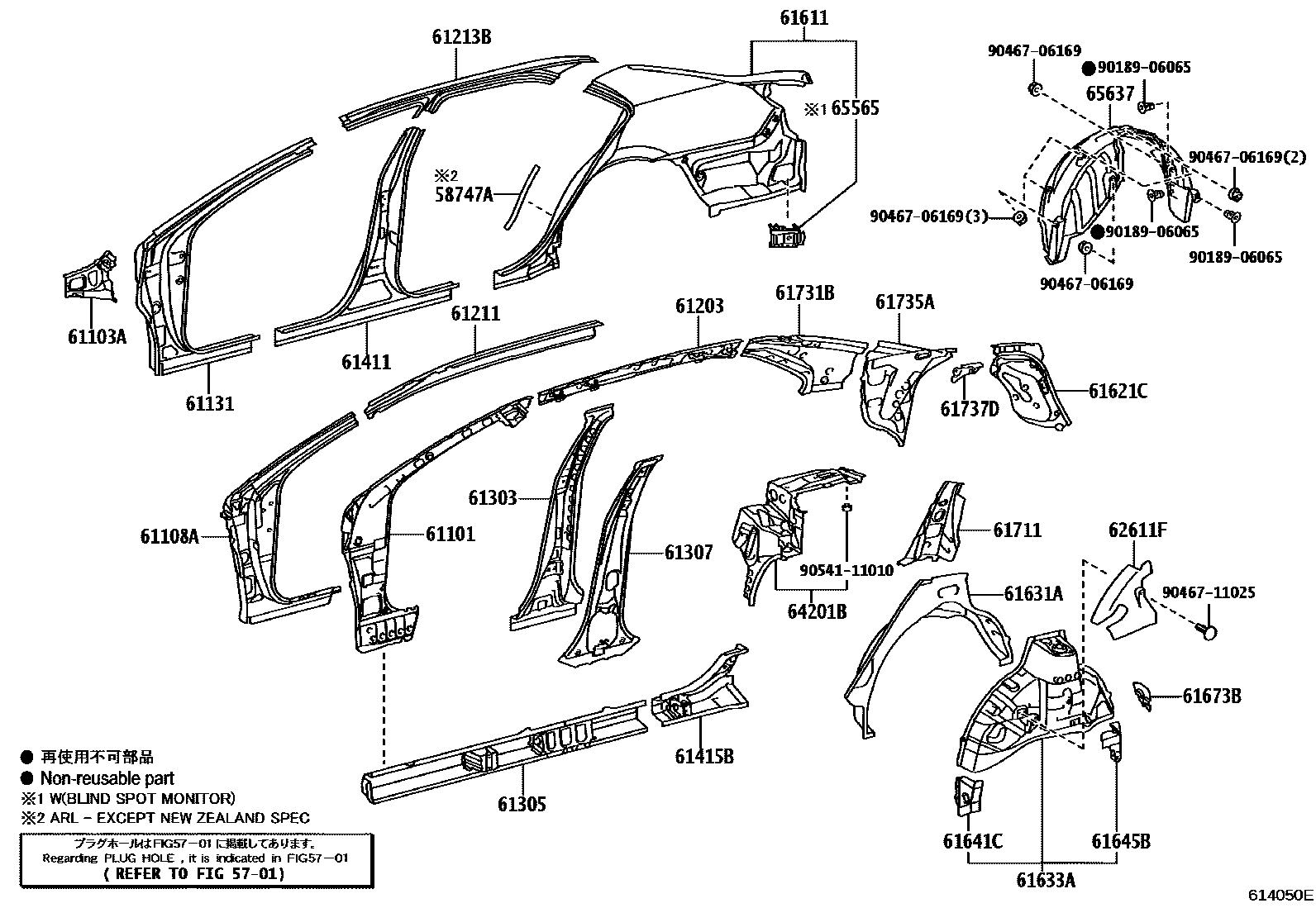

Parts diagram
5701
58747APROTECTOR, QUARTER PANEL, REAR RH
main58747-06080i201110-201504
NEW ZEALAND SPEC
sub58747-33060
main58747-06110i201504
NEW ZEALAND SPEC
sub58747-06100
61101PANEL SUB-ASSY, COWL SIDE, RH
main61101-06161i201110-201710
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
main61103-06030i201110-201605
sub61103-33060
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-06110i201110-201609
sub61108-33180
main61108-33180i201609
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-06100i201110-201609
sub61131-33070
main61131-06170i201504-201609
sub61131-33070
main61131-33070i201609
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
main61203-06140i201110-201710
61211RAIL, ROOF SIDE, OUTER RH
main61201-06080i201110-201605
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
main61213-06100i201110-201609
sub61213-33100
main61213-06140i201609
main61213-06150i201504-201609
sub61213-06140
main61213-33100i201609
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
main61303-06090i201110-201609
sub61303-33070
main61303-33070i201609
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
main61305-06100i201110-201609
sub61305-33070
main61305-33070i201609
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
main61307-06100i201110-201710
sub61307-33080
61411PANEL, ROCKER, OUTER RH
main61411-06160i201110-201609
sub61411-33040
main61411-06200i201504-201609
sub61411-33040
main61411-33040i201609
61415BEXTENSION, ROCKER, OUTER RH
main61415-06903i201110-201605
sub61415-33070
61611PANEL, QUARTER, RH
main61601-06190i201110-201504
sub61601-33350
main61601-06230i201504-201605
sub61601-06100
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-06909i201110-201504
sub61697-06902
main61621-06911i201504-201605
sub61621-06130
sub58331-06110
sub61627-06030
sub61697-06160
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-06120i201110-201504
sub61631-33100
main61631-06170i201504-201605
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61633-06906i201110-201605
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-06090i201110-201605
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-06090i201110-201605
sub61645-06110
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
main61673-06060i201110-201605
61711PANEL, ROOF SIDE, OUTER RH
main61711-06110i201110-201605
sub61711-33100
61731BPANEL, ROOF SIDE, INNER RH
main61731-06140i201110-201605
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-06110i201110-201605
sub61735-33100
61737DREINFORCEMENT, ROOF SIDE, INNER RH
main61737-06030i201110-201404
main61737-06060i201404-201605
62611FINSULATOR, QUARTER WHEEL HOUSE, RH
main62611-06100i201110-201602
sub62611-33050
main62611-06100i201602-201604
(L)
sub62611-33050
main62611-33050i201602-201604
(J)
main62611-33050i201604
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
main64201-06130i201110-201605
sub64201-33071
65565PATCH, SIDE PANEL REAR END, RH
main65565-33040i201504
65637LINER, REAR WHEEL HOUSE, RH
main65637-06071i201110-201504
sub65637-33050
main65637-06131i201110-201504
main65637-06140i201504-201703
sub65637-33090
main65637-33090i201703
9018906065
main90189-06065
9046706169
main90467-06169
9046711025
main90467-11025
9054111010
main90541-11010

33 parts on this diagram · 2 diagrams in section
