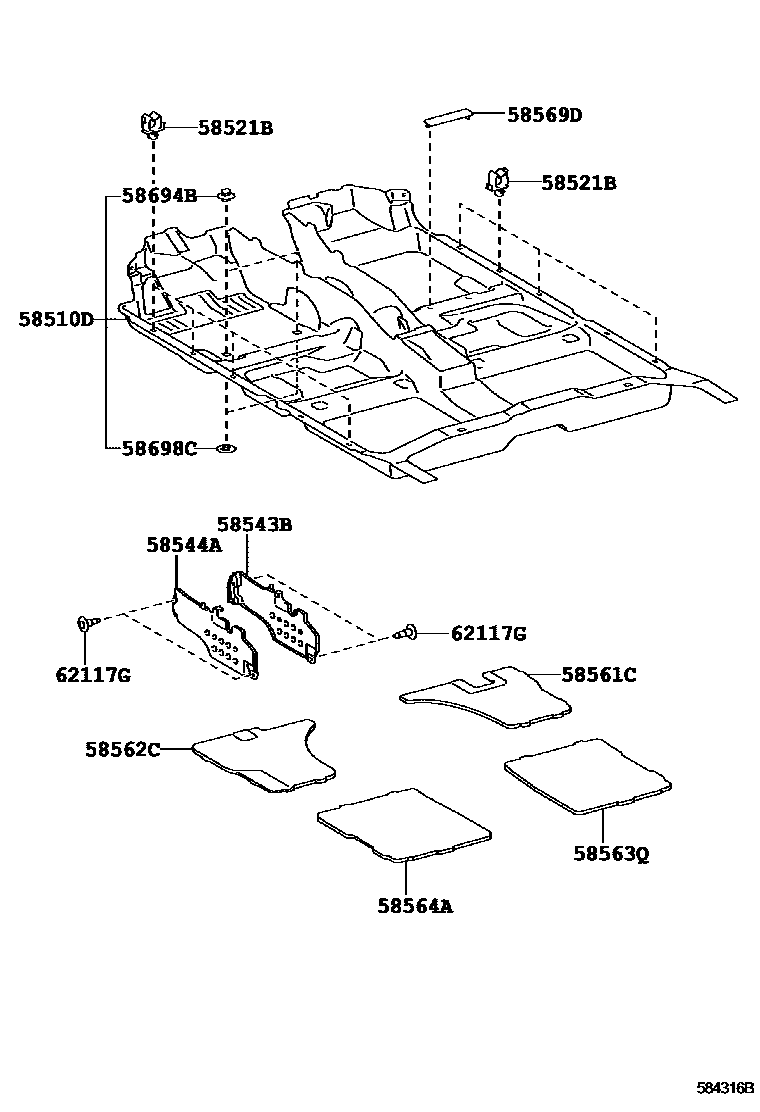

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM00
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM00,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
IVORY,TRIM0#
GRAY,TRIM1#
58521BHOOK, FLOOR CARPET
DOOR SCUFF PLATE-WITH OUT
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58569DCOVER, FRONT FLOOR CAUTION PLATE
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
12 parts on this diagram · 2 diagrams in section
