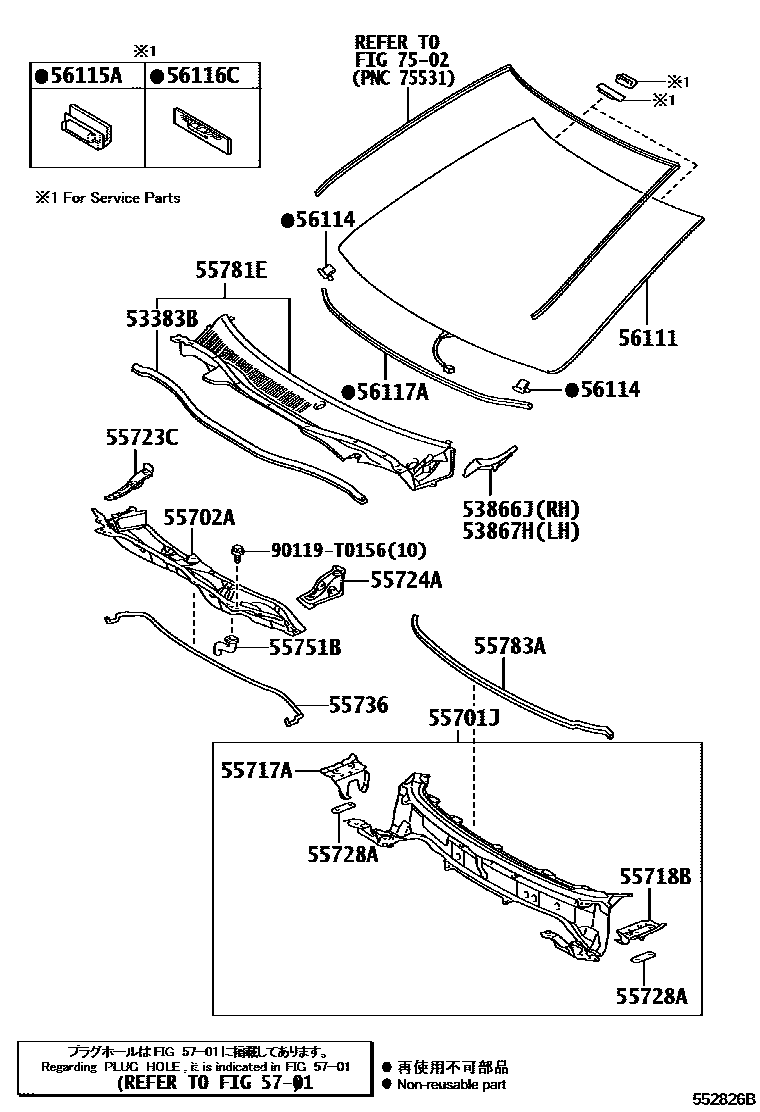

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55724AREINFORCEMENT, COWL TOP SIDE, LH
sub55724-33070
55728AREINFORCEMENT, HOOD STOPPER
55736SEAL, WATER GUARD PLATE
55751BHOSE, COWL WATER EXTRACT, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
LIMITED PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
sub56101-06988
sub56101-06987
*LAM,T=4.56,GREEN
sub56101-06986
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1358
*D,L=1358,LIMITED PACKAGE&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)
5701
7502
90119T0156
22 parts on this diagram · 2 diagrams in section
