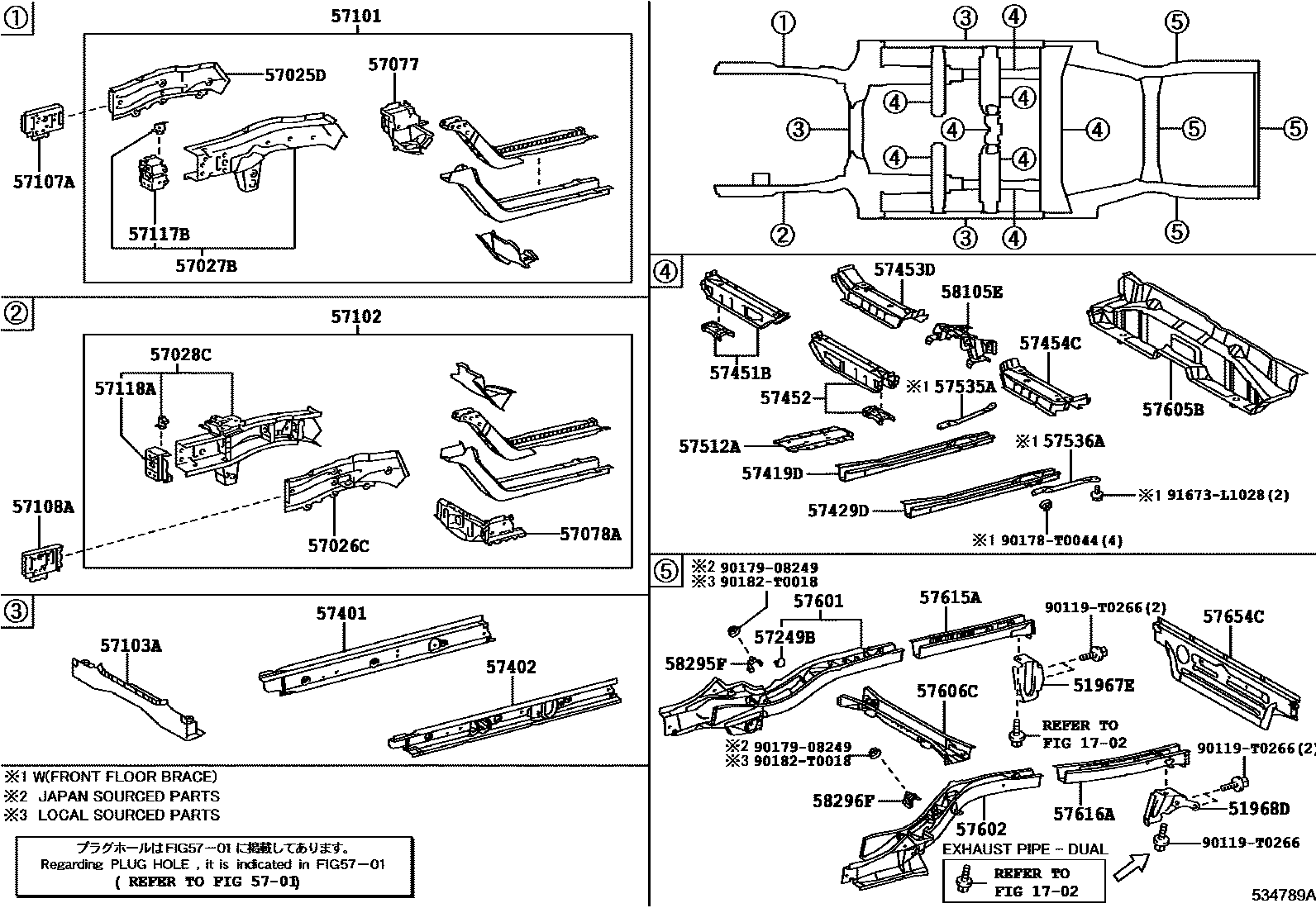

FLOOR SIDE MEMBER

0001 1 0002 1

1702

51967EHOOK, TRANSPORT, REAR RH

main51967-06030iASV50,GSV50..6FC..GCC201110-201504

PAPUA NEW GUINEA/FIJI SPEC

sub51967-33030

main51967-06030iASV50,GSV50..6FC..GCC201110-201504

NEW ZEALAND SPEC

sub51967-33030

main51967-06030iASV50..6F201110-201605

sub51967-33030

main51967-06030iASV50..ALT201405-201504

NEW ZEALAND SPEC&RZ PACKAGE

sub51967-33030

main51967-06030iGSV50..GCC;ASV50..GL,GLX201504

THAILAND SPEC

sub51967-33030

51968DHOOK, TRANSPORT, REAR LH

main51968-06040iASV50..6F201110-201605

sub51968-33020

main51968-06040iASV50,GSV50..6FC..GCC201110-201504

PAPUA NEW GUINEA/FIJI SPEC

sub51968-33020

main51968-06040iASV50,GSV50..6FC..GCC201110-201504

NEW ZEALAND SPEC

sub51968-33020

main51968-06040iASV50..ALT201405-201504

NEW ZEALAND SPEC&RZ PACKAGE

sub51968-33020

main51968-06040iGSV50..GCC;ASV50..GL,GLX201504

THAILAND SPEC

sub51968-33020

5701

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-06070iASV50..6F201110-201605

sub57025-33020

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-06070iASV50..6F201110-201605

sub57026-33020

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-06031iASV50..SE201110-201605

sub57027-33011

57028CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-06111iASV50..6F201110-201605

sub57028-33051

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-06070iASV50..6F201110-201605

sub57077-33040

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-06070iASV50..6F201110-201605

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06181iASV50,AVV50,GSV50201110-201710

sub57027-33011

sub57025-33020

sub57031-33011

sub57043-06020

sub57077-33040

sub57191-33010

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06221iASV50,AVV50,GSV50201110-201710

sub57102-33904

sub57017-33042

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06120iAVV50201201-201710

main57103-06130iASV50,GSV50201110-201710

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06031iASV50,AVV50,GSV50201110-201710

sub57107-33032

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06021iASV50,AVV50,GSV50201110-201710

sub57108-33032

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33050iASV50..6F201110-201605

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33050iASV50..6F201110-201605

57249BBRACKET, FLEXIBLE HOSE, NO.1

main57249-33010iASV50,AVV50,GSV50201110-201605

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-06221iASV50,AVV50,GSV50201110-201710

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-06211iASV50,AVV50,GSV50201110-201710

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06080iASV50..6F201110-201605

sub57419-06040

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-06050iASV50..6F201110-201605

sub57429-06020

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-06905iASV50..6F201110-201605

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-06905iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

57453DMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-06070iASV50..6F201110-201605

57454CMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-06070iASV50..6F201110-201605

57512AREINFORCEMENT, FRONT FLOOR, RH

main57512-06010iASV50,AVV50,GSV50..ARL201110-201504

57535ABRACE, FRONT FLOOR, RH

main57535-06010iASV50,GSV50..ATRS,PRD201504

SE PACKAGE

main57535-06010iASV50..SE201504-201605

main57535-06010iASV50..ATRSX;GSV50..SE,SPVS201504

SUSPENSION-SPORTS

main57535-06020iASV50..6F..SE201110-201504

main57535-06020iASV50..ALT201405-201504

RZ PACKAGE

57536ABRACE, FRONT FLOOR, LH

main57536-06010iASV50..ATRSX;GSV50..SE,SPVS201504

SUSPENSION-SPORTS

main57536-06010iASV50..ATRSX;GSV50..SE,SPVS201504

SE PACKAGE

main57536-06010iASV50..SE201504-201605

main57536-06020iASV50..ALT201405-201504

RZ PACKAGE

main57536-06020iASV50..6F..SE201110-201504

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06906iASV50..SE201110-201605

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06902iASV50..SE201110-201605

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06150iASV50,AVV50,GSV50..ATM,CVT201110-201609

sub57605-33110

main57605-33110iASV50,AVV50,GSV50201609

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06090iASV50..6F201110-201605

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06922iGSV50;ASV50..ALT,ATRS,ATRSX,GL,GLX201110-201605

sub57615-33921

sub58327-33050

sub90119-06992

main57615-06923iAVV50201201-201504

sub57615-33921

sub58327-33050

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06918iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201404-201605

sub57616-33914

sub58328-33010

sub91631-J0612

main57616-06923iASV50..6F201110-201404

sub57616-33914

sub58328-33010

sub91631-J0612

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06050iASV50..6F201110-201605

sub57654-06040

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06041iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

sub58105-33020

58295FBASE, BELT ANCHOR TO FLOOR PAN, NO.4 RH

main58295-33010iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201605

58296FBASE, BELT ANCHOR TO FLOOR PAN, NO.4 LH

main58296-33010iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201605

90119T0266

main90119-T0266

90178T0044

main90178-T0044

9017908249

main90179-08249

90182T0018

main90182-T0018

91673L1028

main91673-L1028

44 parts on this diagram · 2 diagrams in section
