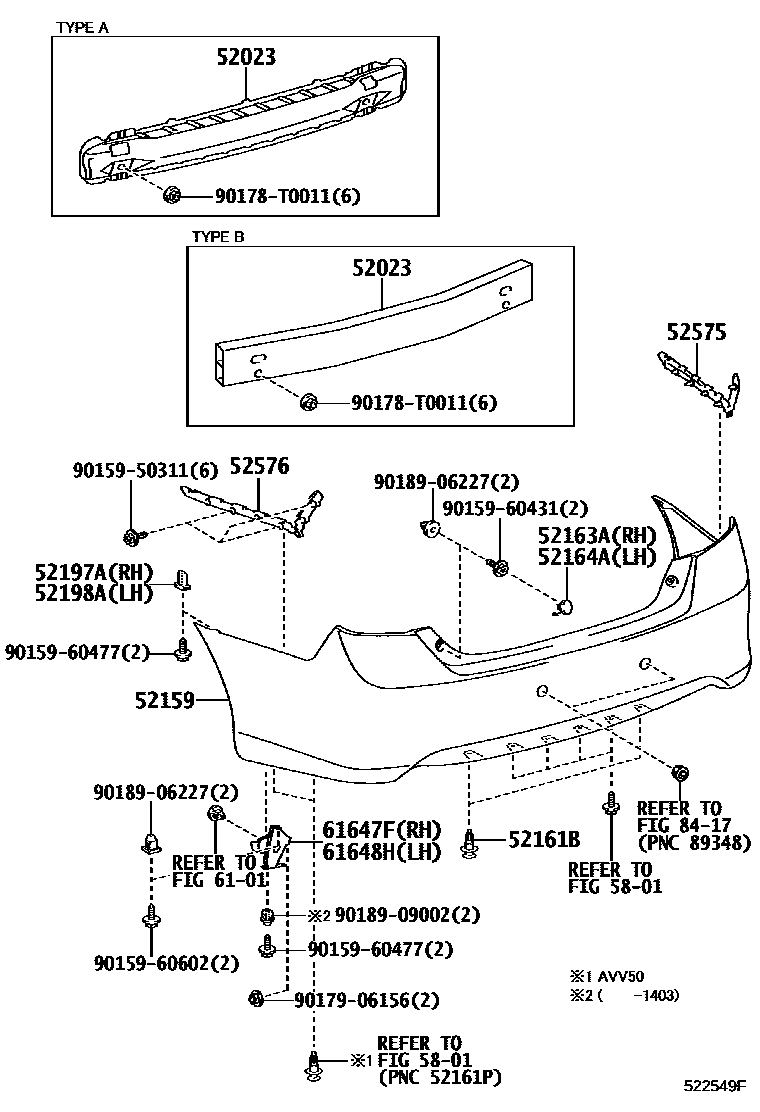

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-06130iASV50,AVV50..ATRS,ATRSX,HBD201110-201504

TYPE A:REFER ILLUST.

main52023-06130iASV50,AVV50..ATRS,ATRSX,HBD201605

SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN SHIELD),TYPE A:REFER ILLUST.

main52023-06130iASV50..ATRSX201504-201605

THAILAND SPEC,TYPE A:REFER ILLUST.

main52023-06130iASV50..ATRSX201504-201605

LIMITED PACKAGE,TYPE A:REFER ILLUST.

main52171-06150iASV50,GSV50..ALT,GL,GLX,TOU201304-201605

TYPE B:REFER ILLUST.

main52171-06150iASV50,AVV50..ATRS,HBD201605

DECONTENT PACKAGE,TYPE B:REFER ILLUST.

52159COVER, REAR BUMPER

main52159-06964iASV50..6F..(GL,GLX)201110-201504

PAINT REQ.

main52159-06966iASV50..6F..SE201110-201504

PAINT REQ.

main52159-06966iASV50..ALT201405-201504

PAINT REQ.,RZ PACKAGE&REAR SPOILER-WITH(LUGGAGE=LIP TYPE(BLACK))

main52159-06968iGSV50201202-201710

PAINT REQ.

main52159-0X908iASV50..SE201504-201605

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iASV50..6F201110-201605

sub52161-0K040

52163APLATE, REAR BUMPER, RH

main52163-06909iASV50..6F201110-201605

52164APLATE, REAR BUMPER, LH

main52164-06909iASV50..6F201110-201605

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iASV50,AVV50,GSV50..ATM,CVT201110-201605

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-22020iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

52575RETAINER, REAR BUMPER SIDE, RH

main52575-06100iASV50..6F201110-201504

main52575-06150iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

52576RETAINER, REAR BUMPER SIDE, LH

main52576-06100iGSV50201110-201504

main52576-06150iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

5801

6101

61647FREINFORCEMENT, WHEEL HOUSE, RH

main52155-06010iGSV50201403-201710

main52155-06020iASV50,AVV50201504-201710

main61647-06070iASV50,AVV50,GSV50201110-201403

sub61647-33070

61648HREINFORCEMENT, WHEEL HOUSE, LH

main52156-06010iASV50,AVV50,GSV50201403-201504

main52156-06020iASV50..SE201504-201605

main61648-06070iASV50..6F201110-201403

sub61648-33070

8417

9015950311

main90159-50311

9015960431

main90159-60431

9015960477

main90159-60477

9015960602

main90159-60602

90178T0011

main90178-T0011

9017906156

main90179-06156

9018906227

main90189-06227

9018909002

main90189-09002

22 parts on this diagram · 3 diagrams in section
