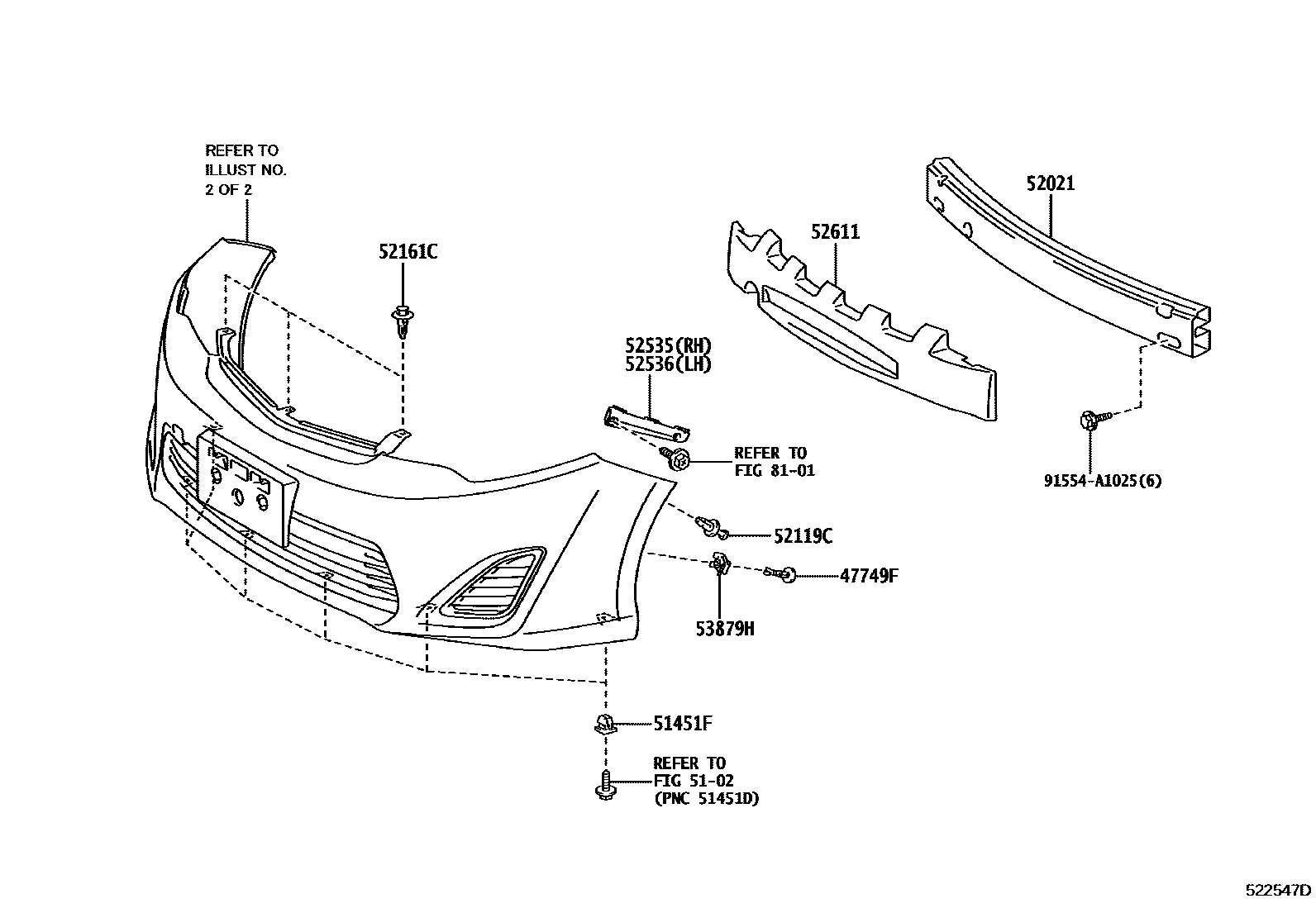

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0007 1 0009 1RZ PACKAGE 0010 1RZ PACKAGE 0011 1 0012 1 0013 1 0014 1

47749FCLIP, PIN HOLD

main47749-50090iASV50,AVV50,GSV50201110-201710

5102

51451FGROMMET, NO.1

main90189-06193iASV50,AVV50201110-201710

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06110iASV50,AVV50,GSV50..ATM,CVT201110-201311

sub52021-06111

main52021-06111iASV50..SE201312-201605

52119CCLIP, FRONT BUMPER COVER

main90467-05090-B1iASV50,AVV50,GSV50201110-201710

DK.GRAY

sub90467-05090

52161CPIECE, FRONT BUMPER

main52161-16010iGSV50201110-201504

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06140iASV50,AVV50..ATM,CVT201110-201504

main52535-06180iGSV50201202-201504

main52535-06200iASV50..SE201504-201605

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06130iASV50,AVV50..ATM,CVT201110-201504

main52536-06170iGSV50201202-201504

main52536-06200iASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201504-201605

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06250iASV50..6F..GL201110-201504

main52611-06260iASV50..6FC..(ATRS,ATRSX,SE)201110-201504

main52611-06350iGSV50201202-201504

main52611-06430iASV50..SE201504-201605

53879HRETAINER, FRONT FENDER LINER

main53879-30040iASV50,AVV50,GSV50201110-201710

8101

91554A1025

main91554-A1025

12 parts on this diagram · 10 diagrams in section
