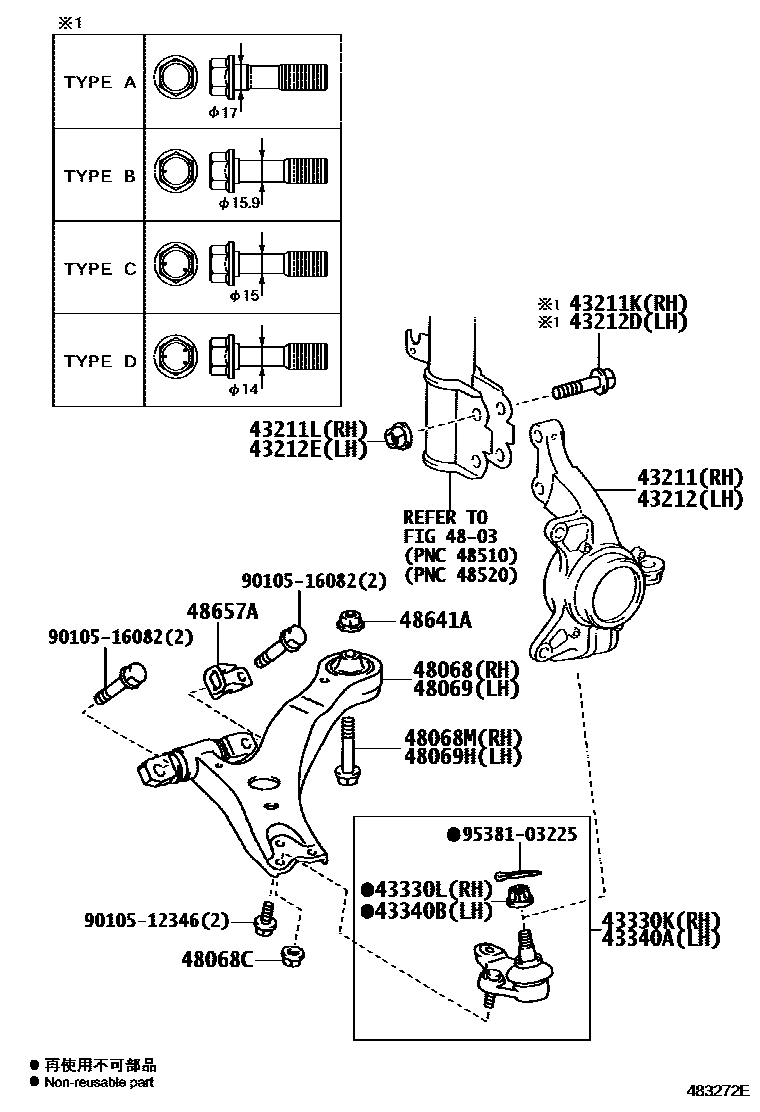

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-06220iASV50..SE201110-201605

sub43211-58010

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

OD=17,TYPE A:REFER ILLUST.

main90105-17013iASV50..SE201110-201605

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iASV50..SE201110-201605

OD=15,TYPE C:REFER ILLUST.

main90105-17015iASV50,AVV50,GSV50..ATM,CVT201110-201605

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iASV50..6F201110-201605

43212KNUCKLE, STEERING, LH

main43212-06220iASV50..6F201110-201605

sub43212-58010

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iASV50..6F201110-201605

OD=17,TYPE A:REFER ILLUST.

main90105-17013iASV50..6F201110-201605

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iASV50..SE201110-201605

OD=15,TYPE C:REFER ILLUST.

main90105-17015iGSV50;ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD201110-201605

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iASV50..6F201110-201605

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39845iASV50..6F201110-201605

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iASV50..6F201110-201605

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39605iASV50..6F201110-201605

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iASV50..6F201110-201605

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33070iASV50..6F201110-201510

main48068-33070iGSV50..ATX,GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,GL,GLX,HBD201504

THAILAND SPEC

main48068-33080iASV50,GSV50..ATRSX,SPVS201504

SE PACKAGE

main48068-33080iASV50,GSV50..ATRSX,SPVS201504

SUSPENSION-SPORTS

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12015iASV50..6F201110-201510

main90178-12015iGSV50..ATX,GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,GL,GLX,HBD201504

THAILAND SPEC

main90178-12024iASV50,GSV50..ATRSX,SPVS201504

SE PACKAGE

main90178-12024iASV50,GSV50..ATRSX,SPVS201504

SUSPENSION-SPORTS

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14146iASV50..6F201110-201510

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33070iASV50..6F201110-201510

main48069-33070iGSV50..ATX,GD,PRD,SE,TOU;ASV50,AVV50..ALT,ATRS,GL,GLX,HBD201504

THAILAND SPEC

main48069-33080iASV50,GSV50..ATRSX,SPVS201504

SE PACKAGE

main48069-33080iASV50,GSV50..ATRSX,SPVS201504

SUSPENSION-SPORTS

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14146iASV50..6F201110-201510

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iASV50..6F201110-201510

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06020iASV50..6F201110-201510

9010512346

main90105-12346

9010516082

main90105-16082

9538103225

main95381-03225

21 parts on this diagram · 1 diagram in section
