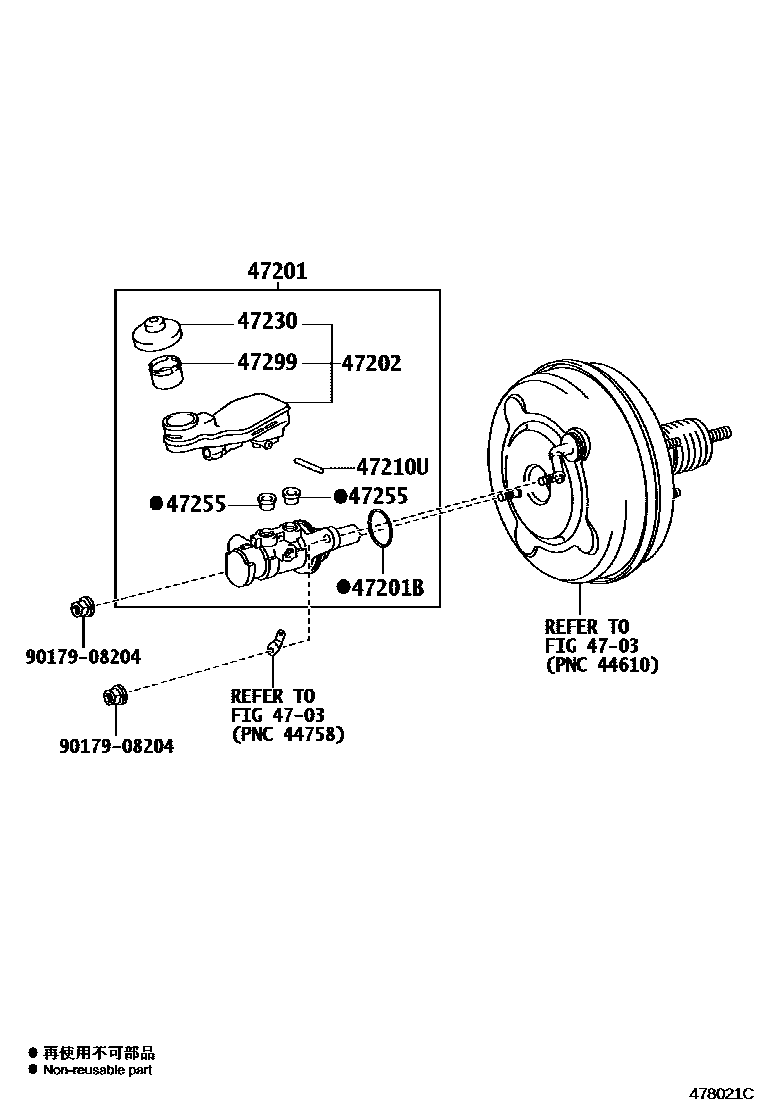

BRAKE MASTER CYLINDER

0001 1 0003 1 0005 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33550iASV50,GSV50..ARL201110-201209

sub47201-33551

main47201-33551iASV50,GSV50..ARL201210-201307

sub47201-33552

main47201-33552iASV50,GSV50..ARL201308-201601

sub47201-33553

main47201-33553iASV50,GSV50..ARL201602

main47201-33570iASV50..6FC..GCC201110-201201

sub47201-33630

main47201-33580iASV50..6F201110-201211

sub47201-33581

main47201-33620iASV50..6FC..(GLX,SE)201202-201304

VSC-WITH

sub47201-33621

main47201-33621iASV50..GLX,SE201305-201601

VSC-WITH

sub47201-33622

main47201-33622iGSV50..GCC201602

main47201-33630iASV50..6FC..GCC201202-201304

sub47201-33631

main47201-33631iASV50..GCC201305-201605

sub47201-33632

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iASV50,GSV50201110-201504

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33230iASV50,GSV50..ARL201110-201308

sub47220-33231

main47220-33231iASV50,GSV50..ARL201308-201504

main47220-33240iASV50..6FC..GCC201110-201202

VSC-WITH

sub47220-33300

main47220-33250iASV50..6F201110-201201

sub47220-33310

main47220-33300iGSV50..GCC201202-201504

main47220-33300iASV50..6FC..GCC201202-201305

VSC-WITH

main47220-33310iASV50..6F201202-201211

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iASV50,GSV50201110-201504

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAVV50201201-201504

main47230-33071iASV50..6FC..GCC201110-201411

sub47230-33072

main47230-33072iASV50,GSV50..ARL201411-201504

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iASV50;GSV50..ARL201110-201504

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iASV50..6F201110-201504

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
