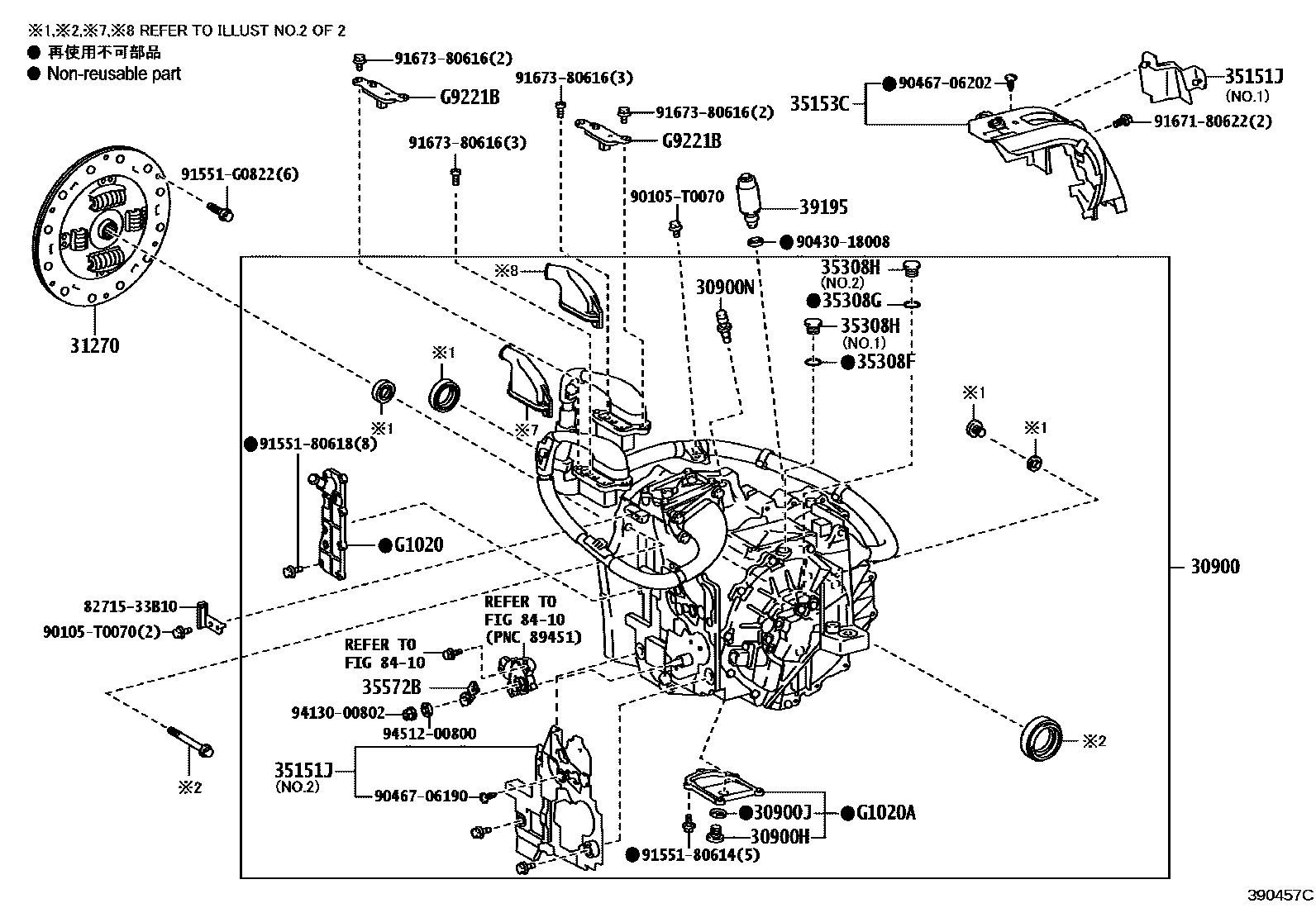

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
31270DAMPER ASSY, TRANSMISSION INPUT
35151JCOVER, AUTOMATIC TRANSMISSION CASE
NO.1
NO.2
35153CCOVER, AUTOMATIC TRANSMISSION CASE, NO.3
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
NO.2
NO.1
35572BLEVER, TRANSMISSION, OUTER
39195DAMPER, HV TRANSAXLE MASS
8410
G1020COVER ASSY, MOTOR WATER JACKET, NO.1
G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2
G9221BCOVER, INVERTER, UPRPER
8271533B10BRACKET,WIRING HARNESS CLAMP
90105T0070
main90105-T0070
9043018008
9046706190
9046706202
9155180614
9155180618
91551G0822
9167180622
9167380616
9413000802
9451200800
28 parts on this diagram · 5 diagrams in section
