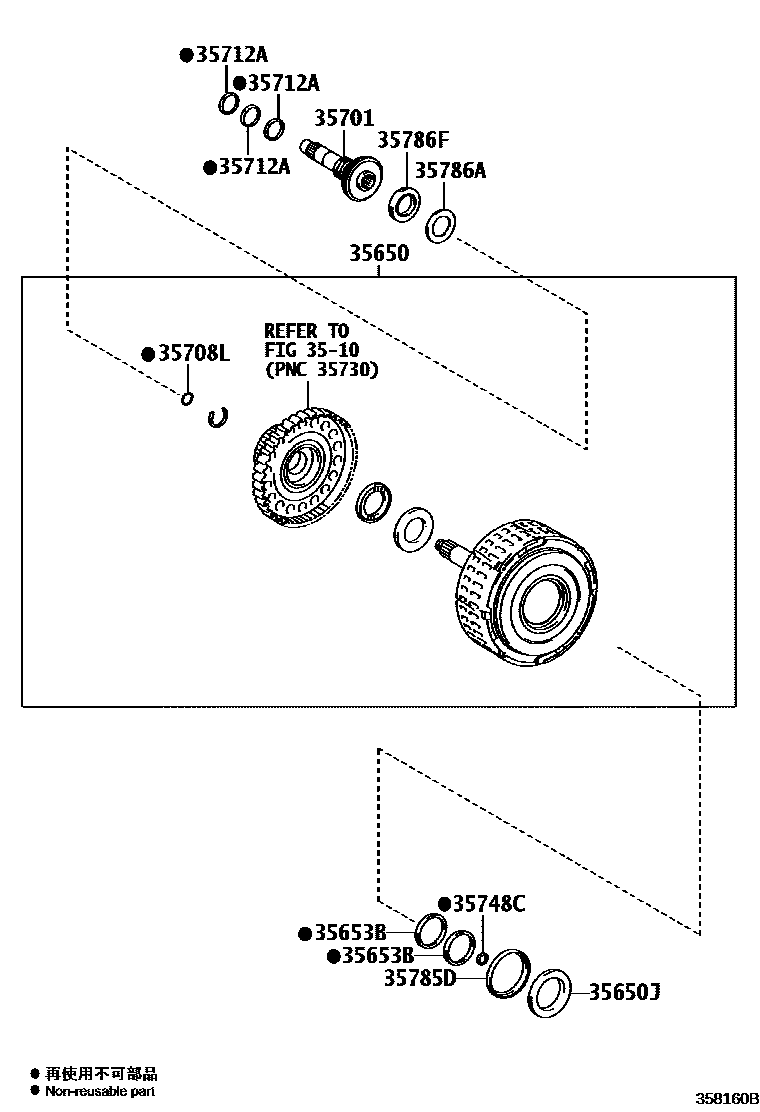

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U760E 0002 1U660E

3510

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-33070iGSV50201202-201504

main35650-33090iASV50201110-201504

*285

main35650-73020iASV50201110-201504

*284

sub35650-33090

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iASV50,GSV50..6FC201110-201310

sub90374-48009

main90374-48009iASV50,GSV50201310-201605

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010iASV50..SE201110-201605

35701SHAFT SUB-ASSY, INPUT

main35711-33060iGSV50201202-201504

main35711-33080iASV50201110-201504

*285

main35711-33090iASV50201110-201504

*284

sub35711-33080

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11032iASV50,GSV50..6FC201110-201605

35712ARING, INPUT SHAFT OIL SEAL

main35712-33010iASV50..6FC201110-201504

*285,*284

sub35712-33020

main35712-33010iGSV50201202-201707

sub35712-33020

main35712-33010iASV50201504-201706

*285

sub35712-33020

main35712-33020iGSV50201707

*285,*284

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASV50..SE201110-201605

35785DRACE, THRUST BEARING, NO.4

main35785-33020iASV50,GSV50..6FC201110-201310

sub35785-48020

main35785-48020iASV50,GSV50201310-201605

35786ARACE, THRUST BEARING, NO.1

main35786-33010iASV50..SE201110-201605

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iASV50..6FC201110-201504

main90374-29007iASV50201401-201605

11 parts on this diagram · 2 diagrams in section
