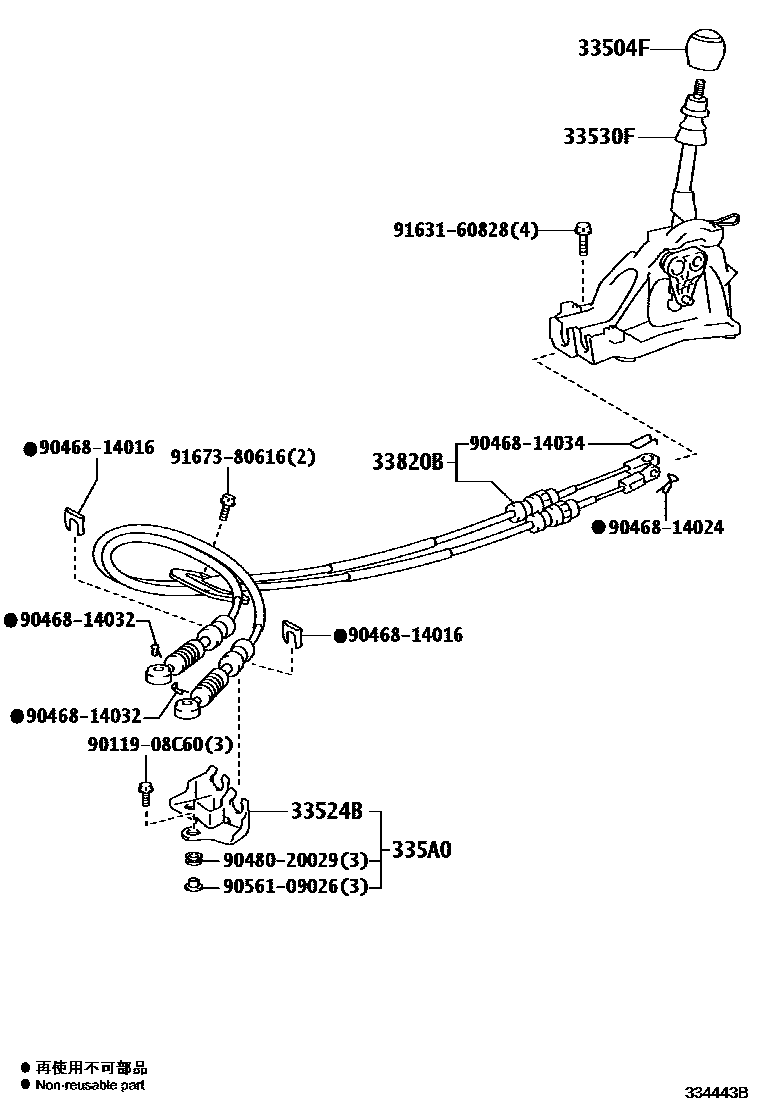

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06220-C1iAVV50,GSV50..HBD,PRD201201-201504

BLACK,TRIM0#,2#

sub33504-06300

main33504-06220-C1iASV50..ATRS201605-201710

RZ PACKAGE,BLACK,TRIM2#

sub33504-06300

main33504-06220-C1iAVV50201209-201710

DECONTENT PACKAGE,BLACK,TRIM2#

sub33504-06300

main33504-06220-C1iAVV50201110-201710

BLACK,TRIM2#

sub33504-06300

main33504-06220-C1iAVV50201110-201710

BLACK,TRIM0#,1#,2#

sub33504-06300

main33504-06220-C1iGSV50..TOU201504-201605

BLACK,TRIM0#

sub33504-06300

main33504-06220-C1iGSV50..TOU201202-201504

BLACK,TRIM0#,1#

sub33504-06300

main33504-06220-C1iGSV50..TOU201202-201504

BLACK,TRIM1#,2#

sub33504-06300

main33504-06300-B0iASV50,GSV50..SE201307-201504

MD.SILVER & BLACK,TRIM00,20

sub33504-33121

main33504-06300-B0iASV50..ATRS201307-201710

MD.SILVER & BLACK,TRIM2#

sub33504-33121

main33504-06300-B0iASV50..ATRS201307-201710

MD.SILVER & BLACK,TRIM0#

sub33504-33121

main33504-06300-B0iASV50..ATRS201307-201504

LIMITED PACKAGE,MD.SILVER & BLACK,TRIM0#,2#

sub33504-33121

main33504-06300-B0iASV50..ALT201405-201504

RZ PACKAGE,MD.SILVER & BLACK,TRIM2#

sub33504-33121

main33504-06300-B0iASV50..ALT201405-201504

GL SP PACKAGE,MD.SILVER & BLACK,TRIM0#,1#

sub33504-33121

main33504-06300-B0iASV50..GLX201504-201710

MD.SILVER & BLACK,TRIM00,10

sub33504-33121

main33504-06300-B0iASV50..GLX201504-201710

MD.SILVER & BLACK,TRIM0#,2#

sub33504-33121

main33504-06300-B0iASV50..GLX201504-201710

GL SP PACKAGE,MD.SILVER & BLACK,TRIM00,10

sub33504-33121

main33504-06300-B1iAVV50201201-201307

LIMITED PACKAGE,LT.SILVER,TRIM0#,2#

sub33504-33121

main33504-06300-B2iASV50,GSV50..ATRSX,SPVS201110-201307

DK.SILVER,TRIM00,20

sub33504-33121

main33504-06300-B2iASV50,GSV50..ATRSX,SPVS201110-201307

DK.SILVER,TRIM2#

sub33504-33121

main33504-06300-B2iASV50,GSV50..ATRSX,SPVS201110-201307

DK.SILVER,TRIM0#

sub33504-33121

main33504-06300-C1iGSV50..PRD201504-201710

BLACK WOOD & BLACK,TRIM0#,2#

sub33504-33121

main33504-06300-C1iGSV50..PRD201504-201710

GL SP PACKAGE,BLACK WOOD & BLACK,TRIM00,10

sub33504-33121

main33504-06300-C1iASV50..GL201504-201710

BLACK WOOD & BLACK,TRIM00,10

sub33504-33121

main33504-06300-C1iASV50..GL201504-201710

BLACK WOOD & BLACK,TRIM0#,1#

sub33504-33121

main33504-06300-E0iASV50,GSV50..6FC..(GD,GLX)201110-201504

BROWN,TRIM00,20

sub33504-33121

main33504-06300-E0iASV50,GSV50..6FC..(GD,GLX)201110-201504

BROWN,TRIM0#,1#

sub33504-33121

main33504-06300-E0iGSV50..PRD201202-201504

LIMITED PACKAGE,BROWN,TRIM0#,2#

sub33504-33121

main33504-12320-C0iASV50..6F..GL201110-201211

BLACK,TRIM0#,1#

sub33504-12320

sub33504-33100

main33504-12330-C0iASV50..6F..GLX201110-201211

BLACK,TRIM0#,1#

sub33504-12330

main33504-12330-C0iASV50..6F..SE201110-201211

BLACK,TRIM0#

sub33504-12330

33524BBRACKET, CONTROL CABLE

main33524-33040iASV50..6F201110-201211

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-33150iASV50..6F201110-201211

335A0BRACKET ASSY, CONTROL CABLE

main335A0-33010iASV50..6F201110-201211

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06420iASV50..6F201110-201211

main33820-06430iASV50..SE201110-201605

main33820-06440iAVV50201201-201302

sub33820-06441

main33820-06441iAVV50201303-201504

9011908C60

main90119-08C60

9046814016

main90468-14016

9046814024

main90468-14024

9046814032

main90468-14032

9046814034

main90468-14034

9048020029

main90480-20029

9056109026

main90561-09026

9163160828

main91631-60828

9167380616

main91673-80616

14 parts on this diagram · 3 diagrams in section
