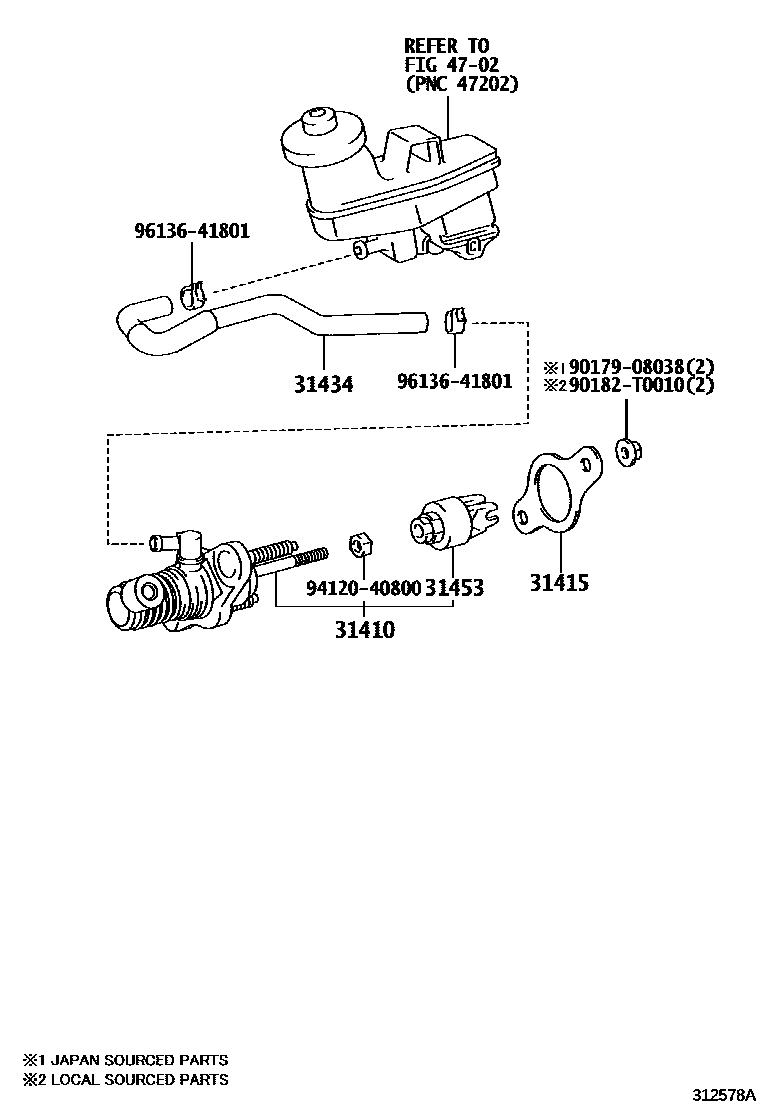

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-33030iASV50..6F201110-201211

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iASV50..6F201110-201211

31434TUBE, CLUTCH RESERVOIR

main31434-33080iASV50..6F201110-201211

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-52010iASV50..6F201110-201211

4702

9017908038

main90179-08038

90182T0010

main90182-T0010

9412040800

main94120-40800

9613641801

main96136-41801

9 parts on this diagram · 1 diagram in section
