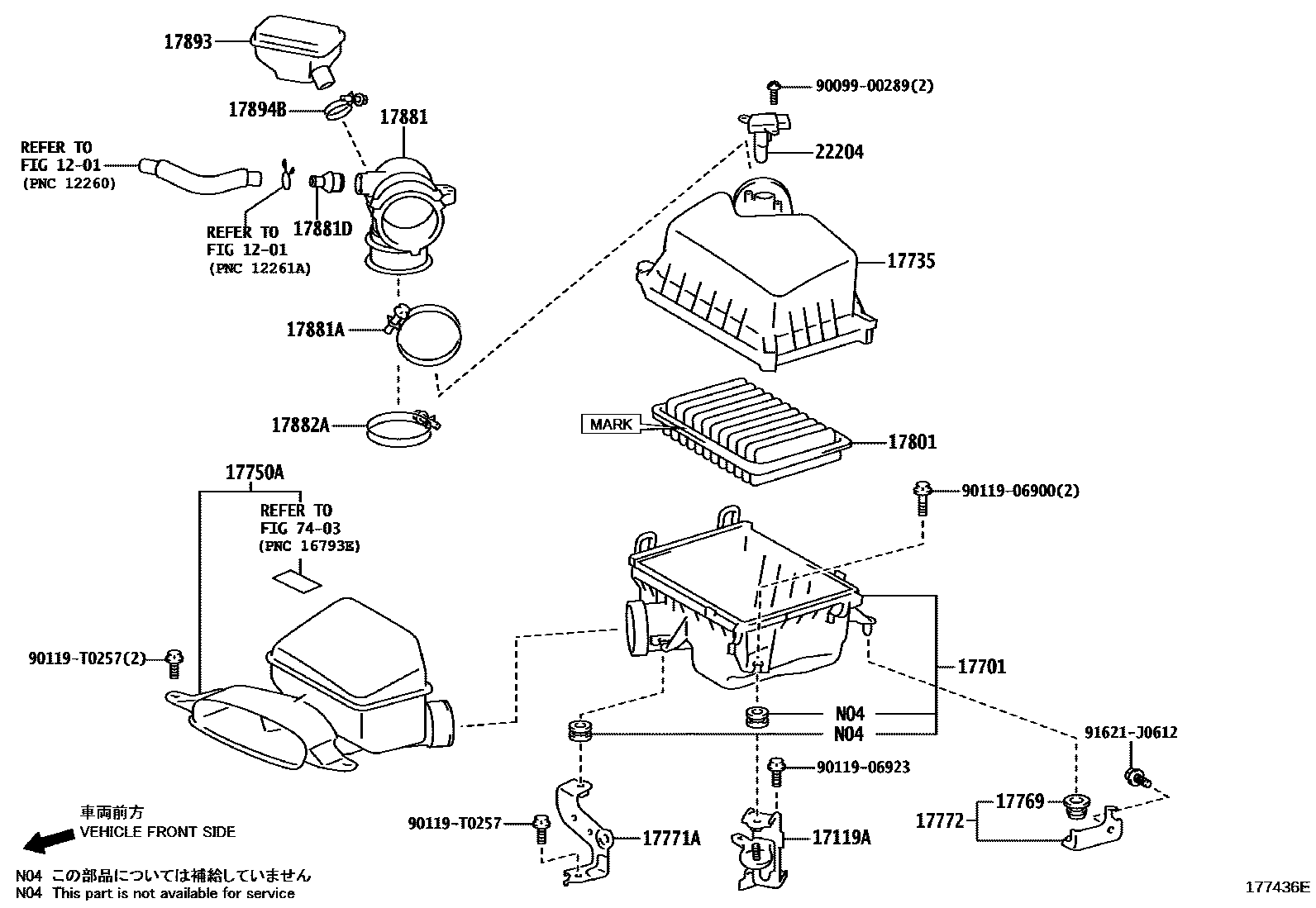

AIR CLEANER

0001 1 0002 1 0003 1

1201

17119ABRACKET, AIR CLEANER

main17119-0V040i2ARFE..ASV50..ALT,ATRS,ATRSX,GL,GLX201110-201605

sub17119-36010

main17119-0V050i2ARFXE..AVV50201201-201504

sub17119-36020¥380

17701CASE SUB-ASSY, AIR CLEANER

main17701-0P110i2GRFE..GSV50201202-201504

sub17700-31A00

main17701-0V040i2ARFE..ASV50..SE201110-201605

sub17700-36230¥20,800

main17701-0V050i2ARFXE..AVV50201201-201504

17735CAP, AIR CLEANER

main17735-0P110i2GRFE..GSV50201202-201504

sub17705-31400

main17735-0V040i2ARFE..ASV50..6FC201110-201605

sub17735-0V080

main17735-0V050i2ARFXE..AVV50201201-201504

sub17735-0V090

17750AINLET ASSY, AIR CLEANER

main17750-0V050i2ARFE..ASV50..6F201110-201604

sub17750-0V051

main17750-0V051i2ARFE..ASV50..ALT,ATRS,ATRSX,GL,GLX201605

main17750-0V060i2ARFXE..AVV50201201-201504

17769SUPPORT, AIR CLEANER

main90480-18006i2ARFE..ASV50..6F¥130201110-201605

17771ABRACKET, AIR CLEANER

main17771-0V030i2GRFE..GSV50201110-201605

sub17771-36030

main17771-0V040i2ARFXE..AVV50201201-201504

sub17771-36040¥610

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-0V030i2ARFE..ASV50..6F201110-201605

sub17772-0V010

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H030i2ARFE..ASV50..SE201110-201605

MARK 17801-0H030

main17801-28030i2ARFE..ASV50..6F¥3,570201110-201605

MARK 17801-28030

main17801-31131i2GRFE..GSV50¥3,500201202-201504

MARK 17801-0H030

main17801-38011i2ARFXE..AVV50¥3,000201201-201504

17881HOSE, AIR CLEANER, NO.1

main17881-0P140i2GRFE..GSV50201202-201504

main17881-0V100i2ARFE..ASV50..6F201110-201605

main17881-0V110i2ARFXE..AVV50201201-201504

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10880i2AR#..ASV50,AVV50..ATM,CVT¥520201110-201605

main96111-10900i2GRFE..GSV50¥410201202-201504

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥340201110-201605

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ARFXE..AVV50¥320201201-201504

main96111-10850i2ARFE..ASV50..SE¥240201110-201605

17893RESONATOR, INTAKE AIR

main17893-0P130i2GRFE..GSV50201202-201504

main17893-0V080i2ARFE..ASV50..6FC201110-201605

main17893-0V090i2ARFXE..AVV50201201-201504

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10430i2ARFE..ASV50..6F¥120201110-201605

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V020i2GRFE..GSV50¥16,500201110-201605

(L)

main22204-28010i2GRFE..GSV50¥12,400201110-201605

(J)

7403

9009900289

main90099-00289¥60

9011906900

main90119-06900¥80

9011906923

main90119-06923¥60

90119T0257

main90119-T0257

91621J0612

main91621-J0612¥70

22 parts on this diagram · 3 diagrams in section
