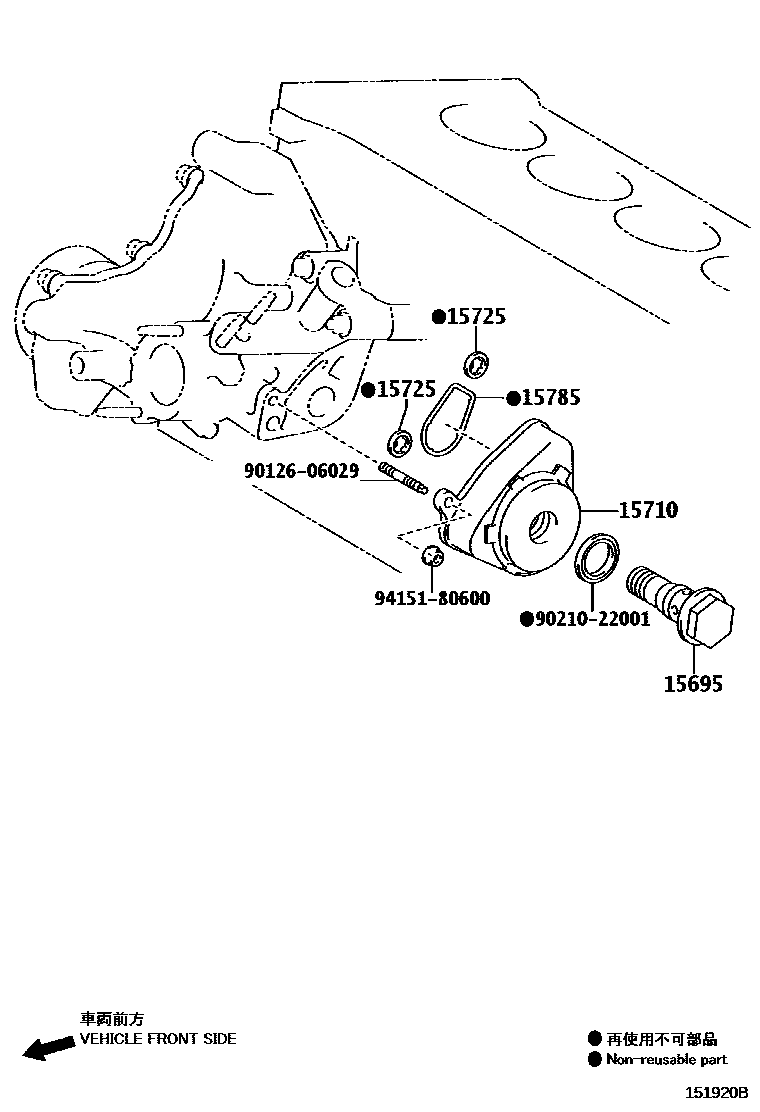

ENGINE OIL COOLER

0001 1 0002 1

15695BOLT, OIL COOLER UNION

main15695-31010i2GRFE..GSV50¥1,360201202-201504

main15695-62030i2ARFE..ASV50..ARL¥1,170201212-201504

*286

main15695-62030i2ARFE..ASV50..6F¥1,170201110-201501

*107

15710COOLER ASSY, OIL

main15710-31021i2GRFE..GSV50201202-201504

main15710-36010i2ARFE..ASV50..6F¥32,900201110-201501

*107

main15710-36010i2ARFE..ASV50..ARL¥32,900201212-201504

*286

15725GASKET, OIL COOLER COVER

main15725-36010i2ARFE..ASV50..6F¥380201110-201501

*107

main15725-36010i2ARFE..ASV50..ARL¥380201212-201504

*286

15785GASKET, OIL COOLER

main15785-31010i2GRFE..GSV50¥370201202-201504

main15785-36010i2ARFE..ASV50..ARL¥380201212-201504

*286

main15785-36010i2ARFE..ASV50..6F¥380201110-201501

*107

9012606029

main90126-06029¥60

9021022001

main90210-22001

9415180600

main94151-80600¥60

7 parts on this diagram · 2 diagrams in section
