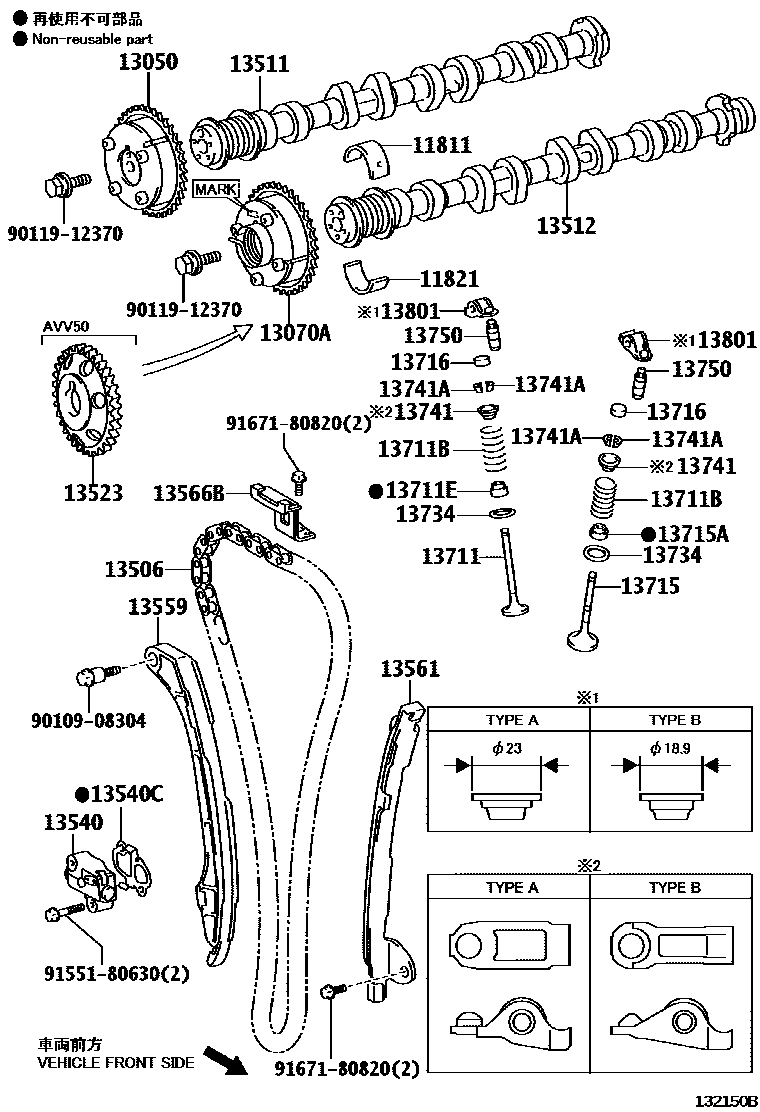

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
*286
*107
*107,*286
11821BEARING, CAMSHAFT, NO.2
*107
*286
*107,*286
13050GEAR ASSY, CAMSHAFT TIMING
*286
*107
*107
*286
*286
*107
*107,*286
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*107,MARK13070-36011
*286
*107,MARK13070-36030
*107,MARK13070-36030,*286
13506CHAIN SUB-ASSY
*286
*107
*107
13523GEAR OR SPROCKET, CAMSHAFT TIMING
*107
*286
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
*107
*286
*107,*286
13559SLIPPER, CHAIN TENSIONER
*286
*107
*107
13561DAMPER, CHAIN VIBRATION, NO.1
*286
*107
*107
13566BGUIDE, TIMING CHAIN
*286
*107
13711BSPRING, COMPRESSION(FOR INNER)
PNC 13801=TYPE B
*107PNC 13741=TYPE A
*286
*107PNC 13741=TYPE B
PNC 13801=TYPE A
13711ESEAL, INTAKE VALVE STEM OIL
*107,*286
*107
*286
13715VALVE, EXHAUST
*286
(L),*286
*107
(J),*286
*107,(J),*286
13715ASEAL, EXHAUST VALVE STEM OIL
*107
*286
*107,*286
13716CAP, VALVE STEM
*107
*286
*107,*286
13734SEAT, VALVE SPRING
*107
*286
*107,*286
13741RETAINER, VALVE SPRING
*286
*107T/P A:REF.ILLUST
PNC 13801=TYPE A
*107T/P B:REF.ILLUST
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
*286
*107
*107,*286
13750ADJUSTER ASSY, VALVE LASH
*107PNC 13801=TYPE A
*107PNC 13801=TYPE B
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*286
TYPE A:REFER ILLUST.
*107T/P A:REF.ILLUST
*107T/P B:REF.ILLUST
TYPE B:REFER ILLUST.
9010908304
main90109-08304
9011912370
main90119-12370
9155180630
main91551-80630
9167180820
main91671-80820
28 parts on this diagram · 3 diagrams in section
