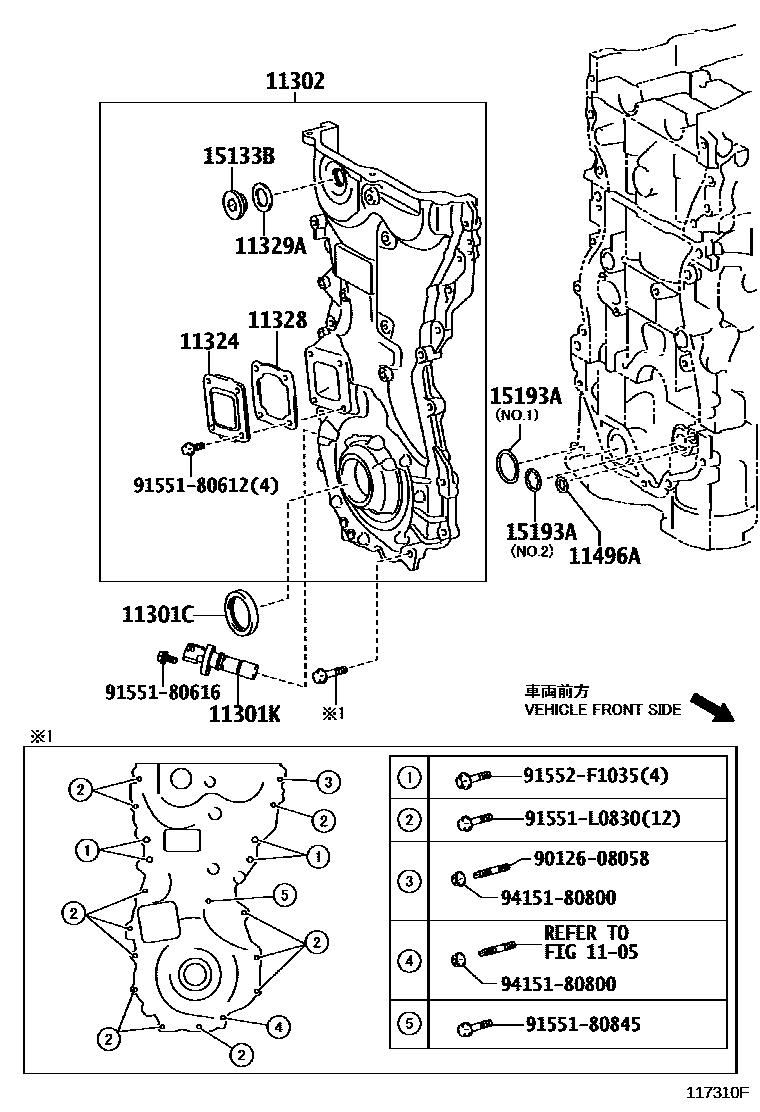

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥400201408-201504

*107

sub90311-42061¥400

main90311-40042i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥400201408-201504

*286

sub90311-42061¥400

main90311-40042i2ARFE..ASV50..SE¥400201504-201605

*107,*286

sub90311-42061¥400

main90311-42043i2AR#..ASV50,AVV50¥400201212-201312

*286

sub90311-42051¥400

main90311-42043i2AR#..ASV50,AVV50..ATM,CVT¥400201110-201312

*107

sub90311-42051¥400

main90311-42045i2GRFE..GSV50¥520201202-201504

main90311-42051i2AR#..ASV50,AVV50¥400201312-201407

*286

main90311-42051i2AR#..ASV50,AVV50¥400201312-201408

*107

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFE..ASV50..GL,GLX¥3,870201110-201504

*107

main90919-05070i2AR#..ASV50,AVV50¥3,870201212-201504

*286

main90919-05070i2ARFE..ASV50..SE¥3,870201504-201605

*107,*286

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0V060i2AR#..ASV50,AVV50201212-201605

*286

main11310-31020i2GRFE..GSV50¥33,300201202-201504

main11310-36020i2AR#..ASV50,AVV50..ARL¥19,700201201-201605

*107

main11310-36040i2ARFE..ASV50¥28,400201110-201201

*107

sub11310-36020¥19,700

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFE..GSV50¥660201202-201504

main11324-36010i2ARFE..ASV50..6FC..GCC¥660201110-201504

*107

main11324-36010i2AR#..ASV50,AVV50¥660201212-201504

*286

main11324-36010i2ARFE..ASV50..SE¥660201504-201605

*107,*286

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFE..GSV50¥400201202-201504

main11328-36020i2ARFE..ASV50..GL,GLX¥460201110-201504

*107

main11328-36020i2AR#..ASV50,AVV50¥460201212-201504

*286

main11328-36020i2ARFE..ASV50..SE¥460201504-201605

*107,*286

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36010i2AR#..ASV50,AVV50..ARL¥360201110-201502

*107

sub11329-36020¥220

main11329-36010i2AR#..ASV50,AVV50¥360201212-201502

*286

sub11329-36020¥220

main11329-36020i2AR#..ASV50,AVV50¥220201503-201504

*107

main11329-36020i2AR#..ASV50,AVV50¥220201503-201504

*286

main11329-36020i2ARFE..ASV50..SE¥220201504-201605

*107,*286

11496AGASKET, OIL HOLE COVER

main11496-36010i2AR#..ASV50,AVV50¥340201212-201504

*286

main11496-36010i2ARFE..ASV50..6F¥340201110-201504

*107

main11496-36010i2ARFE..ASV50..SE¥340201504-201605

*107,*286

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i2ARFE..ASV50..GCC¥260201110-201710

*107

main15133-36020i2AR#..ASV50,AVV50¥260201212-201710

*286

15193AGASKET, OIL PUMP

main15193-36010i2ARFE..ASV50..GL,GLX¥340201212-201504

*286,NO.1

main15193-36010i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥340201110-201504

*107,NO.1

main15193-36010i2ARFE..ASV50..SE¥340201504-201605

*107,NO.1,*286,NO.1

main15197-36010i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥340201212-201504

*286,NO.2

main15197-36010i2ARFE..ASV50..6F¥340201110-201504

*107,NO.2

main15197-36010i2ARFE..ASV50..SE¥340201504-201605

*107,NO.2,*286,NO.2

9012608058

main90126-08058¥80

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180845

main91551-80845¥110

91551L0830

main91551-L0830¥80

91552F1035

main91552-F1035¥120

9415180800

main94151-80800¥80
