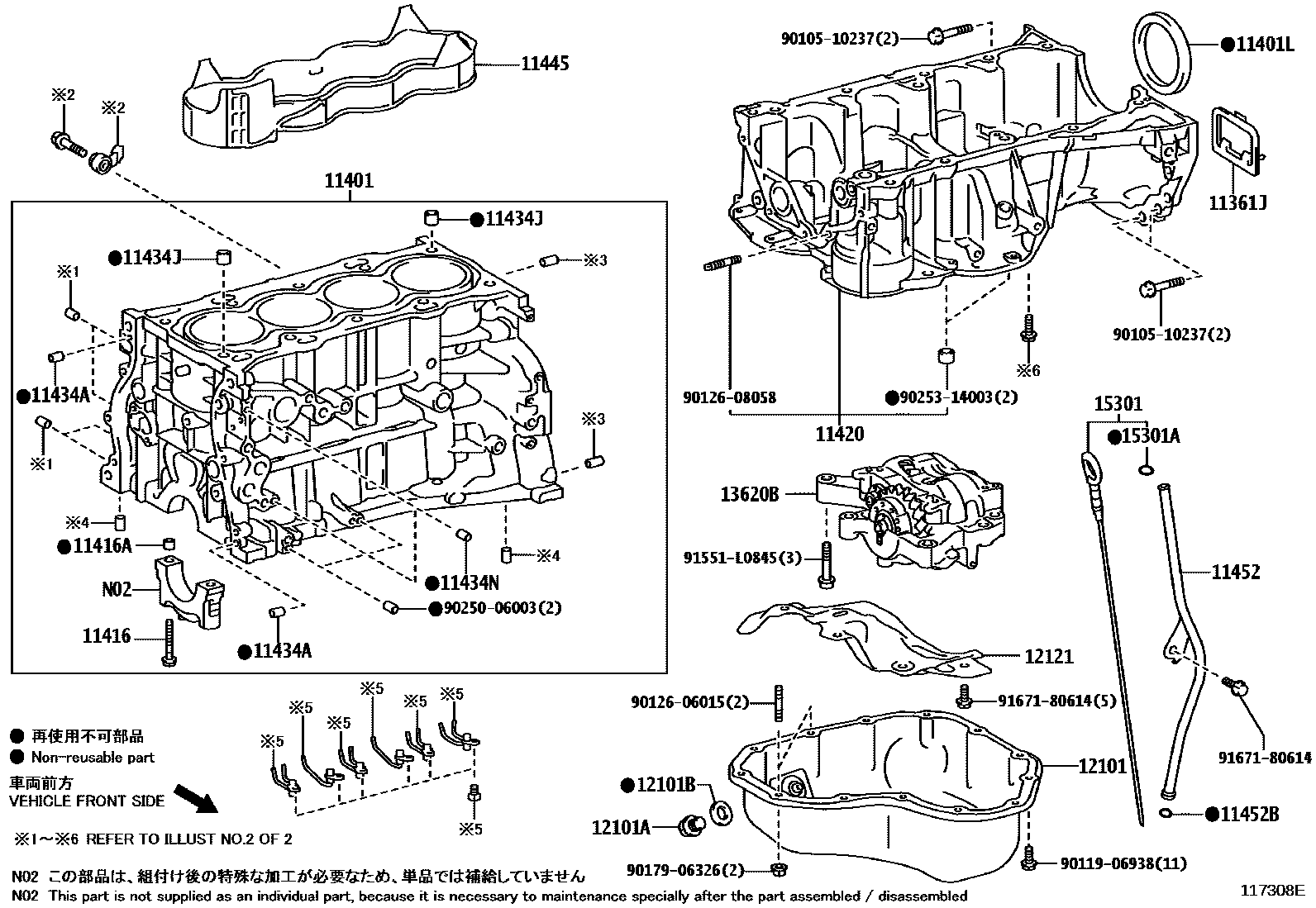

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0H010i2ARFE..ASV50..SE201110-201605

sub11361-28010¥540

11401BLOCK SUB-ASSY, CYLINDER

main11401-80774i2GRFE..GSV50¥317,000201202-201210

sub11401-80825¥317,000

main11401-80800i2GRFE..GSV50¥317,000201210-201406

sub11401-80814

main11401-80814i2GRFE..GSV50201407-201412

sub11401-80826¥219,000

sub13011-31151¥17,800

sub13011-31161¥25,600

main11401-80826i2GRFE..GSV50¥219,000201412-201504

sub11401-80A45¥219,000

main11410-39125i2AR#..ASV50,AVV50¥263,000201110-201405

*107

sub11410-39126¥165,000

sub90250-06003¥90

main11410-39125i2AR#..ASV50,AVV50¥263,000201212-201405

*286

sub11410-39126¥165,000

sub90250-06003¥90

main11410-39126i2AR#..ASV50,AVV50¥165,000201405-201504

*107

main11410-39126i2AR#..ASV50,AVV50¥165,000201405-201504

*286

main11410-39126i2ARFE..ASV50..SE¥165,000201504-201605

*107,*286

11401LSEAL, ENGINE REAR OIL

main90311-89005i2ARFE..ASV50¥1,390201110-201111

*107

sub90311-89006¥1,390

main90311-89006i2AR#..ASV50,AVV50¥1,390201212-201309

*286

sub90311-89013¥1,390

main90311-89006i2ARFE..ASV50..6F¥1,390201111-201309

*107

sub90311-89013¥1,390

main90311-89013i2AR#..ASV50,AVV50¥1,390201309-201407

*286

sub90311-89015¥1,390

main90311-89013i2AR#..ASV50,AVV50¥1,390201309-201408

*107

sub90311-89015¥1,390

main90311-89015i2AR#..ASV50,AVV50¥1,390201408-201504

*107

main90311-89015i2ARFE..ASV50..GCC¥1,390201408-201504

*286

main90311-89015i2ARFE..ASV50..SE¥1,390201504-201605

*107,*286

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i2GRFE..GSV50¥240201202-201504

main90910-02173i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥240201110-201504

*107

main90910-02173i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥240201212-201504

*286

main90910-02173i2ARFE..ASV50..SE¥240201504-201605

*107,*286

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2AR#..ASV50,AVV50..ARL¥140201110-201504

*107

main90253-13017i2AR#..ASV50,AVV50¥140201212-201504

*286

main90253-13017i2ARFE..ASV50..SE¥140201504-201605

*107,*286

11420CRANKCASE ASSY, STIFFENING

main11420-0V010i2AR#..ASV50,AVV50201212-201504

*286

main11420-36020i2ARFE..ASV50..6FC..GCC¥33,500201110-201504

*107

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRFE..GSV50¥50201202-201504

L=12,OD=4.0

main90250-06003i2ARFE..ASV50..GL,GLX¥90201110-201504

L=14,OD=6,*107

main90250-06003i2ARFE..ASV50..GL,GLX¥90201212-201504

L=14,OD=6,*286

main90250-06003i2ARFE..ASV50..SE¥90201504-201605

L=14,OD=6,*107,*286

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥120201212-201504

*286

main90253-15001i2ARFE..ASV50..6F¥120201110-201504

*107

main90253-15001i2ARFE..ASV50..SE¥120201504-201605

*107,*286

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFE..ASV50..6F¥90201110-201605

*107

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i2ARFE..ASV50..GL,GLX¥1,700201212-201504

*286

main11445-36010i2ARFE..ASV50..6F¥1,700201110-201504

*107

main11445-36010i2ARFE..ASV50..SE¥1,700201504-201605

*107,*286

11452GUIDE, OIL LEVEL GAGE

main11452-31060i2GRFE..GSV50¥880201202-201504

main11452-36021i2AR#..ASV50,AVV50¥2,070201212-201309

*286

main11452-36021i2AR#..ASV50,AVV50..ATM,CVT¥2,070201110-201309

*107

main11452-36050i2ARFE..ASV50..GCC¥1,300201309-201504

*107

main11452-36050i2AR#..ASV50,AVV50¥1,300201309-201504

*286

main11452-36050i2ARFE..ASV50..SE¥1,300201504-201605

*107,*286

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSV50¥140201202-201504

main96741-19010i2ARFE..ASV50..6FC..GCC¥250201110-201504

*107

main96741-19010i2AR#..ASV50,AVV50¥250201212-201504

*286

main96741-19010i2ARFE..ASV50..SE¥250201504-201605

*107,*286

12101PAN SUB-ASSY, OIL

main12101-36040i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥10,500201212-201504

*286

main12101-36040i2ARFE..ASV50..6F¥10,500201110-201504

*107

main12101-36040i2ARFE..ASV50..SE¥10,500201504-201605

*107,*286

main12111-31150i2GRFE..GSV50¥27,900201202-201504

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2AR#..ASV50,AVV50..ARL¥160201110-201504

*107

main90341-12012i2GRFE..GSV50¥160201202-201504

main90341-12012i2AR#..ASV50,AVV50¥160201212-201504

*286

main90341-12012i2ARFE..ASV50..SE¥160201504-201605

*107,*286

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ARFE..ASV50..GL,GLX¥90201212-201504

*286

main90430-12031i2ARFE..ASV50..6F¥90201110-201504

*107

main90430-12031i2GRFE..GSV50¥90201202-201504

main90430-12031i2ARFE..ASV50..SE¥90201504-201605

*107,*286

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31070i2GRFE..GSV50¥6,000201202-201504

main12121-31120i2GRFE..GSV50¥3,220201504

main12121-36030i2AR#..ASV50,AVV50¥1,720201212-201504

*286

main12121-36030i2ARFE..ASV50..SE¥1,720201504-201605

*107,*286

main12121-36030i2ARFE..ASV50..GL,GLX¥1,720201110-201504

*107

13620BBALANCER ASSY, ENGINE

main13620-36011i2AR#..ASV50,AVV50¥49,600201110-201211

*107

sub13620-36020¥34,400

main13620-36020i2AR#..ASV50,AVV50¥34,400201211-201501

*107

main13620-36020i2AR#..ASV50,AVV50¥34,400201212-201605

*286

main13620-36060i2ARFE..ASV50..GCC¥31,300201501-201504

main13620-36060i2ARFE..ASV50..SE¥31,300201504-201605

*107

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31100i2GRFE..GSV50¥820201202-201504

main15301-36030i2AR#..ASV50,AVV50¥1,200201110-201207

*107

sub15301-36031¥1,000

main15301-36031i2AR#..ASV50,AVV50..ALT,ATRS,ATRSX,GL,GLX,HBD¥1,000201207-201504

*107

sub15301-36032¥750

main15301-36031i2AR#..ASV50,AVV50¥1,000201212-201504

*286

sub15301-36032¥750

main15301-36031i2ARFE..ASV50..SE¥1,000201504-201605

*107,*286

sub15301-36032¥750

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2AR#..ASV50,AVV50¥140201110-201710

9010510237

main90105-10237¥110

9011906938

main90119-06938¥60

9012606015

main90126-06015¥110

9012608058

main90126-08058¥80

9017906326

main90179-06326¥60

9025006003

main90250-06003¥90

9025314003

main90253-14003¥140

91551L0845

main91551-L0845¥100

9167180614

main91671-80614¥60

28 parts on this diagram · 4 diagrams in section
