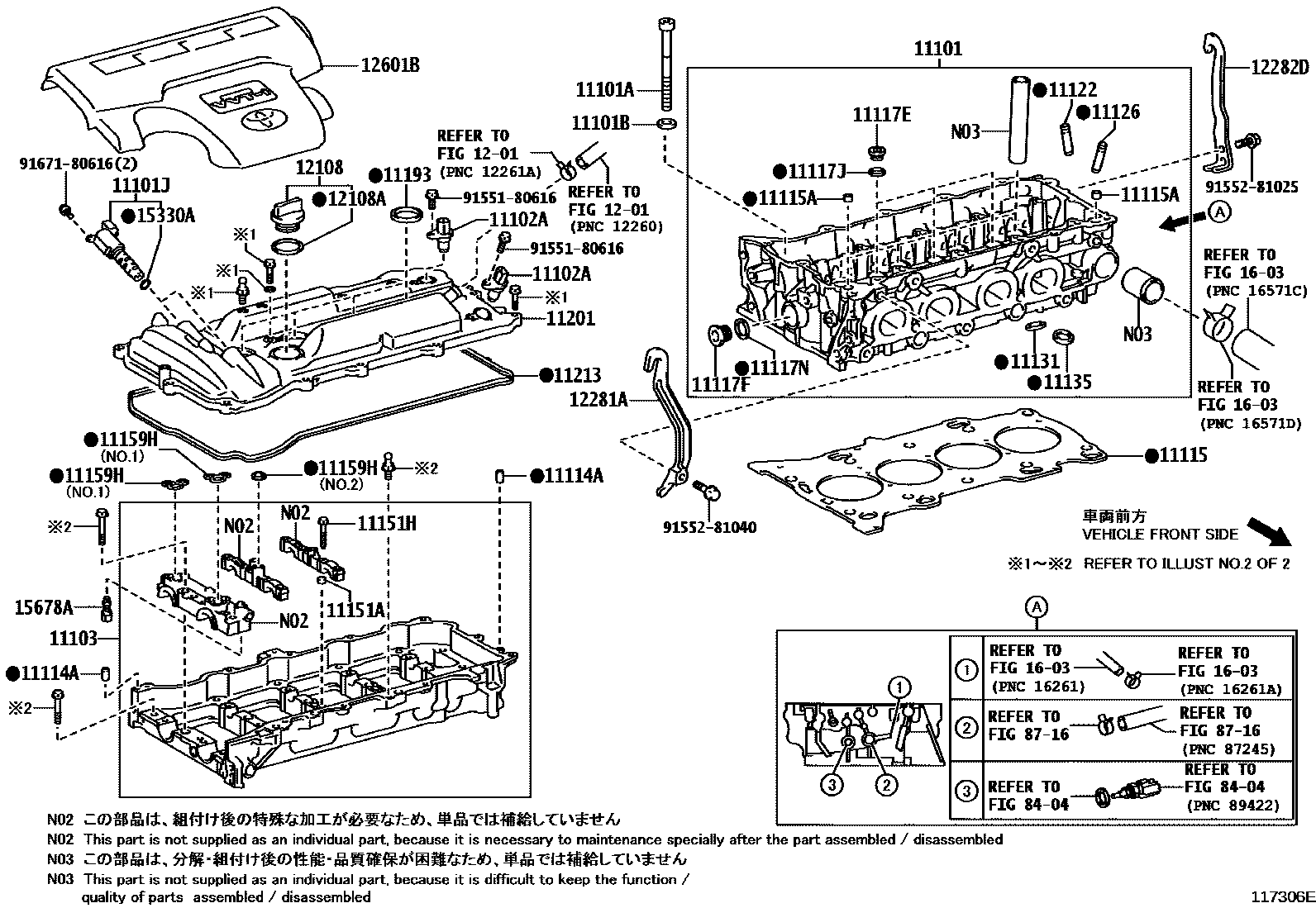

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
TYPE A
*107
*286
TYPE B
*107,*286
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*286
*107
*107,*286
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*107
*286
*107,*286
11102ASENSOR, CAMSHAFT POSITION
*286
*107
*107,*286
11103HOUSING SUB-ASSY, CAMSHAFT
*107
*286
*107,*286
*286
*107
11114APIN, STRAIGHT
L=14,OD=6
L=14,OD=6,*107
L=14,OD=6,*286
L=14,OD=6,*107,*286
11115GASKET, CYLINDER HEAD
*286
*107
*107,*286
*286
*107
11115APIN, RING
*286
*107,*286
*107
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*286
*107
*107,*286
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*107
*286
*107,*286
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*107
*286
*107,*286
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*286
*107
*107,*286
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05,*107
O/S 0.05,*286
O/S 0.05
O/S 0.05,*107,*286
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
STD,*107
STD,*286
STD,*107,*286
O/S 0.03,*107
O/S 0.03,*286
O/S 0.03,*107,*286
11135SEAT, EXHAUST VALVE
STD
STD,*107
STD,*286
STD,*107,*286
O/S 0.03
O/S 0.03,*286
O/S 0.03,*107
O/S 0.03,*107,*286
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,*107
L=12.5,OD=8,*286
L=12.5,OD=8,*107,*286
L=12.5,OD=8
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*107
*286
*107,*286
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1
*107,NO.1
*286,NO.1
*107,NO.1,*286,NO.1
*107,NO.2
*107,NO.2,*286,NO.2
*286,NO.2
NO.2
11193GASKET, SPARK PLUG TUBE
*107
*286
*107,*286
11201COVER SUB-ASSY, CYLINDER HEAD
*286
(L),*286
(L)
*107
(J)
*107
(J),*286
11213GASKET, CYLINDER HEAD COVER
*286
*107,*286
*107
1201
12108CAP SUB-ASSY, OIL FILLER
*107
*286
*107,*286
12108AGASKET(FOR OIL FILLER CAP)
*107
*286
*107,*286
12282DHANGER, ENGINE, NO.2
*286
*107
*107,*286
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
*107,*286
*107
*286
(J),*286
15678AFILTER, OIL CONTROL VALVE
*286
*107
*107,*286
1603
8404
8716
9155180616
main91551-80616
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616
39 parts on this diagram · 5 diagrams in section
