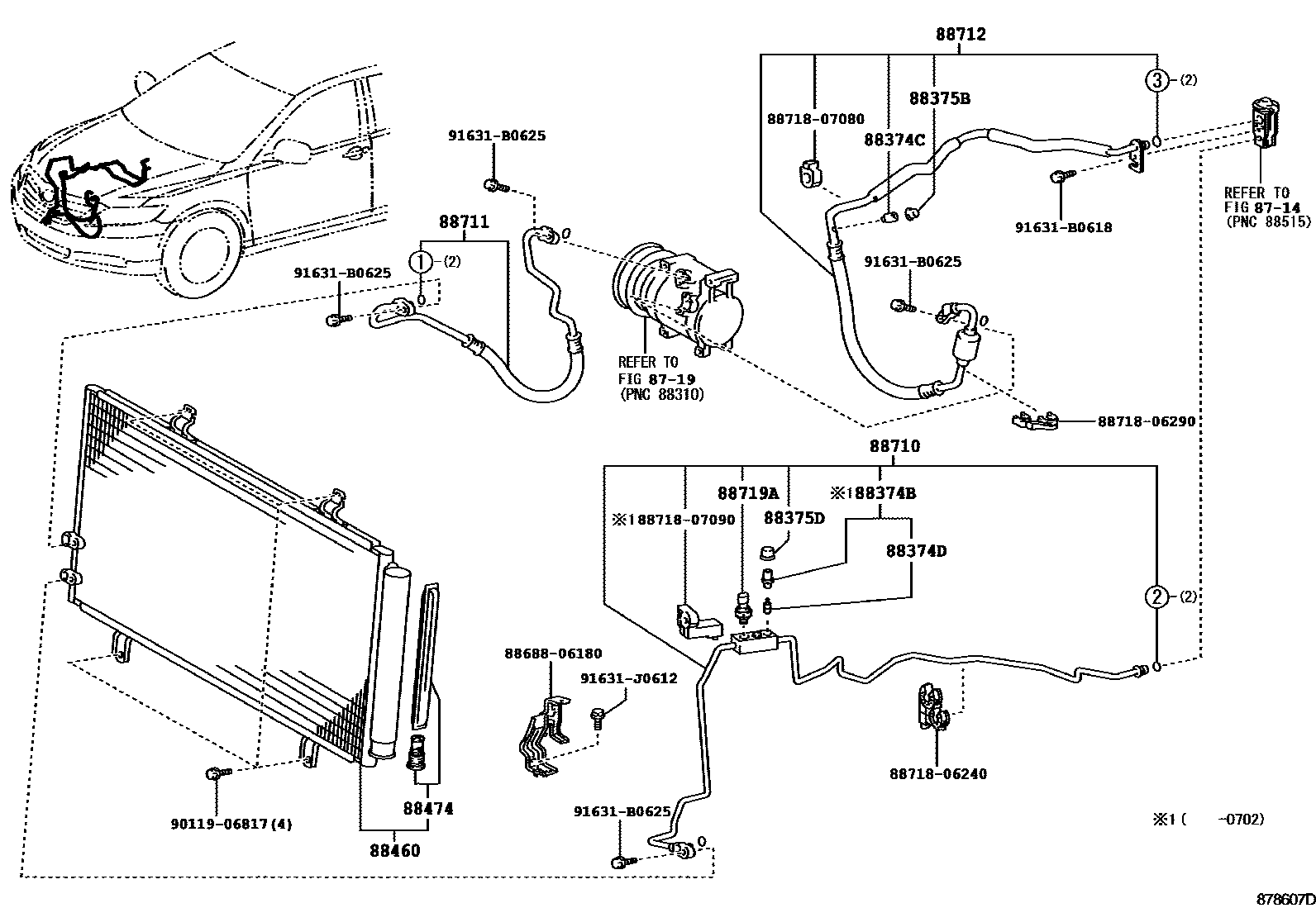

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-33070iACV40,GSV40200606-200702

88374CVALVE, SERVICE, NO.2

main88374-30010iACV40,AHV40,GSV40200606-200908

88374DVALVE, SERVICE NO.3

main88374-30010iACV40,GSV40200606-200908

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iACV40200606-200908

88375DCAP, SERVICE VALVE, NO.2

main88375-02060iACV40200606-200908

sub88375-0E020

88460CONDENSER ASSY, COOLER

main88460-06190iACV40,GSV40200606-201110

sub88460-33100

main88460-33090iAHV40201001-201110

sub88460-33120

88474DRYER, COOLER

main88474-47020iAHV40201001

main88474-YC020iACV40200606-200908

sub88474-17010

88710TUBE ASSY, AIR CONDITIONER

main88710-06250iACV40..ARL200606-200908

sub88710-33330

main88710-06260iACV40..GCC200606-200908

main88710-06310iAHV40201001

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-06230iGSV40..GCC200610-201003

sub88711-06300

main88703-06240iACV40..GCC200606-201003

sub88711-06310

main88711-06300iGSV40..ARL200610-200908

sub88711-33200

main88711-06310iACV40..ARL200606-200906

main88711-06410iAHV40201001

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-06310iACV40..GCC200606-200906

main88704-06320iACV40..ARL200606-200906

main88712-06160iGSV40200610-200908

sub88712-33250

main88712-06250iAHV40201001

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iACV40200702-200908

main88719-40020iACV40,GSV40200606-200701

8868806180BRACKET, COOLER DIAPHRAGM

main88688-06180

8871806240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06240

8871806290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06290

8871807080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07080

8871807090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07090

9011906817

main90119-06817

91631B0618

main91631-B0618

91631B0625

main91631-B0625

91631J0612

main91631-J0612

22 parts on this diagram · 8 diagrams in section
