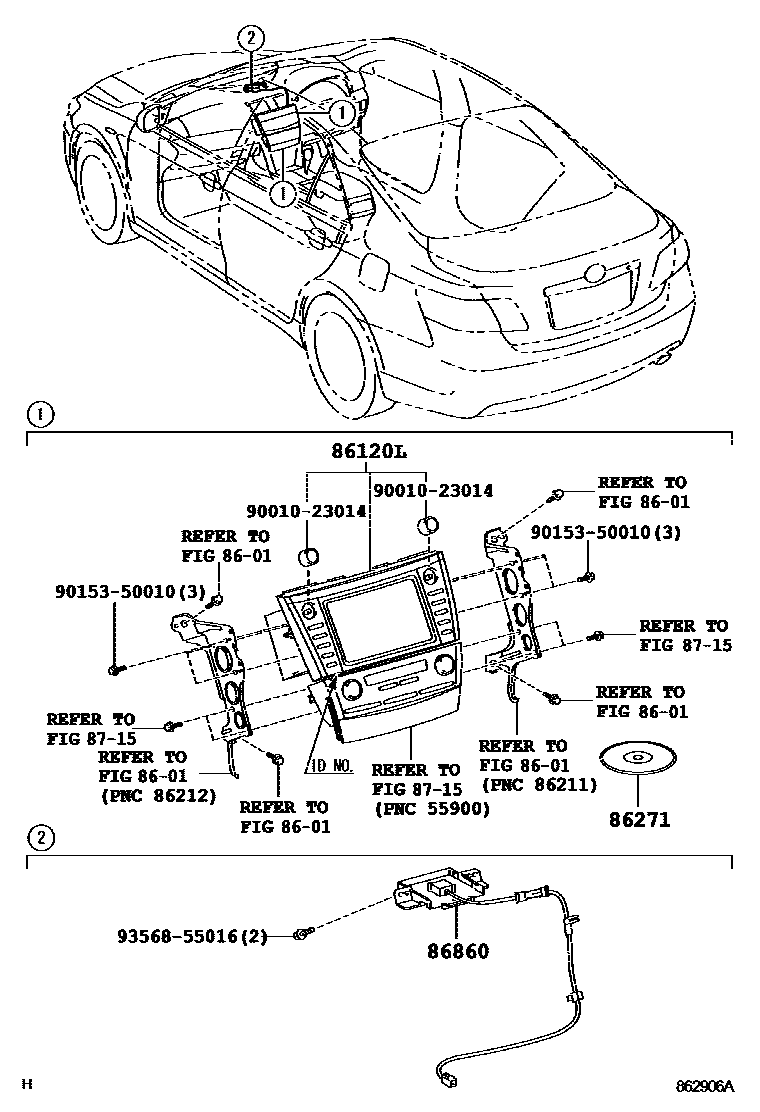

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-06400iACV40..GD200606-200906

FUJITSU TEN,ID=18022,NEW ZEALAND SPEC

main86120-06400iACV40..GD200606-200906

FUJITSU TEN,ID=18022

main86120-06410iGSV40..PRE200610-200908

FUJITSU TEN,ID=18023

main86120-06410iGSV40..PRE200610-200908

FUJITSU TEN,ID=18023,NEW ZEALAND SPEC

main86120-06410iGSV40..PRE200610-200908

FUJITSU TEN,ID=18023,AUDIO-AVN UNI 6SPEAKER BLUETOOTH

main86120-06640iACV40..GD200906

FUJITSU TEN,ID=18035

main86120-06650iGSV40..PRE200908

FUJITSU TEN,ID=18034

main86120-06650iGSV40..PRE200908

FUJITSU TEN,ID=18034,AUDIO-AVN,8SPEAKER,BLUETOOTH

86271DISC, DISC PLAYER

main86271-47070iACV40,GSV40..(GD,PRE)..ARL200906-200909

main86271-47071iACV40,GSV40..(GD,PRE)..ARL200910-201009

AUDIO-AVN,8SPEAKER,BLUETOOTH

sub86271-47072

main86271-47072iAHV40,GSV40..HBD,SPVZ201010-201108

AUDIO-AVN,8SPEAKER,BLUETOOTH

sub86271-47073

main86271-47073iAHV40,GSV40..HBD,SPVZ201109

AUDIO-AVN,8SPEAKER,BLUETOOTH

main86271-53011iACV40,GSV40..(GD,PRE)..ARL200606-200711

NEW ZEALAND SPEC

main86271-53012iACV40,GSV40..(GD,PRE)..ARL200712-200809

AUDIO-AVN UNI 6SPEAKER BLUETOOTH

main86271-53012iACV40,GSV40..(GD,PRE)..ARL200712-200809

NEW ZEALAND SPEC

main86271-53013iGSV40..SPVZ200810-200908

NEW ZEALAND SPEC

main86271-53013iGSV40..PRE200810-200908

AUDIO-AVN UNI 6SPEAKER BLUETOOTH

86860ANTENNA ASSY, NAVIGATION

main86860-33130iACV40..GD200606-200906

NEW ZEALAND SPEC

main86860-33150iGSV40..PRE200610-200908

AUDIO-AVN UNI 6SPEAKER BLUETOOTH

main86860-33150iGSV40..SPVZ200610-200908

NEW ZEALAND SPEC

main86860-33150iGSV40..PRE200908

AUDIO-AVN,8SPEAKER,BLUETOOTH

8715

9001023014

main90010-23014

9015350010

main90153-50010

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section
