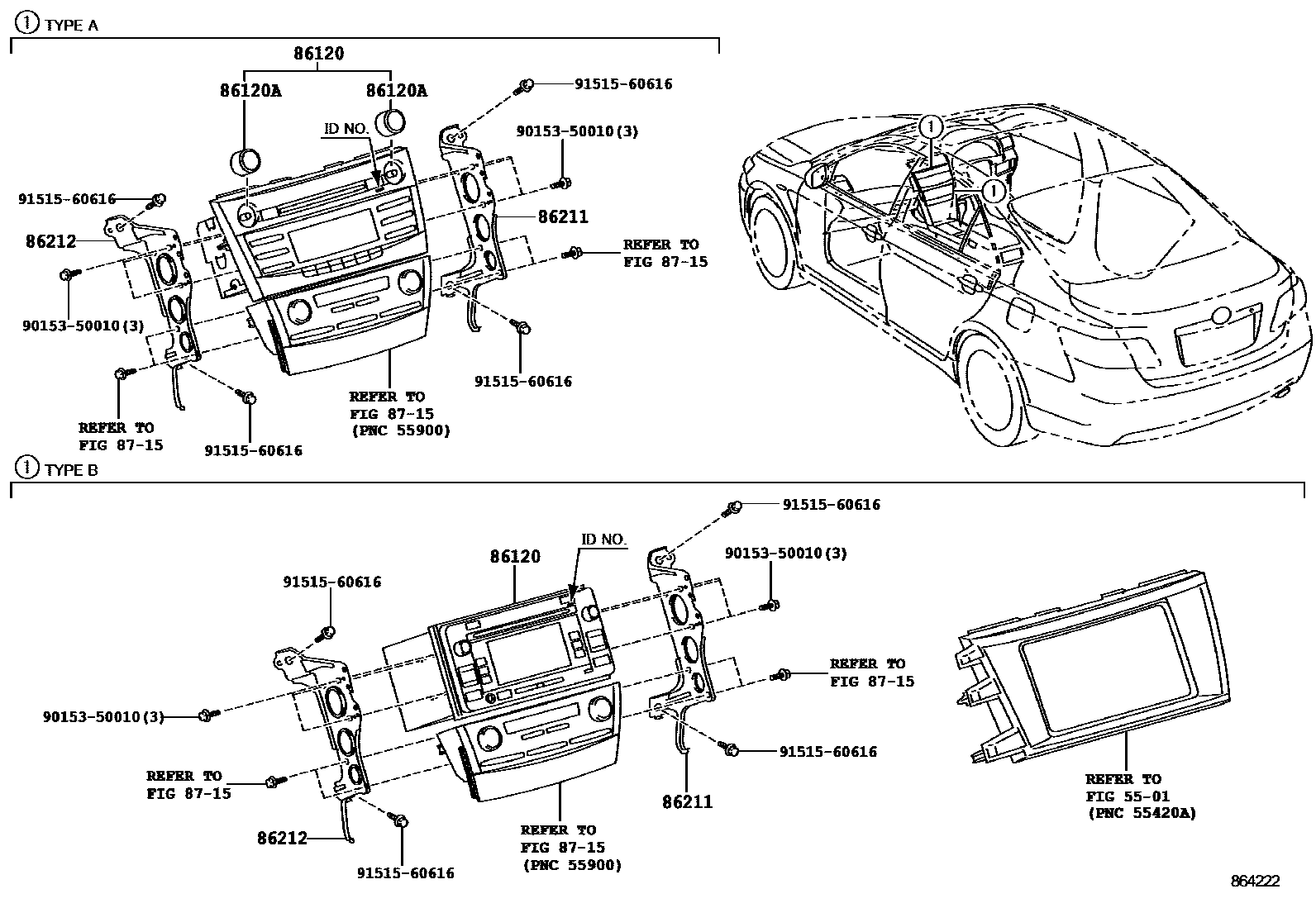

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0005 1CONDENSER

5501

86120RECEIVER ASSY, RADIO

main86120-06270iACV40..ALT200606-200811

FUJITSU TEN,ID=12815

main86120-06271iACV40..ALT200811-200906

FUJITSU TEN,ID=12815

main86120-06280iACV40..ATEVA,SPV200606-200811

FUJITSU TEN,ID=12816,NEW ZEALAND SPEC

main86120-06280iACV40..GD200606-200811

FUJITSU TEN,ID=12816

main86120-06281iACV40..ATEVA,SPV200811-200906

FUJITSU TEN,ID=12816

main86120-06281iACV40..ATEVA,SPV200811-200906

FUJITSU TEN,ID=12816,NEW ZEALAND SPEC

main86120-06281iACV40..5FC..ALT200904-200906

FUJITSU TEN,ID=12816,LIMITED

main86120-06290iACV40..GLX200606-200811

FUJITSU TEN,ID=12826,AUDIO-CD AM/FM UNI 4SPEAKER

main86120-06290iACV40..GLX200606-200811

FUJITSU TEN,ID=12826

main86120-06290iACV40..GLX200606-200811

FUJITSU TEN,ID=12826,AUDIO-C&A AVX PREPARATION 6SP

main86120-06291iACV40..GLX200811-200906

FUJITSU TEN,ID=12826,AUDIO-C&A AVX PREPARATION 6SP

main86120-06291iACV40..GLX200811-200906

FUJITSU TEN,ID=12826

main86120-06291iACV40..GL200811-200906

FUJITSU TEN,ID=12826,AUDIO-CD AM/FM UNI 4SPEAKER

main86120-06300iACV40..SE200606-200811

FUJITSU TEN,ID=12827

main86120-06300iACV40..SE200606-200811

FUJITSU TEN,ID=12827,AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER

main86120-06300iACV40..SE200606-200811

FUJITSU TEN,ID=12827,AUDIO-C&A AVX PREPARATION 6SP

main86120-06301iACV40..SE200811-200906

FUJITSU TEN,ID=12827,AUDIO-C&A AVX PREPARATION 6SP

main86120-06301iACV40..SE200811-200906

FUJITSU TEN,ID=12827

main86120-06301iACV40..SE200811-200906

FUJITSU TEN,ID=12827,AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER

main86120-06350iGSV40..ATX200610-200811

FUJITSU TEN,ID=12822

main86120-06351iGSV40..ATX200811-200908

FUJITSU TEN,ID=12822

main86120-06360iGSV40..PRD,SPVS,SPVZ200610-200811

FUJITSU TEN,ID=12824,AUDIO-AVN UNI 6SPEAKER BLUETOOTH

main86120-06360iGSV40..PRD,SPVS,SPVZ200610-200811

FUJITSU TEN,ID=12824

main86120-06360iGSV40..PRE200610-200704

FUJITSU TEN,ID=12824,NEW ZEALAND SPEC

main86120-06360iGSV40..ATX200704-200811

FUJITSU TEN,ID=12824,LIMITED

main86120-06361iGSV40..SPVZ200811-200908

FUJITSU TEN,ID=12824,LIMITED

main86120-06361iGSV40..PRD,SPVS,SPVZ200811-200908

FUJITSU TEN,ID=12824

main86120-06361iGSV40..PRD,SPVS,SPVZ200811-200908

FUJITSU TEN,ID=12824,AUDIO-AVN UNI 6SPEAKER BLUETOOTH

main86120-06370iACV40..GL200606-200906

FUJITSU TEN,ID=17421,AUDIO-W/O(W/COVER)4SP

main86120-06370iACV40..GL200606-201110

FUJITSU TEN,ID=17421

main86120-06370iGSV40..TOU200610-200908

FUJITSU TEN,ID=17421,AUDIO-C&A AVX PREPARATION 6SP

main86120-06370iACV40,GSV40..GL,TOU200906-201110

FUJITSU TEN,ID=17421,AUDIO-RADIO LESS(WITH/COVER), 4SPEAKER

main86120-06370iACV40,GSV40..GL,TOU200906-201110

FUJITSU TEN,ID=17421,AUDIO-AVN,6SPEAKER

main86120-06470iGSV40..GD200610-200811

FUJITSU TEN,ID=12861,AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER

main86120-06470iGSV40..GD200610-200811

FUJITSU TEN,ID=12861

main86120-06470iGSV40..GD200610-200811

FUJITSU TEN,ID=12861,AUDIO-C&A AVX PREPARATION 6SP

main86120-06471iGSV40..GD200811-200908

FUJITSU TEN,ID=12861,AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER

main86120-06471iGSV40..GD200811-200908

FUJITSU TEN,ID=12861

main86120-06471iGSV40..GD200811-200908

FUJITSU TEN,ID=12861,AUDIO-C&A AVX PREPARATION 6SP

main86120-06660iACV40..ALT200906-201110

FUJITSU TEN,ID=22826,BACK MONITOR-WITH

main86120-06660iACV40..ALT200906-201110

FUJITSU TEN,ID=22826

main86120-06670iACV40..GD200906-201110

FUJITSU TEN,ID=22827

main86120-06670iACV40..ATEVA,SPV200906-201110

FUJITSU TEN,ID=22827,BACK MONITOR-WITH

main86120-06670iACV40..ATEVA,SPV200906-201110

FUJITSU TEN,ID=22827,NEW ZEALAND SPEC

main86120-06670iAHV40201001-201110

FUJITSU TEN,ID=22827,AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

main86120-06680iGSV40..ATX200908-201110

FUJITSU TEN,ID=22828

main86120-06680iGSV40..ATX200908-201110

FUJITSU TEN,ID=22828,LIMITED&BACK MONITOR-WITH

main86120-06680iGSV40..ATX200908-201110

FUJITSU TEN,ID=22828,BACK MONITOR-WITH

main86120-06690iGSV40..PRD,SPVS,SPVZ200908-201110

FUJITSU TEN,ID=22829

main86120-06690iGSV40..PRD,SPVS,SPVZ200908-201110

FUJITSU TEN,ID=22829,AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

main86120-06690iGSV40..PRD,SPVS,SPVZ200908-201110

FUJITSU TEN,ID=22829,BACK MONITOR-WITH

main86120-06690iGSV40..ATX200908-201002

FUJITSU TEN,ID=22829,LIMITED

main86120-06710iACV40..GLX200906-201104

FUJITSU TEN,ID=22830,AUDIO-AVN,6SPEAKER

sub86120-06711

main86120-06710iACV40..GLX200906-201104

FUJITSU TEN,ID=22830

sub86120-06711

main86120-06711iACV40..GLX201105-201110

FUJITSU TEN,ID=22830,AUDIO-AVN,6SPEAKER

main86120-06711iACV40..GLX201105-201110

FUJITSU TEN,ID=22830

main86120-06720iACV40..SE200906-201104

FUJITSU TEN,ID=22831,BACK MONITOR-WITH

sub86120-06721

main86120-06720iACV40..SE200906-201104

FUJITSU TEN,ID=22831,AUDIO-AVN,6SPEAKER

sub86120-06721

main86120-06720iACV40..SE200906-201110

FUJITSU TEN,ID=22831

sub86120-06721

main86120-06720iACV40..SE200906-201110

FUJITSU TEN,ID=22831,AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH

sub86120-06721

main86120-06730iGSV40..TOU200908-201104

FUJITSU TEN,ID=22832,AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH

main86120-06731iGSV40..TOU201105-201110

FUJITSU TEN,ID=22832,AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH

main86120-06740iGSV40..GD200908-201104

FUJITSU TEN,ID=22833,AUDIO-AVN,6SPEAKER

main86120-06740iGSV40..GD200908-201104

FUJITSU TEN,ID=22833,BACK MONITOR-WITH

main86120-06740iGSV40..GD200908-201104

FUJITSU TEN,ID=22833

main86120-06741iGSV40..GD201105-201110

FUJITSU TEN,ID=22833

main86120-06741iGSV40..GD201105-201110

FUJITSU TEN,ID=22833,BACK MONITOR-WITH

main86120-06741iGSV40..GD201105-201110

FUJITSU TEN,ID=22833,AUDIO-AVN,6SPEAKER

main86120-06770iACV40..GL200906-201110

FUJITSU TEN,ID=22834,AUDIO-CD,4SPEAKER

main86120-YY130iAHV40,GSV40..HBD,SPVZ200908-201110

FUJITSU TEN,ID=38009,AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

main86120-YY130iACV40,GSV40..ALT,ATEVA,ATX,PRD,SPV,SPVS200906-201110

FUJITSU TEN,ID=38009,BACK MONITOR-WITH

86120AKNOB, RADIO RECEIVER SWITCH

main90011-23013iACV40..GL200906

BACK MONITOR-WITH

main90011-23013iACV40..GL200606-200906

AUDIO-CD AM/FM UNI 4SPEAKER

main90011-23013iACV40,GSV40..(GD,GLX,SE)..GCC200606-200908

AUDIO-C&A AVX PREPARATION 6SP

main90011-23013iGSV40..TOU200610-200908

AUDIO-CD+6INDASH AM/FM UNI 6SPEAKER

main90011-23013iACV40,GSV40..(GD,GLX,SE)..GCC200906

AUDIO-CD,4SPEAKER

main90011-23013iACV40,GSV40..(GD,GLX,SE)..GCC200906

AUDIO-AVN,6SPEAKER

main90011-23013iGSV40..TOU200908

AUDIO-6CD CHANGER, 6SPEAKER, BLUETOOTH

main90011-23017iGSV40..SPVZ200610-200908

AUDIO-AVN UNI 6SPEAKER BLUETOOTH

main90011-23017iACV40,AHV40,GSV40..ALT,ATEVA,ATX,HBD,PRD,SPV,SPVS,SPVZ200606-200906

NEW ZEALAND SPEC

main90011-23017iACV40,AHV40,GSV40..ALT,ATEVA,ATX,HBD,PRD,SPV,SPVS,SPVZ200906

BACK MONITOR-WITH

main90011-23017iACV40,GSV40..ALT,ATEVA,ATX,PRD,SPV,SPVS,SPVZ200606-200908

main90011-23017iGSV40..ATX200908

LIMITED&BACK MONITOR-WITH

main90011-23017iGSV40..ATX200908

AUDIO-6SPEAKER, DISPLAY AUDIO(WITH/CAMERA)

86211BRACKET, RADIO, NO.1

main86211-06080iGSV40..ARL200610-200908

main86211-33210iACV40,AHV40,GSV40..ALT,ATEVA,GD,GL,GLX,HBD,SE,SPV,TOU200606-200908

86212BRACKET, RADIO, NO.2

main86212-06080iGSV40..ARL200610-200908

main86212-33210iGSV40..GCC200606-200908

8715

9015350010

main90153-50010

9151560616

main91515-60616

8 parts on this diagram · 4 diagrams in section
