WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06090iACV40..ARL200606-200908

main85110-06100iACV40..GCC200606-200908

85150BLINK ASSY, WIPER

main85150-06090iACV40..ARL200606-200908

main85150-06100iGSV40..GCC200606-200908

85211BARM, FRONT WIPER, RH

main85211-06080iACV40..ARL200606-200908

main85211-06090iGSV40..GCC200606-200908

sub85211-33270

85212ABLADE, FR WIPER, RH

main85212-06080iACV40,AHV40,GSV40..ARL200606-200908

sub85212-30410

main85212-06090iGSV40..GCC200606-200908

sub85212-53081

85214ARUBBER, WIPER, RH

main85214-06110iACV40,AHV40,GSV40..ARL200606-200908

sub85214-30380

main85214-06120iACV40..GCC200606-200908

sub85214-53090

85214BRUBBER, WIPER, LH

main85214-06110iACV40,GSV40..GCC200606-200908

sub85214-30380

main85214-06120iACV40,AHV40,GSV40..ARL200606-200908

sub85214-53090

85221BARM, FRONT WIPER, LH

main85221-06080iACV40,AHV40,GSV40..ARL200606-200908

main85221-06090iACV40,GSV40..GCC200606-200908

sub85221-33260

85222ABLADE, FR WIPER, LH

main85222-06080iACV40..ARL200606-200908

sub85222-53060

main85222-06090iGSV40..GCC200606-200908

sub85222-33241

89941SENSOR, RAIN

main89941-42010iACV40..GD200606-200908

89943COVER, RAIN SENSOR

main89943-42010iACV40..GD200606-200908

89944TAPE, RAIN SENSOR

main89944-42010iACV40..GD200606-200908

9011906864

main90119-06864

9017610005

main90176-10005

9338516014

main93385-16014

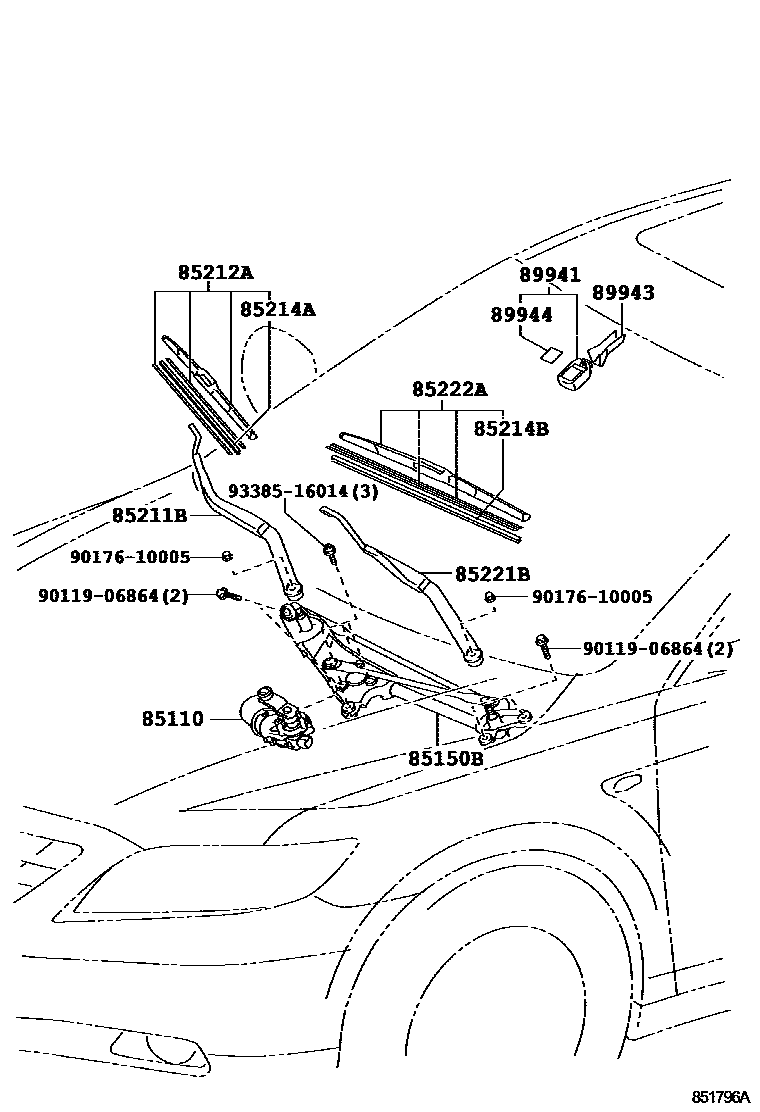

14 parts on this diagram · 1 diagram in section
