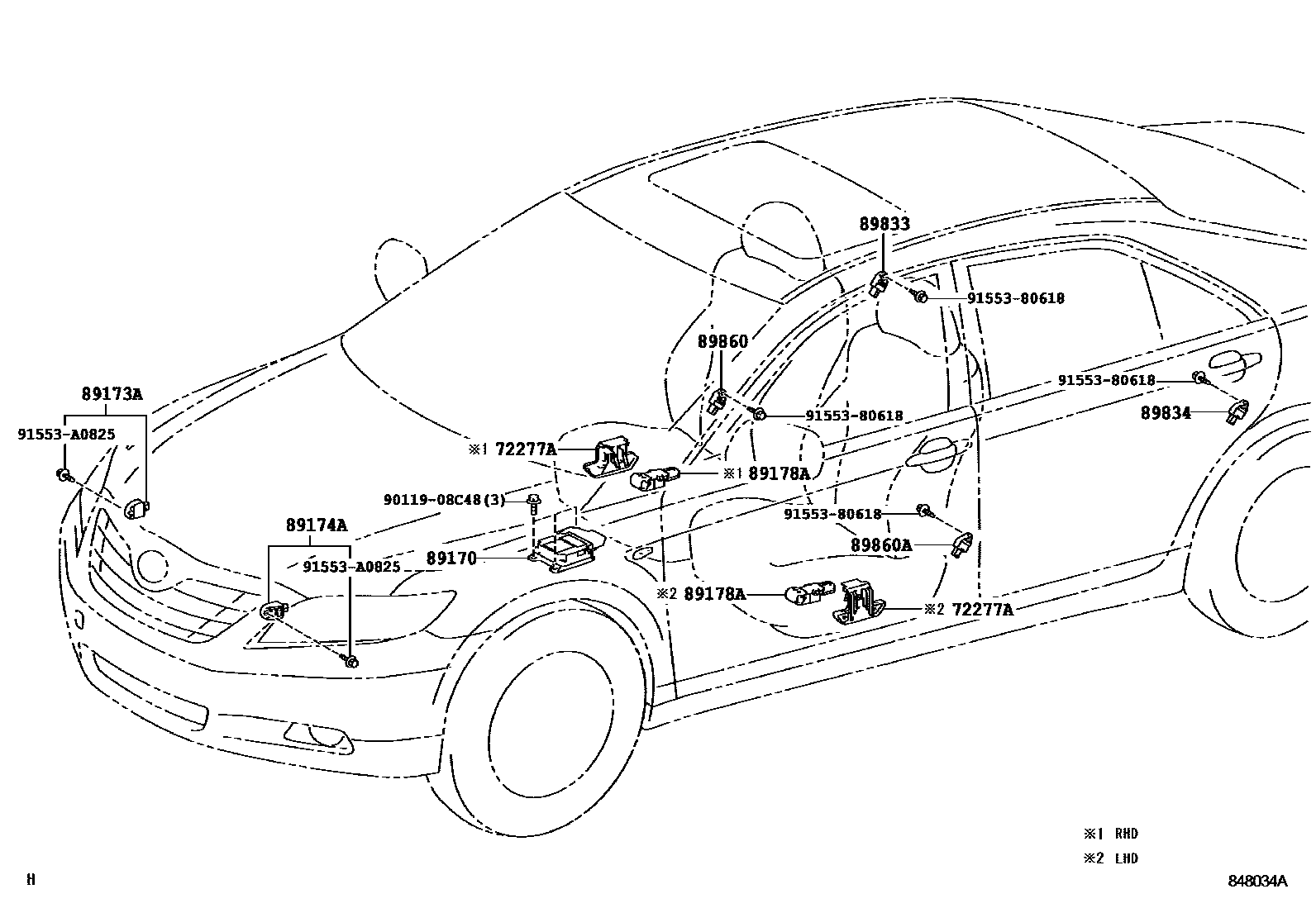

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGSV40200606-200908

89170SENSOR ASSY, AIRBAG

main89170-06300iACV40..ALT,GL,GLX,SE200606-200908

main89170-06310iGSV40..ARL200606-200908

main89170-06310iACV40..ALT200606-200906

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89170-06360iAHV40201001

89173ASENSOR, AIRBAG, FRONT RH

main89173-09390iACV40200606-201110

main89173-39365iAHV40201001-201110

89174ASENSOR, AIRBAG, FRONT LH

main89173-09390iGSV40200606-201110

main89173-39365iAHV40201001-201110

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iACV40200606-200908

89833SENSOR, AIRBAG, REAR RH

main89831-07010iGSV40..GD;ACV40..ALT200606-200703

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22020iACV40..ALT200704-200908

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22020iACV40,GSV40..ALT,ATEVA,ATX,GD,PRD,PRE,SPV,SPVS,SPVZ200906

main89831-33030iAHV40201001

89834SENSOR, AIRBAG, REAR LH

main89831-07010iGSV40..GD;ACV40..ALT200606-200703

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22020iACV40..ALT200704-200908

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22020iACV40,GSV40..ALT,ATEVA,ATX,GD,PRD,PRE,SPV,SPVS,SPVZ200906

main89831-33030iAHV40201001

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0W050iGSV40..GD;ACV40..ALT200606-200703

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22010iACV40..ALT200704-200908

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22010iACV40,GSV40..ALT,ATEVA,ATX,GD,PRD,PRE,SPV,SPVS,SPVZ200906

main89831-28020iAHV40201001

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0W050iGSV40..GD;ACV40..ALT200606-200703

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22010iACV40..ALT200704-200908

SRS AIR BAG-W(DRIVER & PASSENGER & SIDE & CURTAIN)

main89831-22010iACV40,GSV40..ALT,ATEVA,ATX,GD,PRD,PRE,SPV,SPVS,SPVZ200906

main89831-28020iAHV40201001

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0825

main91553-A0825

12 parts on this diagram · 1 diagram in section
