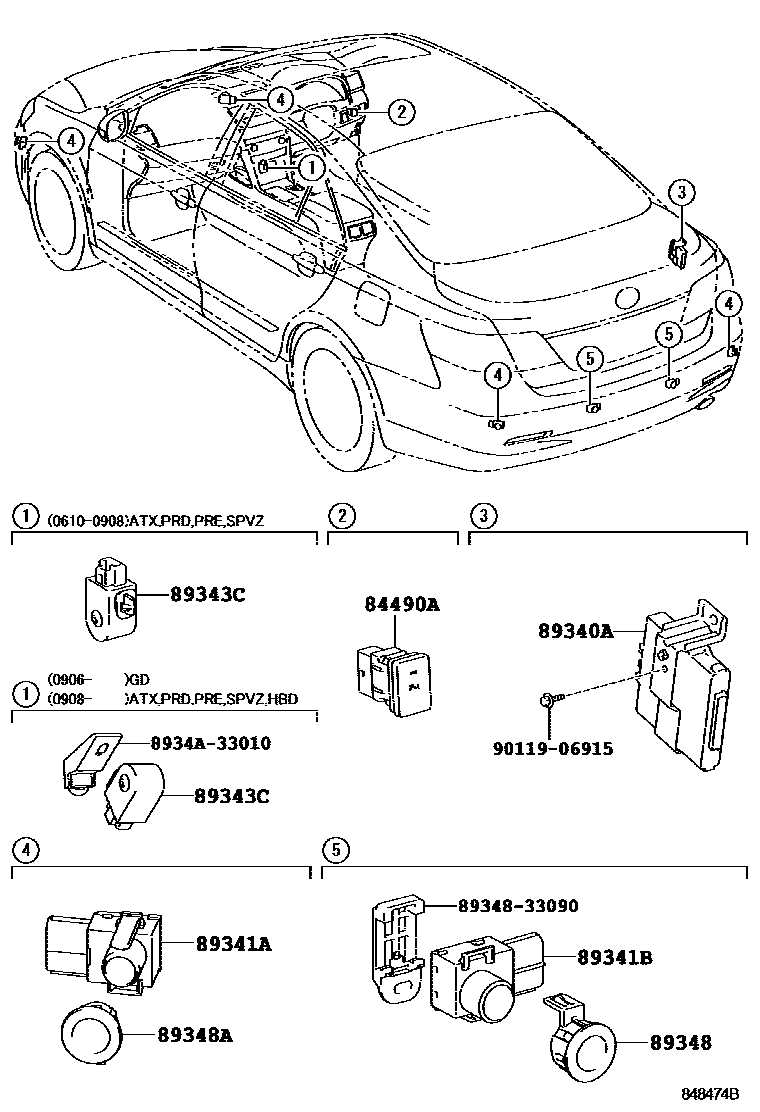

CLEARANCE & BACK SONAR

0001 1 0003 1

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-33020iACV40,AHV40,GSV40..GD,HBD,PRD,PRE,SPVZ200610-200908

sub84490-33021

main84490-33020iGSV40..ATX200704-201002

LIMITED

sub84490-33021

main84490-33020iGSV40..ATX201002

LIMITED&BACK MONITOR-WITH

sub84490-33021

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-33070iGSV40..ATX200704-201002

LIMITED

main89340-33070iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT

main89340-33070iGSV40..GD,PRD,SPVZ200610-200908

main89340-33080iGSV40..PRE200610-200908

main89340-33080iGSV40..PRE200908

LIMITED&BACK MONITOR-WITH

main89340-33080iGSV40..PRE200908

BACK MONITOR-WITH

main89340-33090iACV40,AHV40..GD,HBD200906

89341ASENSOR, ULTRASONIC, NO.1

main89341-33160-A0iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,SUPER WHITE 2,061

sub89341-33160

main89341-33160-A0iGSV40..GD,PRD,PRE,SPVZ200610-201110

SUPER WHITE 2,061

sub89341-33160

main89341-33160-A0iGSV40..ATX200704-201002

LIMITED,SUPER WHITE 2,061

sub89341-33160

main89341-33160-A2iGSV40..GD,PRD,PRE200904-201110

WHITE PEARL CS.,070

sub89341-33160

main89341-33160-B0iGSV40..ATX200704-201002

LIMITED,SILVER ME.,1D4

sub89341-33160

main89341-33160-B0iGSV40..ATX200610-201110

SILVER ME.,1D4

sub89341-33160

main89341-33160-B0iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,SILVER ME.,1D4

sub89341-33160

main89341-33160-C0iGSV40..ATX200610-201110

BLACK,209

sub89341-33160

main89341-33160-C0iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,BLACK,209

sub89341-33160

main89341-33160-C0iGSV40..ATX200704-201002

LIMITED,BLACK,209

sub89341-33160

main89341-33160-D0iGSV40..PRD,SPVZ200610-201110

RED M.M.,3R3

sub89341-33160

main89341-33160-D0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,RED M.M.,3R3

sub89341-33160

main89341-33160-D0iGSV40..ATX200704-201002

LIMITED,RED M.M.,3R3

sub89341-33160

main89341-33160-D0iGSV40..PRD,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,RED M.M.,3R3

sub89341-33160

main89341-33160-E0iGSV40..GD,PRD,PRE,SPVZ200610-200708

BEIGE M.M.,4N3

sub89341-33160

main89341-33160-E0iGSV40..ATX200704-200708

LIMITED,BEIGE M.M.,4N3

sub89341-33160

main89341-33160-E5iGSV40..PRD,SPVZ200708-200908

LIMITED,ORANGE ME.,4R8

sub89341-33160

main89341-33160-E5iGSV40..ATX200708-200908

ORANGE ME.,4R8

sub89341-33160

main89341-33160-F0iGSV40..ATX200704-200808

LIMITED,YELLOW M.M.,580

sub89341-33160

main89341-33160-F0iGSV40..GD,PRD,SPVZ200610-200808

YELLOW M.M.,580

sub89341-33160

main89341-33160-F0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,YELLOW M.M.,580

sub89341-33160

main89341-33160-G0iGSV40..GD,PRD,SPVZ200610-200708

GREEN M.M.,6U7

sub89341-33160

main89341-33160-G0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,GREEN M.M.,6U7

sub89341-33160

main89341-33160-G3iGSV40..GD,PRD,PRE200708-201002

LIMITED,LT.OLIVE M.M.,6T1

sub89341-33160

main89341-33160-G3iGSV40..GD,PRD,PRE200708-201110

LT.OLIVE M.M.,6T1

sub89341-33160

main89341-33160-G3iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,LT.OLIVE M.M.,6T1

sub89341-33160

main89341-33160-J0iGSV40..ATX200704-200708

LIMITED,LT.BLUE ME.,8M7

sub89341-33160

main89341-33160-J0iGSV40..GD,PRD,PRE,SPVZ200610-200708

LT.BLUE ME.,8M7

sub89341-33160

main89341-33160-J1iGSV40..GD,PRD,PRE,SPVZ200610-200808

BLUE M.M.,8T0

sub89341-33160

main89341-33160-J1iGSV40..ATX200704-200808

LIMITED,BLUE M.M.,8T0

sub89341-33160

main89341-33160-J5iGSV40..GD,PRD,PRE,SPVZ200708-200908

BLUE ME.,8T4

sub89341-33160

main89341-33160-J5iGSV40..GD,PRD,PRE,SPVZ200708-200908

LIMITED,BLUE ME.,8T4

sub89341-33160

main89341-33160-J6iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,LT.BLUE ME.,8S4

sub89341-33160

main89341-33160-J6iGSV40..ATX200808-201110

LT.BLUE ME.,8S4

sub89341-33160

main89341-33160-J6iGSV40..ATX200808-201002

LIMITED,LT.BLUE ME.,8S4

sub89341-33160

main89341-33160-J7iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,BLUE ME.,8V2

sub89341-33160

main89341-33160-J7iGSV40..GD,PRD,PRE,SPVZ200808-201110

BLUE ME.,8V2

sub89341-33160

main89341-33160-J7iGSV40..ATX200908-201002

LIMITED,BLUE ME.,8V2

sub89341-33160

main89341-33160-P0iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,GRAY ME.,1G2

sub89341-33160

main89341-33160-P0iGSV40..ATX200908-201002

LIMITED,GRAY ME.,1G2

sub89341-33160

main89341-33160-P0iGSV40..GD,PRD,PRE,SPVZ200908-201110

GRAY ME.,1G2

sub89341-33160

89341BSENSOR, ULTRASONIC, NO.2

main89341-33140-A0iGSV40..ATX200704-201002

LIMITED,SUPER WHITE 2,061

sub89341-33140

main89341-33140-A0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,SUPER WHITE 2,061

sub89341-33140

main89341-33140-A0iGSV40..GD,PRD,SPVZ200610-201110

SUPER WHITE 2,061

sub89341-33140

main89341-33140-A2iACV40,AHV40,GSV40..GD,HBD,PRD200904-201110

WHITE PEARL CS.,070

sub89341-33140

main89341-33140-B0iGSV40..GD,PRD,SPVZ200610-201110

SILVER ME.,1D4

sub89341-33140

main89341-33140-B0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,SILVER ME.,1D4

sub89341-33140

main89341-33140-B0iGSV40..ATX200704-201002

LIMITED,SILVER ME.,1D4

sub89341-33140

main89341-33140-C0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,BLACK,209

sub89341-33140

main89341-33140-C0iGSV40..ATX200704-201002

LIMITED,BLACK,209

sub89341-33140

main89341-33140-C0iACV40,AHV40,GSV40..GD,HBD,PRD,SPVZ200610-201110

BLACK,209

sub89341-33140

main89341-33140-D0iGSV40..GD,PRD,SPVZ200610-201110

RED M.M.,3R3

sub89341-33140

main89341-33140-D0iGSV40..ATX200704-201002

LIMITED,RED M.M.,3R3

sub89341-33140

main89341-33140-D0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,RED M.M.,3R3

sub89341-33140

main89341-33140-E0iGSV40..ATX200704-200708

LIMITED,BEIGE M.M.,4N3

sub89341-33140

main89341-33140-E0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,BEIGE M.M.,4N3

sub89341-33140

main89341-33140-E0iGSV40..GD,PRD,SPVZ200610-200708

BEIGE M.M.,4N3

sub89341-33140

main89341-33140-E5iGSV40..PRD,SPVZ200708-200908

LIMITED,ORANGE ME.,4R8

sub89341-33140

main89341-33140-E5iGSV40..ATX200708-200908

ORANGE ME.,4R8

sub89341-33140

main89341-33140-F0iGSV40..ATX200704-200808

LIMITED,YELLOW M.M.,580

sub89341-33140

main89341-33140-F0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,YELLOW M.M.,580

sub89341-33140

main89341-33140-F0iGSV40..GD,PRD,SPVZ200610-200808

YELLOW M.M.,580

sub89341-33140

main89341-33140-G0iGSV40..GD,PRD,SPVZ200610-200708

GREEN M.M.,6U7

sub89341-33140

main89341-33140-G0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,GREEN M.M.,6U7

sub89341-33140

main89341-33140-G3iGSV40..ATX200708-201002

LIMITED,LT.OLIVE M.M.,6T1

sub89341-33140

main89341-33140-G3iGSV40..GD,PRD200708-201110

LT.OLIVE M.M.,6T1

sub89341-33140

main89341-33140-J0iGSV40..GD,PRD,SPVZ200610-200708

LT.BLUE ME.,8M7

sub89341-33140

main89341-33140-J0iGSV40..ATX200704-200708

LIMITED,LT.BLUE ME.,8M7

sub89341-33140

main89341-33140-J0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,LT.BLUE ME.,8M7

sub89341-33140

main89341-33140-J1iGSV40..ATX200704-200808

LIMITED,BLUE M.M.,8T0

sub89341-33140

main89341-33140-J1iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,BLUE M.M.,8T0

sub89341-33140

main89341-33140-J1iGSV40..GD,PRD,SPVZ200610-200808

BLUE M.M.,8T0

sub89341-33140

main89341-33140-J5iGSV40..ATX200708-200908

LIMITED,BLUE ME.,8T4

sub89341-33140

main89341-33140-J5iGSV40..ATX200708-200908

BLUE ME.,8T4

sub89341-33140

main89341-33140-J6iGSV40..ATX200808-201110

LT.BLUE ME.,8S4

sub89341-33140

main89341-33140-J6iGSV40..GD,PRD200808-201002

LIMITED,LT.BLUE ME.,8S4

sub89341-33140

main89341-33140-J7iGSV40..GD,SPVZ200808-201110

BLUE ME.,8V2

sub89341-33140

main89341-33140-J7iGSV40..ATX200908-201002

LIMITED,BLUE ME.,8V2

sub89341-33140

main89341-33140-P0iGSV40..ATX200908-201002

LIMITED,GRAY ME.,1G2

sub89341-33140

main89341-33140-P0iACV40,AHV40,GSV40..GD,HBD,PRD,SPVZ200906-201110

GRAY ME.,1G2

sub89341-33140

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iACV40,AHV40,GSV40..GD,HBD,PRD,PRE,SPVZ200610-200908

main89343-30010iGSV40..ATX200704-201002

LIMITED

main89343-30010iGSV40..ATX200908

LIMITED&BACK MONITOR-WITH

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33040-A0iACV40,AHV40,GSV40..GD,HBD,PRD,SPVZ200610-201110

SUPER WHITE 2,061

sub89348-33040

main89348-33040-A0iGSV40..ATX200704-201002

LIMITED,SUPER WHITE 2,061

sub89348-33040

main89348-33040-A0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,SUPER WHITE 2,061

sub89348-33040

main89348-33040-A2iACV40,AHV40,GSV40..GD,HBD,PRD200904-201110

WHITE PEARL CS.,070

sub89348-33040

main89348-33040-B0iGSV40..GD,PRD,SPVZ200610-201110

SILVER ME.,1D4

sub89348-33040

main89348-33040-B0iGSV40..ATX200704-201002

LIMITED,SILVER ME.,1D4

sub89348-33040

main89348-33040-B0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,SILVER ME.,1D4

sub89348-33040

main89348-33040-C0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,BLACK,209

sub89348-33040

main89348-33040-C0iGSV40..ATX200704-201002

LIMITED,BLACK,209

sub89348-33040

main89348-33040-C0iGSV40..GD,PRD,SPVZ200610-201110

BLACK,209

sub89348-33040

main89348-33040-D0iGSV40..ATX200704-201002

LIMITED,RED M.M.,3R3

sub89348-33040

main89348-33040-D0iACV40,AHV40,GSV40..(GD,HBD,PRD,SPVZ)..ARL200610-201110

RED M.M.,3R3

sub89348-33040

main89348-33040-D0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,RED M.M.,3R3

sub89348-33040

main89348-33040-E0iGSV40..GD,PRD,SPVZ200610-200708

BEIGE M.M.,4N3

sub89348-33040

main89348-33040-E0iGSV40..ATX200704-200708

LIMITED,BEIGE M.M.,4N3

sub89348-33040

main89348-33040-E0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,BEIGE M.M.,4N3

sub89348-33040

main89348-33040-E5iGSV40..ATX200708-200908

ORANGE ME.,4R8

sub89348-33040

main89348-33040-E5iGSV40..ATX200708-200908

LIMITED,ORANGE ME.,4R8

sub89348-33040

main89348-33040-F0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,YELLOW M.M.,580

sub89348-33040

main89348-33040-F0iGSV40..ATX200704-200808

LIMITED,YELLOW M.M.,580

sub89348-33040

main89348-33040-F0iGSV40..GD,PRD,SPVZ200610-200808

YELLOW M.M.,580

sub89348-33040

main89348-33040-G0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,GREEN M.M.,6U7

sub89348-33040

main89348-33040-G0iGSV40..GD,PRD,SPVZ200610-200708

GREEN M.M.,6U7

sub89348-33040

main89348-33040-G3iGSV40..GD,PRD200708-201110

LT.OLIVE M.M.,6T1

sub89348-33040

main89348-33040-G3iGSV40..GD,PRD200708-201002

LIMITED,LT.OLIVE M.M.,6T1

sub89348-33040

main89348-33040-J0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,LT.BLUE ME.,8M7

sub89348-33040

main89348-33040-J0iGSV40..GD,PRD,SPVZ200610-200708

LT.BLUE ME.,8M7

sub89348-33040

main89348-33040-J0iGSV40..ATX200704-200708

LIMITED,LT.BLUE ME.,8M7

sub89348-33040

main89348-33040-J1iGSV40..GD,PRD,SPVZ200610-200808

BLUE M.M.,8T0

sub89348-33040

main89348-33040-J1iGSV40..ATX200704-200808

LIMITED,BLUE M.M.,8T0

sub89348-33040

main89348-33040-J1iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,BLUE M.M.,8T0

sub89348-33040

main89348-33040-J5iGSV40..GD,PRD,SPVZ200708-200908

LIMITED,BLUE ME.,8T4

sub89348-33040

main89348-33040-J5iGSV40..ATX200708-200908

BLUE ME.,8T4

sub89348-33040

main89348-33040-J6iACV40,AHV40,GSV40..GD,HBD,PRD,SPVZ200808-201110

LT.BLUE ME.,8S4

sub89348-33040

main89348-33040-J6iGSV40..GD,PRD200808-201002

LIMITED,LT.BLUE ME.,8S4

sub89348-33040

main89348-33040-J7iACV40,AHV40,GSV40..GD,HBD,PRD,SPVZ200808-201110

BLUE ME.,8V2

sub89348-33040

main89348-33040-J7iGSV40..ATX200908-201002

LIMITED,BLUE ME.,8V2

sub89348-33040

main89348-33040-P0iGSV40..ATX200908-201002

LIMITED,GRAY ME.,1G2

sub89348-33040

main89348-33040-P0iACV40,AHV40,GSV40..GD,HBD,PRD,SPVZ200906-201110

GRAY ME.,1G2

sub89348-33040

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-33060-A0iGSV40..ATX200610-201110

SUPER WHITE 2,061

sub89348-33060

main89348-33060-A0iGSV40..ATX200704-201002

LIMITED,SUPER WHITE 2,061

sub89348-33060

main89348-33060-A0iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,SUPER WHITE 2,061

sub89348-33060

main89348-33060-A2iGSV40..GD200904-201110

WHITE PEARL CS.,070

sub89348-33060

main89348-33060-B0iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,SILVER ME.,1D4

sub89348-33060

main89348-33060-B0iGSV40..GD,PRD,PRE,SPVZ200610-201110

SILVER ME.,1D4

sub89348-33060

main89348-33060-B0iGSV40..ATX200704-201002

LIMITED,SILVER ME.,1D4

sub89348-33060

main89348-33060-C0iGSV40..ATX200704-201002

LIMITED,BLACK,209

sub89348-33060

main89348-33060-C0iGSV40..ATX200610-201110

BLACK,209

sub89348-33060

main89348-33060-C0iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,BLACK,209

sub89348-33060

main89348-33060-D0iGSV40..ATX200610-201110

RED M.M.,3R3

sub89348-33060

main89348-33060-D0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,RED M.M.,3R3

sub89348-33060

main89348-33060-D0iGSV40..ATX200704-201002

LIMITED,RED M.M.,3R3

sub89348-33060

main89348-33060-D0iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,RED M.M.,3R3

sub89348-33060

main89348-33060-E0iGSV40..GD,PRD,PRE,SPVZ200610-200708

BEIGE M.M.,4N3

sub89348-33060

main89348-33060-E0iGSV40..ATX200704-200708

LIMITED,BEIGE M.M.,4N3

sub89348-33060

main89348-33060-E5iGSV40..ATX200708-200908

LIMITED,ORANGE ME.,4R8

sub89348-33060

main89348-33060-E5iGSV40..ATX200708-200908

ORANGE ME.,4R8

sub89348-33060

main89348-33060-F0iGSV40..GD,PRD,SPVZ200610-200808

YELLOW M.M.,580

sub89348-33060

main89348-33060-F0iGSV40..ATX200704-200808

LIMITED,YELLOW M.M.,580

sub89348-33060

main89348-33060-F0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,YELLOW M.M.,580

sub89348-33060

main89348-33060-G0iGSV40..GD,PRD,SPVZ200610-200708

GREEN M.M.,6U7

sub89348-33060

main89348-33060-G0iGSV40..PRE200610-200704

BACK MONITOR-WITHOUT,GREEN M.M.,6U7

sub89348-33060

main89348-33060-G3iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,LT.OLIVE M.M.,6T1

sub89348-33060

main89348-33060-G3iGSV40..GD,PRD,PRE200708-201110

LT.OLIVE M.M.,6T1

sub89348-33060

main89348-33060-G3iGSV40..GD,PRD,PRE200708-201002

LIMITED,LT.OLIVE M.M.,6T1

sub89348-33060

main89348-33060-J0iGSV40..ATX200704-200708

LIMITED,LT.BLUE ME.,8M7

sub89348-33060

main89348-33060-J0iGSV40..GD,PRD,PRE,SPVZ200610-200708

LT.BLUE ME.,8M7

sub89348-33060

main89348-33060-J1iGSV40..ATX200704-200808

LIMITED,BLUE M.M.,8T0

sub89348-33060

main89348-33060-J1iGSV40..GD,PRD,PRE,SPVZ200610-200808

BLUE M.M.,8T0

sub89348-33060

main89348-33060-J5iGSV40..GD,PRD,PRE,SPVZ200708-200908

LIMITED,BLUE ME.,8T4

sub89348-33060

main89348-33060-J5iGSV40..GD,PRD,PRE,SPVZ200708-200908

BLUE ME.,8T4

sub89348-33060

main89348-33060-J8iGSV40..GD,PRD,PRE200808-201110

LT.BLUE ME.,8S4

sub89348-33060

main89348-33060-J8iGSV40..ATX200808-201002

LIMITED,LT.BLUE ME.,8S4

sub89348-33060

main89348-33060-J8iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,LT.BLUE ME.,8S4

sub89348-33060

main89348-33060-J9iGSV40..GD,PRD,PRE,SPVZ200808-201110

BLUE ME.,8V2

sub89348-33060

main89348-33060-J9iGSV40..ATX200908-201110

LIMITED&BACK MONITOR-WITH,BLUE ME.,8V2

sub89348-33060

main89348-33060-J9iGSV40..ATX200908-201002

LIMITED,BLUE ME.,8V2

sub89348-33060

main89348-33060-P3iGSV40..GD,PRD,PRE,SPVZ200908-201110

GRAY ME.,1G2

sub89348-33060

main89348-33060-P3iGSV40..GD,PRD,PRE,SPVZ200908-201110

LIMITED&BACK MONITOR-WITH,GRAY ME.,1G2

sub89348-33060

main89348-33060-P3iGSV40..ATX200908-201002

LIMITED,GRAY ME.,1G2

sub89348-33060

8934833090RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33090

8934A33010

main8934A-33010

9011906915

main90119-06915

10 parts on this diagram · 2 diagrams in section
