SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM (1/2) 0005 1ENGINE ROOM (1/2) 0006 1ENGINE ROOM 0007 1ENGINE ROOM (2/2) 0008 1ENGINE ROOM (2/2) 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0019 1STEERING 0020 1STEERING 0021 1SEAT 0022 1DOOR,ROOF,FLOOR & LUGGAGE

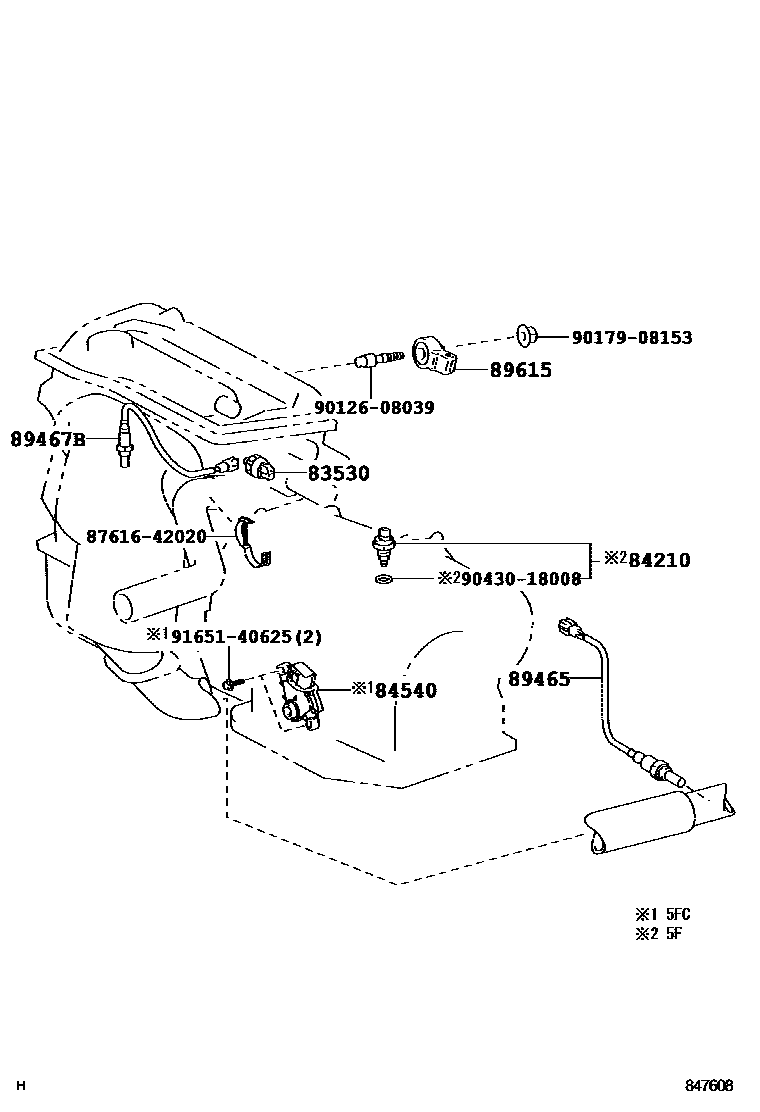

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV40200606-200908

DENSO

main83530-60020iGSV40200606-200908

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACV40..5F200606-201110

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-33010iGSV40200610-201110

main84540-48010iACV40..5FC200606-201110

89465SENSOR, OXYGEN

main89465-06210iGSV40200610-200908

LH

main89465-06220iGSV40200610-200908

RH

main89465-06230iACV40200606-200906

89467BSENSOR, AIR FUEL RATIO

main89467-33080iACV40200606-200906

main89467-33090iGSV40200610-200708

P/N LABEL=8946733090

main89467-33130iGSV40200610-200708

P/N LABEL=8946733130

main89467-33170iGSV40200708-200908

P/N LABEL=8946733170

main89467-33180iGSV40200708-200908

P/N LABEL=8946733180

main89467-33190iAHV40201001

89615SENSOR, KNOCK CONTROL

main89615-20090iACV40,AHV40200606-200908

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

11 parts on this diagram · 18 diagrams in section
