WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE 0007 1ENGINE 0008 1ENGINE 0009 1ENGINE 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1DOOR 0013 1FLOOR & ROOF 0014 1FLOOR & ROOF 0015 1HIGH VOLTAGE CABLE 0016 1SEAT 0017 1CLAMP & BRACKET 0018 1CLAMP & BRACKET 0019 1CLAMP & BRACKET 0020 1CABLE BOND 0021 1CABLE BOND 0022 1CONNECTOR 1/2 0023 1CONNECTOR 2/2

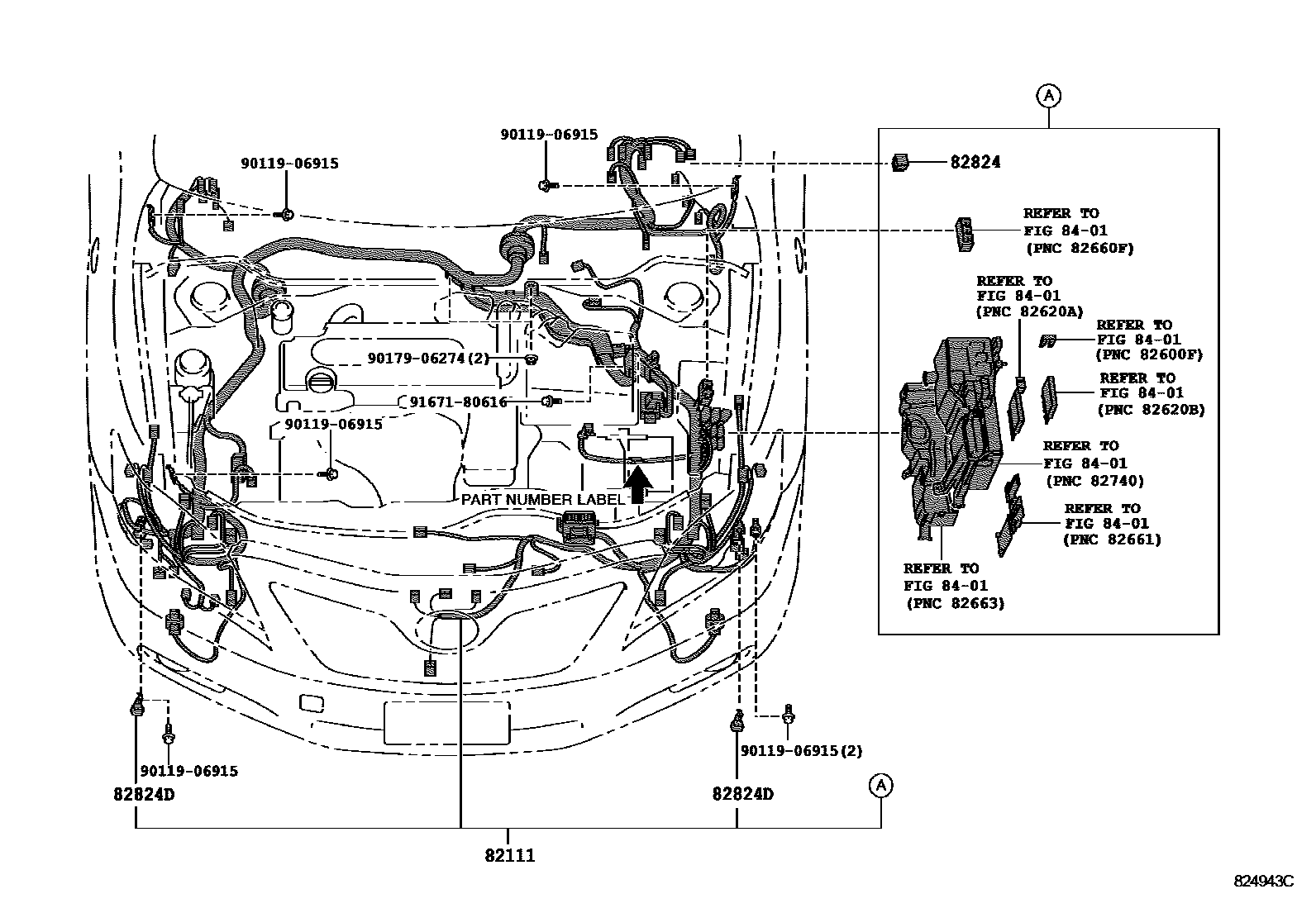

82111WIRE, ENGINE ROOM MAIN

main82111-06F90iACV40..5FC..ALT200606-200906

main82111-06G00iACV40..5FC..(ATEVA,SPV)200606-200708

main82111-06G10iACV40..GD200606-200707

sub82111-06G11

main82111-06G11iACV40..5FC..(ATEVA,GD,SPV)200708-200906

VEHICLE STABILITY CONT-WITH

main82111-06G11iACV40..5FC..ALT200904-200906

LIMITED&VEHICLE STABILITY CONT-WITH

main82111-06G20iGSV40..ATX,SPVS200610-200806

main82111-06G21iGSV40..ATX,SPVS200806-200908

main82111-06G30iGSV40..PRD200610-200806

main82111-06G30iGSV40..ATX200704-200806

LIMITED

main82111-06G31iGSV40..PRD200806-200908

LIMITED

main82111-06G40iGSV40..PRE200610-200806

main82111-06G41iGSV40..PRE200806-200908

main82111-06G50iACV40..GL200606-200906

main82111-06G60iACV40..GLX,SE200606-200906

WIRELESS DOOR LOCK-WITH

main82111-06G70iGSV40..TOU200610-200806

main82111-06G71iGSV40..TOU200806-200908

main82111-06G80iGSV40..GD200610-200806

main82111-06G81iGSV40..GD200806-200908

main82111-06L70iGSV40..SPVZ200610-200806

main82111-06L71iGSV40..SPVZ200806-200908

main82111-06M40iACV40..5F..ARL200606-200708

main82111-06M41iACV40..5F..ALT200708-200906

main82111-06N80iACV40..5F..ALT200708-200906

VEHICLE STABILITY CONT-WITH

main82111-06T10iACV40..5FC..ALT200906-200907

sub82111-06T11

main82111-06T11iACV40..5FC..ALT200908

main82111-06T20iACV40..5FC..(ATEVA,SPV)200906-200907

sub82111-06T21

main82111-06T21iACV40..5FC..ALT201002

LIMITED

main82111-06T21iACV40..5FC..(ATEVA,SPV)200908

main82111-06T30iACV40..GD200906-200907

sub82111-06T31

main82111-06T31iACV40..GD200908

main82111-06T40iACV40..5F..ARL200906-200907

sub82111-06T41

main82111-06T41iACV40..5F..ARL200908

main82111-06T50iGSV40..ATX,SPVS200908

main82111-06T60iGSV40..PRD200908

main82111-06T60iGSV40..ATX201002

LIMITED&BACK MONITOR-WITH

main82111-06T60iGSV40..ATX200908-201002

LIMITED

main82111-06T70iGSV40..SPVZ200908

main82111-06T80iGSV40..PRE200908

main82111-06T90iACV40..GL200906

main82111-06U00iACV40..GL200906-200908

WIRELESS DOOR LOCK-WITH

main82111-06U00iACV40..SE200906

main82111-06U00iACV40..GLX200908

FRONT FOG LAMP-WITH

main82111-06U10iGSV40..TOU200908

main82111-06U20iGSV40..GD200908

main82111-06V00iAHV40201001

main82111-06V30iACV40..5FC..ALT200904-200906

LIMITED

main82111-06V60iACV40..GL200908

WIRELESS DOOR LOCK-WITH

82824CONNECTOR, WIRING HARNESS

main82824-52280iACV40,AHV40,GSV40¥1,850200906

82824DCONNECTOR, WIRING HARNESS

main82824-48020iACV40,AHV40,GSV40..ATM..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVZ)¥1,990200906

8401

9011906915

main90119-06915¥60

9017906274

main90179-06274¥70

9167180616

main91671-80616¥60

7 parts on this diagram · 23 diagrams in section
