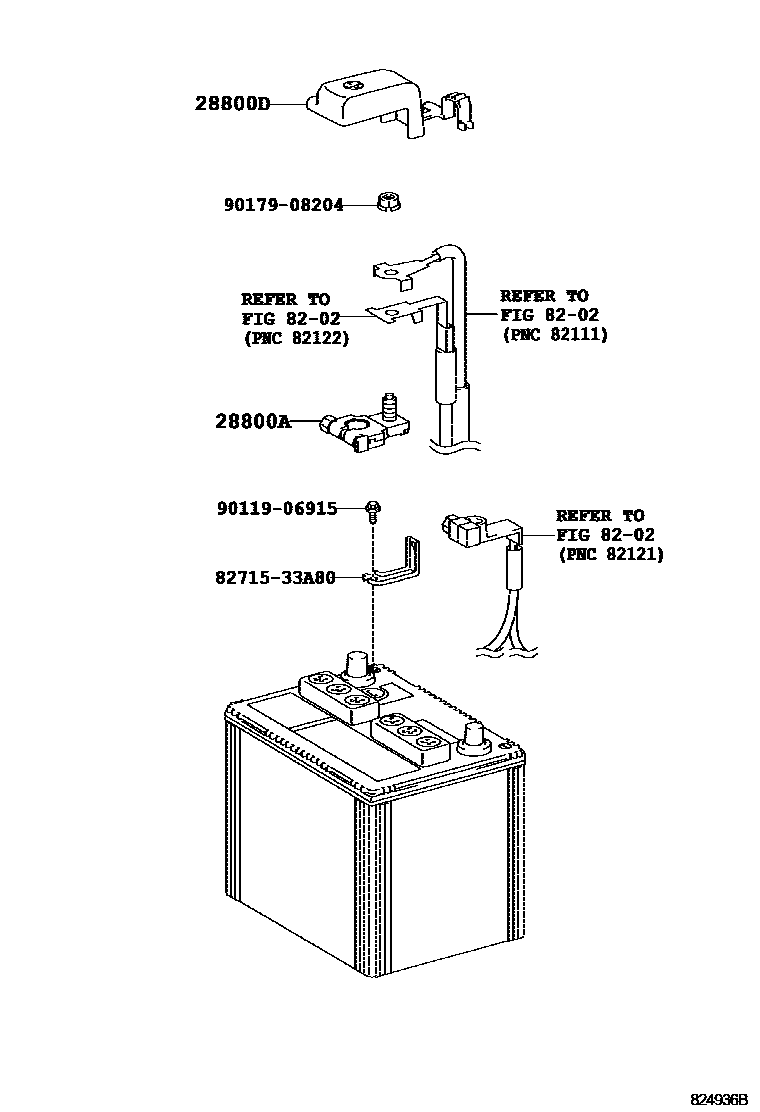

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-28060i2AZFXE..AHV40201001-201008

S65D26R

sub28800-28061¥68,100

main28800-28061i2AZFXE..AHV40¥68,100201009

S65D26R

sub28800-28062

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFXE..AHV40¥850201004

main90982-05061i2AZFE..ACV40¥850200606-200908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2GRFE..GSV40¥570200606-200908

8202

8271533A80BRACKET,WIRING HARNESS CLAMP

main82715-33A80¥480

9011906915

main90119-06915¥60

9017908204

main90179-08204¥140

7 parts on this diagram · 5 diagrams in section
