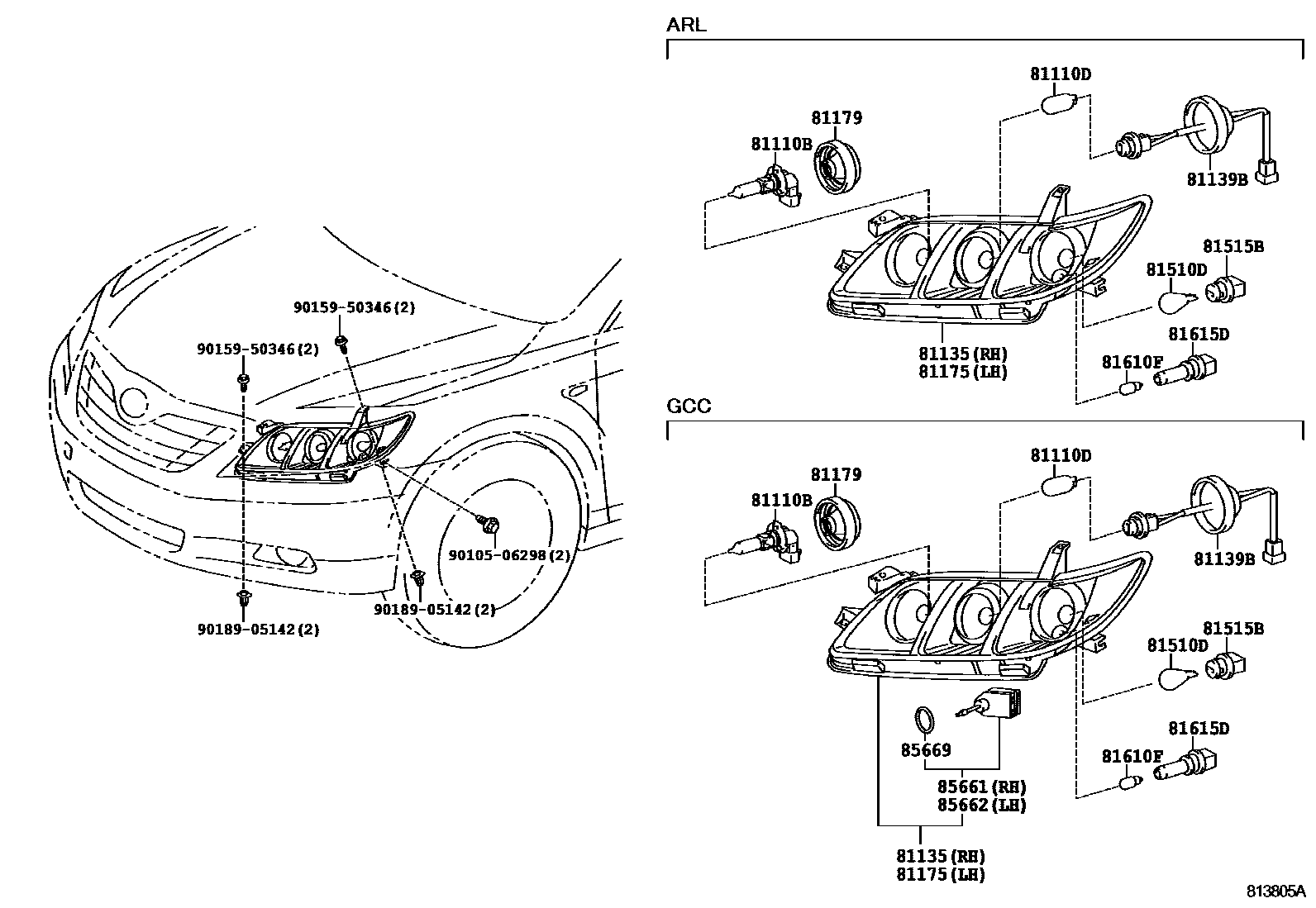

HEADLAMP

0001 1 0002 1 0003 1 0004 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13066iGSV40200610-201110

12V 65W,HALOGEN

main90981-8Y001iACV40200606-201110

12V 65W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iGSV40..ATX,PRD,SPVS,SPVZ,TOU200610-201110

12V 55W,HALOGEN

main90981-8Y003iACV40200606-201110

12V 55W

81135UNIT ASSY, HEADLAMP, RH

main81130-06341iGSV40..ATX,PRD200610-200908

main81130-06351iGSV40..SPVS,SPVZ200610-200908

main81130-06361iGSV40..TOU200610-200908

main81130-06650iGSV40..ATX,PRD200908-201110

main81130-06700iGSV40..SPVS,SPVZ200908-201110

main81130-06710iACV40..ALT,ATEVA,GD200906-201108

sub81130-06711

main81130-06711iACV40..ALT,ATEVA,GD201108-201110

main81130-06720iACV40..SPV200906-201108

sub81130-06721

main81130-06721iACV40..5FC..ALT201108-201110

LIMITED

main81130-06730iACV40..GL,GLX200906-201108

sub81130-06731

main81130-06731iACV40..GL,GLX201108-201110

main81130-06740iACV40..SE200906-201108

sub81130-06741

main81130-06741iACV40..SE201108-201110

LIMITED

main81130-06750iGSV40..TOU200908-201110

main81130-06770iAHV40201001-201108

sub81130-06771

main81130-06771iAHV40201108-201110

main81130-8Y006iACV40..ALT,ATEVA,GD200606-200906

main81130-8Y007iACV40..SPV200606-200906

main81130-8Y008iACV40..GL,GLX200606-200906

main81130-8Y009iACV40..SE200606-200906

main81145-06221iGSV40..GD200704-200908

main81145-06371iGSV40..PRE200610-200908

main81145-06460iGSV40..GD200908-201110

main81145-06680iGSV40..PRE200908-201110

main81145-8C005iGSV40..GD200610-200703

sub81145-06221

81139BSOCKET, HEADLAMP BULB

main81128-06710iACV40200906-201102

sub81128-06711

main81128-06711iACV40201102-201110

main81128-06770iAHV40201001-201102

sub81128-06771

main81128-06771iAHV40201102-201110

main81139-8Y002iACV40200606-200906

sub81139-06300

81175UNIT ASSY, HEADLAMP, LH

main81170-06341iGSV40..ATX,PRD200610-200908

main81170-06351iGSV40..SPVS,SPVZ200610-200908

main81170-06361iGSV40..TOU200610-200908

main81170-06650iGSV40..ATX,PRD200908-201110

main81170-06700iGSV40..SPVS,SPVZ200908-201110

main81170-06710iACV40..ALT,ATEVA,GD200906-201108

sub81170-06711

main81170-06711iACV40..ALT,ATEVA,GD201108-201110

main81170-06720iACV40..SPV200906-201108

sub81170-06721

main81170-06721iACV40..SPV201108-201110

LIMITED

main81170-06730iACV40..GL,GLX200906-201108

sub81170-06731

main81170-06731iACV40..GL,GLX201108-201110

main81170-06740iACV40..SE200906-201108

sub81170-06741

main81170-06741iACV40..SE201108-201110

LIMITED

main81170-06750iGSV40..TOU200908-201110

main81170-06770iAHV40201001-201108

sub81170-06771

main81170-06771iAHV40201108-201110

main81170-8Y006iACV40..ALT,ATEVA,GD200606-200906

main81170-8Y007iACV40..SPV200606-200906

main81170-8Y008iACV40..GL,GLX200606-200906

main81170-8Y009iACV40..SE200606-200906

main81185-06221iGSV40..GD200704-200908

main81185-06371iGSV40..PRE200610-200908

main81185-06460iGSV40..GD200908-201110

main81185-06680iGSV40..PRE200908-201110

main81185-8C005iGSV40..GD200610-200703

sub81185-06221

81179COVER, HEADLAMP SOCKET

main81179-8Y001iACV40,AHV40200606-201110

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGSV40200610-201110

12V 21W,AMBER

main99132-8Y001iACV40,AHV40200606-201110

12V 21W,YELLOW

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-8Y002iACV40200606-201110

main90069-81073iGSV40..ATX,PRD,PRE,SPVS,SPVZ,TOU200610-201110

main90075-60028iGSV40..GD200610-200908

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iACV40,AHV40,GSV40200606-201110

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81043iACV40200606-200906

main90069-81072iGSV40..ATX,PRD,PRE,SPVS,SPVZ,TOU200610-200908

main90075-8C006iGSV40..GD200610-200908

85661MOTOR, HEADLAMP LEVELING, RH

main85661-28010iGSV40..GD,PRE200908-200910

sub85661-28011

main85661-28011iGSV40..GD,PRE200910-201110

main85661-8Y002iACV40..GCC200606-201110

85662MOTOR, HEADLAMP LEVELING, LH

main85661-8Y002iACV40..GCC200606-201110

main85691-28010iGSV40..GD,PRE200908-200910

sub85691-28011

main85691-28011iGSV40..GD,PRE200910-201110

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-8Y002iACV40..GCC200606-201110

main90075-99120iGSV40..GD,PRE200908-201110

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

16 parts on this diagram · 4 diagrams in section
