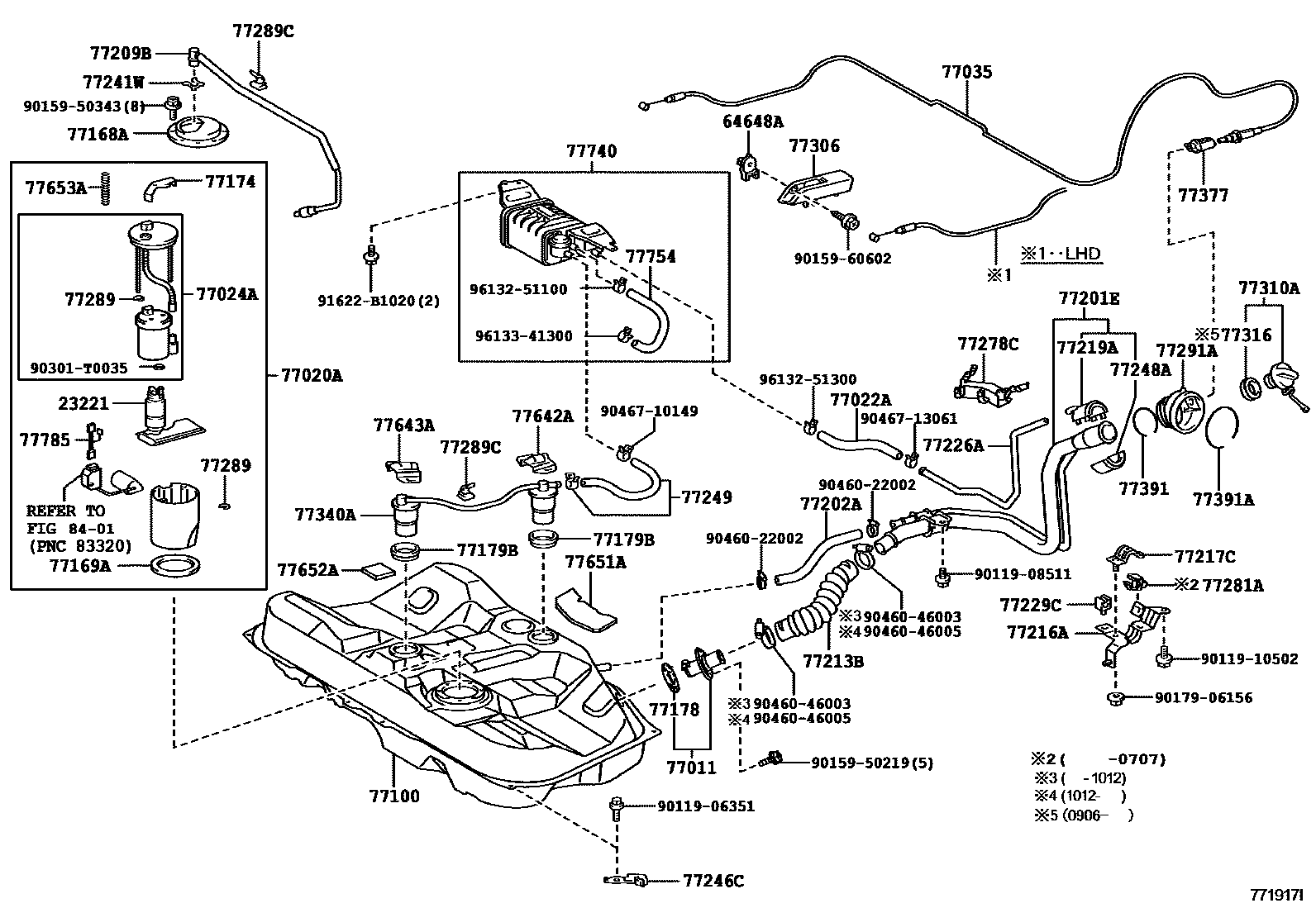

FUEL TANK & TUBE
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
sub77011-02040
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
*H,L=240
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
sub77178-0A010
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=240
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
sub77216-06070
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
sub77217-33020
77219ACOVER, FUEL TANK FILLER PIPE
sub77219-33040
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
77248AHOLDER, FUEL TANK FILLER PIPE COVER
sub77248-33040
77249HOSE, FUEL EMISSION
77281BRACKET, FUEL MAIN TUBE, NO.1
sub77281-33030
77281ACLAMP, FUEL FILLER PIPE
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77652ACUSHION, FUEL TANK, NO.2
sub77652-33020
77740CANISTER ASSY, CHARCOAL
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
8401
9011906351
main90119-06351
9011908511
main90119-08511
9011910502
main90119-10502
9015950219
main90159-50219
9015950343
main90159-50343
9015960602
main90159-60602
9017906156
main90179-06156
90301T0035
main90301-T0035
9046022002
main90460-22002
9046046003
main90460-46003
9046046005
main90460-46005
9046710149
main90467-10149
9046713061
main90467-13061
91622B1020
main91622-B1020
9613251100
main96132-51100
9613251300
main96132-51300
9613341300
main96133-41300
65 parts on this diagram · 6 diagrams in section
