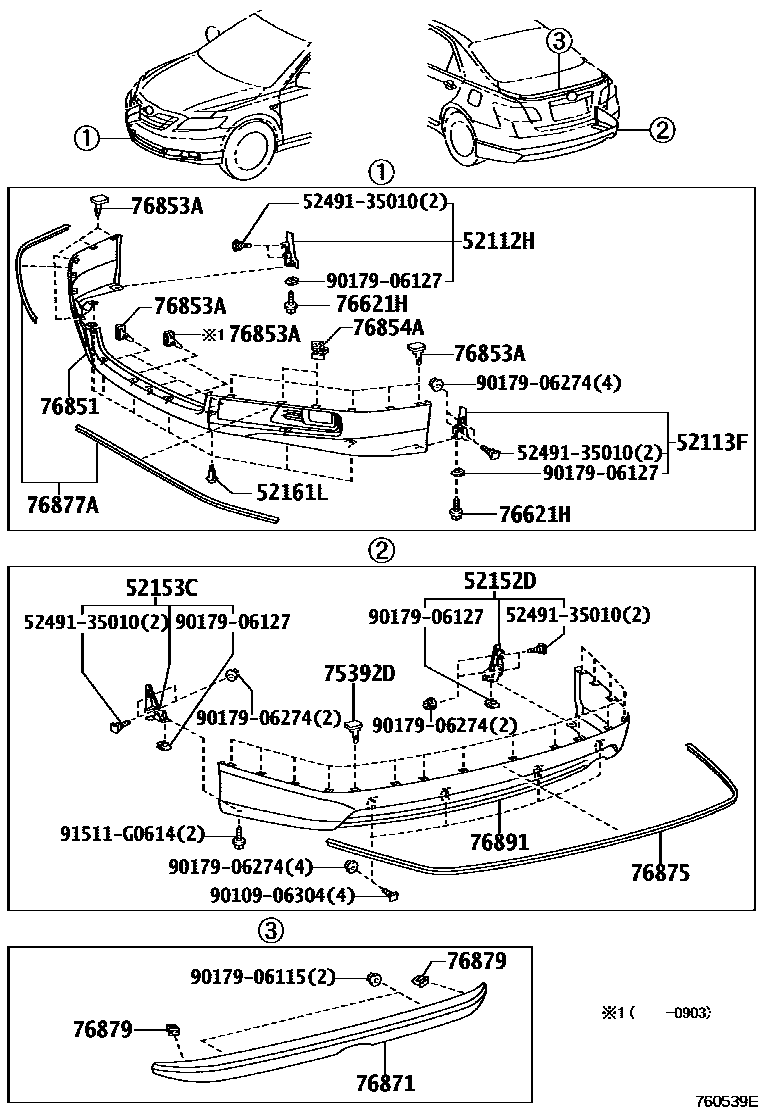

MUDGUARD & SPOILER

0001 1 0002 1 0003 1 0004 1 0005 1

52112HEXTENSION, FRONT BUMPER, RH

main52112-06020iACV40..SE,SPV200606-200906

sub52112-06010

main52112-06030iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main52112-06050iACV40..SE,SPV200906-201110

sub52112-06040

main52112-06060iGSV40..TOU200908-201110

AURION SPORTS PACKAGE

main52112-06060iGSV40..TOU200908-201110

AURION TRD PACKAGE

52113FEXTENSION, FRONT BUMPER, LH

main52113-06020iACV40..SE,SPV200606-200906

sub52113-06040

main52113-06030iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main52113-06050iACV40..SE,SPV200906-201110

sub52113-06040

main52113-06060iGSV40..SPVS,SPVZ200908-201110

AURION SPORTS PACKAGE

main52113-06060iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE

52152DEXTENSION, REAR BUMPER, RH

main52152-06020iACV40..SE,SPV200606-200906

sub52152-06010

main52152-06030iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main52152-06030iGSV40..SPVS,SPVZ200908

AURION SPORTS PACKAGE

main52152-06030iGSV40..SPVS,SPVZ200908

AURION TRD PACKAGE&BACK MONITOR-WITH

52153CEXTENSION, REAR BUMPER, LH

main52153-06020iACV40..SE,SPV200606-200906

sub52153-06010

main52153-06030iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main52153-06030iGSV40..SPVS,SPVZ200908

AURION SPORTS PACKAGE

main52153-06030iGSV40..SPVS,SPVZ200908

AURION TRD PACKAGE&BACK MONITOR-WITH

52161LPIECE, FRONT SPOILER

main52161-16010iACV40,GSV40..SE,SPV,SPVS,SPVZ200606-201110

sub52161-0K040

75392DRETAINER, OUTSIDE MOULDING

main75392-35200iACV40..SE,SPV200606-200908

76621HBOLT, NO.1

main91511-G0614iACV40,GSV40..SE,SPV,SPVS,SPVZ200606-201110

76851COVER, FRONT SPOILER

main76851-06903iACV40..SE,SPV200606-200906

main76851-06904iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main75392-35200iGSV40..SPVS,SPVZ200606-201110

main75392-35200iGSV40..SPVS,SPVZ200908-201110

AURION SPORTS PACKAGE

main75392-35200iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE

76854ARETAINER, FRONT SPOILER, NO.2

main76854-33020iACV40..SE,SPV200606-200906

76871SPOILER, REAR

main76085-06901iACV40..SE,SPV200606-201110

PAINT REQ.,REAR SPOILER-WITH(LIP TYPE)

sub76871-06905

main76085-06901iACV40..ALT200606-201110

PAINT REQ.

sub76871-06905

main76871-06907iGSV40..SPVS,SPVZ200610-201110

AURION TRD PACKAGE

sub76871-06915

main76871-06907iGSV40..SPVS,SPVZ200610-201110

PAINT REQ.,REAR SPOILER-WITH(WING TYPE)

sub76871-06915

main76871-06907iGSV40..SPVS,SPVZ200610-201110

PAINT REQ.

sub76871-06915

76875PROTECTOR, REAR SPOILER, NO.4

main76875-06030-B0iACV40..SE,SPV200606-201110

MEDIUM GRAY,061

sub76875-06020

main76875-06030-B1iACV40..SE,SPV200906-201110

DK GRAY,1D4 ,6T1 ,8S4

sub76875-06020

main76875-06030-B1iACV40..SE200606-200906

DK GRAY,1D4 ,4N3 ,580 ,6T1 ,6U7 ,8M7 ,8S4 ,8T4 ,8V2

sub76875-06020

main76875-06030-B1iACV40..SE200606-200906

DK GRAY,1D4 ,4N3 ,580 ,6U7 ,8M7 ,8T4 ,8V2

sub76875-06020

main76875-06030-C0iACV40..SE,SPV200906-201110

BLACK,1G2 ,209 ,3R3 ,4R1 ,8V2

sub76875-06020

main76875-06030-C0iACV40..SE,SPV200606-200906

BLACK,209 ,3R3 ,4R8 ,8T0

sub76875-06020

main76875-06040-B0iGSV40..SPVS,SPVZ200610-201110

AURION TRD PACKAGE,MEDIUM GRAY,061

main76875-06040-B0iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE&BACK MONITOR-WITH,MEDIUM GRAY,061

main76875-06040-B0iGSV40..SPVS,SPVZ200610-201110

MEDIUM GRAY,061

main76875-06040-B0iGSV40..SPVS,SPVZ200908-201110

AURION SPORTS PACKAGE,MEDIUM GRAY,061

main76875-06040-B1iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE&BACK MONITOR-WITH,DK GRAY,1D4 ,6T1 ,8S4

main76875-06040-B1iGSV40..SPVS,SPVZ200908-201110

AURION SPORTS PACKAGE,DK GRAY,1D4 ,6T1 ,8S4

main76875-06040-B1iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE,DK GRAY,1D4 ,6T1 ,8S4

main76875-06040-B1iGSV40..SPVS,SPVZ200610-200908

DK GRAY,1D4 ,4N3 ,580 ,6U7 ,8M7 ,8T4 ,8V2

main76875-06040-B1iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE,DK GRAY,1D4 ,4N3 ,580 ,6U7 ,8M7 ,8T4 ,8V2

main76875-06040-B1iGSV40..SPVS,SPVZ200908-201110

DK GRAY,1D4 ,6T1 ,8S4

main76875-06040-C0iGSV40..SPVS,SPVZ200908-201110

BLACK,1G2 ,209 ,3R3 ,4R1 ,8V2

main76875-06040-C0iGSV40..SPVS,SPVZ200610-200908

BLACK,209 ,3R3 ,4R8 ,8T0

main76875-06040-C0iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE,BLACK,209 ,3R3 ,4R8 ,8T0

main76875-06040-C0iGSV40..SPVS,SPVZ200908-201110

AURION SPORTS PACKAGE,BLACK,1G2 ,209 ,3R3 ,4R1 ,8V2

main76875-06040-C0iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE,BLACK,1G2 ,209 ,3R3 ,4R1 ,8V2

main76875-06040-C0iGSV40..SPVS,SPVZ200908-201110

AURION TRD PACKAGE&BACK MONITOR-WITH,BLACK,1G2 ,209 ,3R3 ,4R1 ,8V2

76877APROTECTOR, FRONT SPOILER

main76877-06040-B0iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE,MEDIUM GRAY,061

main76877-06040-B0iGSV40..SPVS,SPVZ200610-200908

MEDIUM GRAY,061

main76877-06040-B1iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE,DK GRAY,1D4 ,4N3 ,580 ,6U7 ,8M7 ,8T4 ,8V2

main76877-06040-B1iGSV40..SPVS,SPVZ200610-200908

DK GRAY,1D4 ,4N3 ,580 ,6U7 ,8M7 ,8T4 ,8V2

main76877-06040-C0iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE,BLACK,209 ,3R3 ,4R8 ,8T0

main76877-06040-C0iGSV40..SPVS,SPVZ200610-200908

BLACK,209 ,3R3 ,4R8 ,8T0

main76877-8Y001-B0iACV40..SE,SPV200606-200906

MEDIUM,GRAY

main76877-8Y001-B1iACV40..SE,SPV200606-200906

DK,GRAY

main76877-8Y001-C0iACV40..SE,SPV200606-200906

BLACK

76879CLIP, REAR SPOILER, NO.1

main76879-12040iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main76879-12040iGSV40..SPVS,SPVZ200610-200908

REAR SPOILER-WITH(WING TYPE)

main76879-24020iACV40..SE,SPV200606-200906

REAR SPOILER-WITH(LIP TYPE)

76891SPOILER, REAR NO.1

main76891-06903iGSV40..SPVS,SPVZ200908

AURION SPORTS PACKAGE

main76891-06903iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main76891-06903iGSV40..SPVS,SPVZ200908

AURION TRD PACKAGE&BACK MONITOR-WITH

main76891-06904iACV40..SE,SPV200606-200906

5249135010BOLT, BUMPER PAD

main52491-35010

9010906304

main90109-06304

9017906115

main90179-06115

9017906127

main90179-06127

9017906274

main90179-06274

91511G0614

main91511-G0614

21 parts on this diagram · 5 diagrams in section
