ARMREST & VISOR

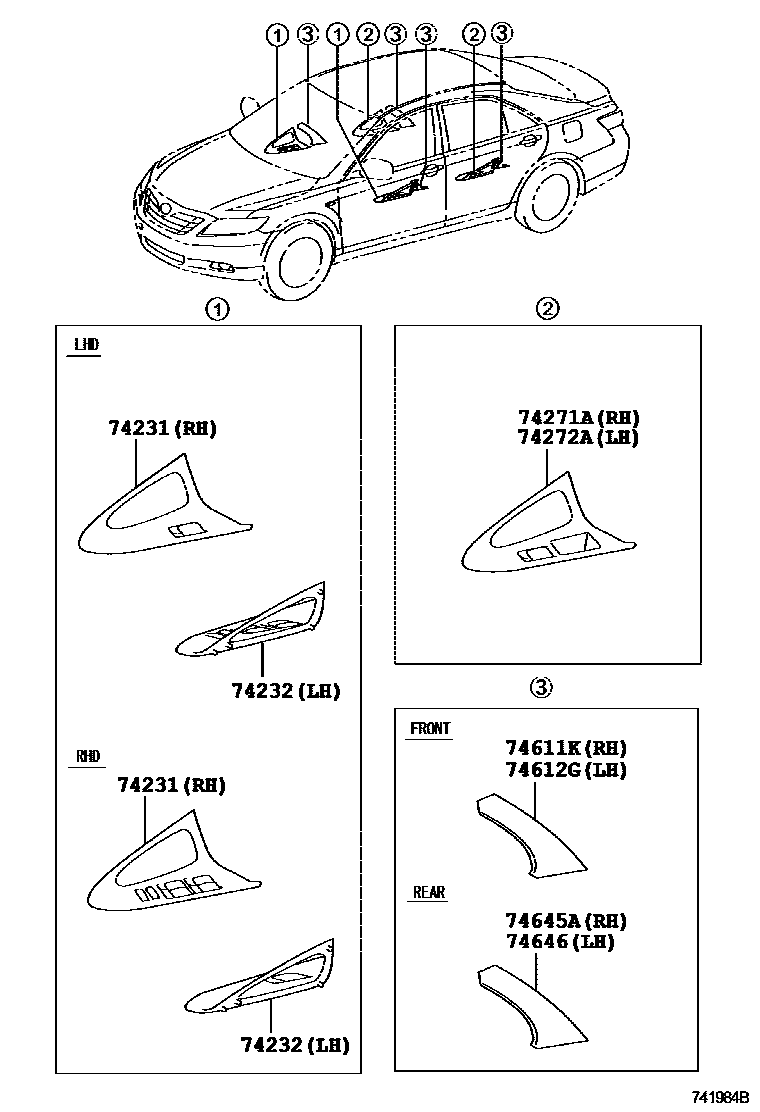

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-06130-E0i200908-201110
BROWN,TRIM1#,4#
main74231-06240-E2i200606-201110
BROWN,TRIM1#,4#
main74231-06250-B1i200606-200906
DK.GRAY,TRIM15
main74231-06250-B1i200606-200906
DK.GRAY,TRIM1#
main74231-06250-B2i200606-200906
GRAY,TRIM13
main74231-06250-E1i200606-200906
GREGE,TRIM4#
main74231-06260-B0i200606-200908
GRAY,TRIM1#
main74231-06260-E0i200606-200908
GREGE,TRIM4#
main74231-06270-B0i200606-201110
SILVER,TRIM1#
main74231-06280-E1i200606-201110
BROWN,TRIM1#,4#
main74231-06290-B0i200606-200906
SILVER,TRIM1#
main74231-06290-B0i200906-201110
SILVER,TRIM4#
main74231-06320-B0i200610-201110
DK.GRAY,TRIM15
sub74231-06200
main74231-06320-B0i200610-201110
DK.GRAY,TRIM1#
sub74231-06200
main74231-06320-B1i200610-200908
GRAY,TRIM13
sub74231-06200
main74231-06320-B1i200908-201110
GRAY,TRIM14
sub74231-06200
main74231-06320-B1i200906-201110
GRAY,TRIM13,14
sub74231-06200
main74231-06320-E0i200610-201110
GREGE,TRIM4#
sub74231-06200
main74231-06340-B0i200906-201110
GRAY,TRIM1#
main74231-06340-E0i200906-201110
GREGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-06240-E2i200606-201110
BROWN,TRIM1#,4#
main74232-06250-B1i200606-200906
DK.GRAY,TRIM1#
main74232-06250-B1i200606-200906
DK.GRAY,TRIM15
main74232-06250-B2i200606-200906
GRAY,TRIM13
main74232-06250-E1i200606-200906
GREGE,TRIM4#
main74232-06260-B0i200606-200908
GRAY,TRIM1#
main74232-06260-E0i200606-200908
GREGE,TRIM4#
main74232-06270-B0i200606-201110
SILVER,TRIM1#
main74232-06280-E1i200606-201110
BROWN,TRIM1#,4#
main74232-06290-B0i200606-200906
SILVER,TRIM1#
main74232-06290-B0i200906-201110
SILVER,TRIM4#
main74232-06330-B0i200610-201110
DK.GRAY,TRIM1#
main74232-06330-B0i200610-201110
DK.GRAY,TRIM15
main74232-06330-B0i200610-200908
AURION TRD PACKAGE,DK.GRAY,TRIM1#
main74232-06330-B0i200610-200908
AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 3(TRD),DK.GRAY,TRIM1#
main74232-06330-B0i200610-200908
AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 5(TRD),DK.GRAY,TRIM1#
main74232-06330-B1i200908-201110
GRAY,TRIM14
main74232-06330-B1i200610-200908
GRAY,TRIM13
main74232-06330-B1i200906-201110
GRAY,TRIM13,14
main74232-06330-E0i200610-201110
GREGE,TRIM4#
main74232-06340-E0i200908-201110
BROWN,TRIM1#,4#
main74232-06350-B0i200906-201110
GRAY,TRIM1#
main74232-06350-E0i200906-201110
GREGE,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-06080-E0i200908-201110
BROWN,TRIM1#,4#
main74271-06190-E2i200606-201110
BROWN,TRIM1#,4#
main74271-06200-B1i200606-200906
DK.GRAY,TRIM1#
main74271-06200-B1i200606-200906
DK.GRAY,TRIM15
main74271-06200-B2i200606-200906
GRAY,TRIM13
main74271-06200-E1i200606-200906
GREGE,TRIM4#
main74271-06210-B0i200606-201110
SILVER,TRIM1#
main74271-06220-B0i200606-200908
GRAY,TRIM1#
main74271-06220-E0i200606-200908
GREGE,TRIM4#
main74271-06230-E1i200606-201110
BROWN,TRIM1#,4#
main74271-06240-B0i200606-200906
SILVER,TRIM1#
main74271-06240-B0i200906-201110
SILVER,TRIM4#
main74271-06260-B0i200906-201110
GRAY,TRIM1#
main74271-06260-E0i200906-201110
GREGE,TRIM4#
main74271-06270-B0i200610-201110
DK.GRAY,TRIM15
main74271-06270-B0i200610-201110
DK.GRAY,TRIM1#
main74271-06270-B0i200610-200908
AURION TRD PACKAGE,DK.GRAY,TRIM1#
main74271-06270-B0i200610-200908
AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 3(TRD),DK.GRAY,TRIM1#
main74271-06270-B0i200610-200908
AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 5(TRD),DK.GRAY,TRIM1#
main74271-06270-B1i200610-200908
GRAY,TRIM13
main74271-06270-B1i200906-201110
GRAY,TRIM13,14
main74271-06270-B1i200908-201110
GRAY,TRIM14
main74271-06270-E0i200610-201110
GREGE,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-06080-E0i200908-201110
BROWN,TRIM1#,4#
main74272-06190-E2i200606-201110
BROWN,TRIM1#,4#
main74272-06200-B1i200606-200906
DK.GRAY,TRIM15
main74272-06200-B1i200606-200906
DK.GRAY,TRIM1#
main74272-06200-B2i200606-200906
GRAY,TRIM13
main74272-06200-E1i200606-200906
GREGE,TRIM4#
main74272-06210-B0i200606-201110
SILVER,TRIM1#
main74272-06220-B0i200606-200908
GRAY,TRIM1#
main74272-06220-E0i200606-200908
GREGE,TRIM4#
main74272-06230-E1i200606-201110
BROWN,TRIM1#,4#
main74272-06240-B0i200606-200906
SILVER,TRIM1#
main74272-06240-B0i200906-201110
SILVER,TRIM4#
main74272-06260-B0i200906-201110
GRAY,TRIM1#
main74272-06260-E0i200906-201110
GREGE,TRIM4#
main74272-06270-B0i200610-200908
AURION TRD PACKAGE,DK.GRAY,TRIM1#
main74272-06270-B0i200610-200908
AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 3(TRD),DK.GRAY,TRIM1#
main74272-06270-B0i200610-200908
AURION TRD PACKAGE&SEAT COVER MATERIAL-LETHER 5(TRD),DK.GRAY,TRIM1#
main74272-06270-B0i200610-201110
DK.GRAY,TRIM15
main74272-06270-B0i200610-201110
DK.GRAY,TRIM1#
main74272-06270-B1i200906-201110
GRAY,TRIM13,14
main74272-06270-B1i200610-200908
GRAY,TRIM13
main74272-06270-B1i200908-201110
GRAY,TRIM14
main74272-06270-E0i200610-201110
GREGE,TRIM4#
74611KCOVER, ASSIST GRIP, RH FRONT SIDE
main74612-06060-B1i200606-201110
DK.GRAY,TRIM15
main74612-06060-B1i200610-201110
DK.GRAY,TRIM1#
main74612-06060-B2i200606-201110
GRAY,TRIM1#
main74612-06060-B2i200606-200908
GRAY,TRIM13
main74612-06060-B2i200906-201110
GRAY,TRIM13,14
main74612-06060-B2i200908-201110
GRAY,TRIM14
main74612-06060-E0i200606-201110
GREGE,TRIM4#
main74612-06070i200606-201110
74612GCOVER, ASSIST GRIP, LH FRONT SIDE
main74611-06070-B1i200606-201110
DK.GRAY,TRIM15
main74611-06070-B1i200610-201110
DK.GRAY,TRIM1#
main74611-06070-B2i200606-200908
GRAY,TRIM13
main74611-06070-B2i200606-201110
GRAY,TRIM1#
main74611-06070-B2i200908-201110
GRAY,TRIM14
main74611-06070-B2i200906-201110
GRAY,TRIM13,14
main74611-06070-E0i200606-201110
GREGE,TRIM4#
main74611-06080i200606-201110
74645ACOVER, DOOR ASSIST GRIP, RH
main74645-06050-B1i200610-201110
DK.GRAY,TRIM1#
main74645-06050-B1i200606-201110
DK.GRAY,TRIM15
main74645-06050-B2i200908-201110
GRAY,TRIM14
main74645-06050-B2i200606-201110
GRAY,TRIM1#
main74645-06050-B2i200606-200908
GRAY,TRIM13
main74645-06050-B2i200906-201110
GRAY,TRIM13,14
main74645-06050-E0i200606-201110
GREGE,TRIM4#
main74645-06060i200906-201110
main74645-06060i200606-200908
METALLIC
74646COVER, DOOR ASSIST GRIP, LH
main74646-06050-B1i200610-201110
DK.GRAY,TRIM1#
main74646-06050-B1i200606-201110
DK.GRAY,TRIM15
main74646-06050-B2i200606-200908
GRAY,TRIM13
main74646-06050-B2i200606-201110
GRAY,TRIM1#
main74646-06050-B2i200906-201110
GRAY,TRIM13,14
main74646-06050-B2i200908-201110
GRAY,TRIM14
main74646-06050-E0i200606-201110
GREGE,TRIM4#
main74646-06060i200606-200908
METALLIC
main74646-06060i200906-201110

8 parts on this diagram · 2 diagrams in section
