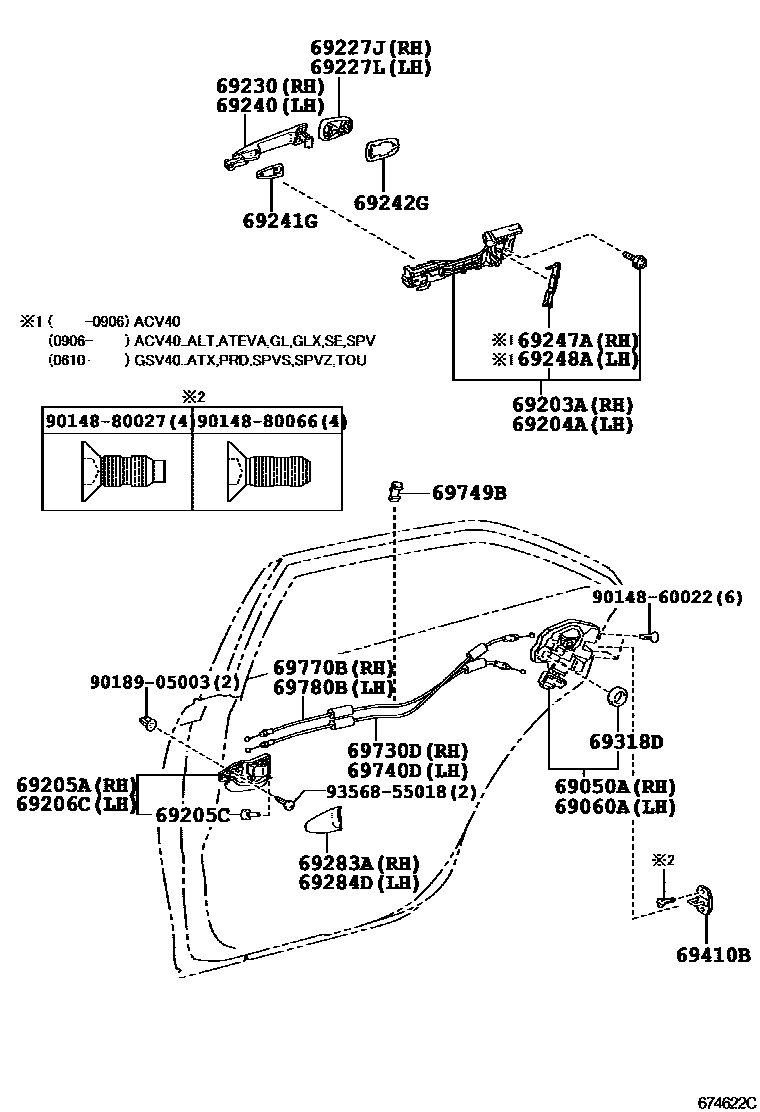

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-06090iACV40200606-200908

sub69050-33120

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-06090iACV40,AHV40,GSV40200606-200908

sub69060-33120

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-06040iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,SPVZ,TOU200606-200908

sub69203-33030

main69203-33030iGSV40..GD,PRE200610-200908

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-06040iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,SPVZ,TOU200606-200908

sub69204-33030

main69204-33030iGSV40..GD,PRE200610-200908

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-06040-B0iGSV40..ATX200610-200908

GRAY,TRIM13

sub69205-42030

main69205-06040-B1iGSV40..ATX200908-201110

GRAY,TRIM1#

sub69205-42030

main69205-06040-B1iGSV40..ATX200908-201110

GRAY,TRIM14

sub69205-42030

main69205-06040-C0iACV40,GSV40..ALT,SPVS200606-200908

BLACK,TRIM1#

sub69205-42030

main69205-06040-C0iACV40,GSV40..GL,TOU200606-200908

BLACK,TRIM1#,4#

sub69205-42030

main69205-06040-C0iGSV40..ATX200610-200908

BLACK,TRIM15

sub69205-42030

main69205-06040-C1iGSV40..ATX200908-201110

BLACK,TRIM15

sub69205-42030

main69205-06040-C1iACV40..GL200906-201110

BLACK,TRIM1#

sub69205-42030

main69205-06040-C1iACV40,GSV40..ALT,SPVS200906-201110

BLACK,TRIM1#,4#

sub69205-42030

main69205-06040-E0iGSV40..TOU200908-201110

GREGE,TRIM4#

sub69205-42030

main69205-06050-C0iACV40..SE200906-201110

BLACK,TRIM4#

sub69205-33090

main69205-06050-C0iACV40..SE200606-201110

BLACK,TRIM1#,4#

sub69205-33090

main69205-06050-C0iACV40,GSV40..SPV,SPVZ200606-201110

BLACK,TRIM1#

sub69205-33090

main69205-06050-C0iACV40..GL201104-201110

LIMITED,BLACK,TRIM4#

sub69205-33090

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90089-54015iACV40,AHV40,GSV40200606-200908

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-06040-B0iGSV40..ATX200610-200908

GRAY,TRIM13

main69206-06040-B1iGSV40..ATX200908-201110

GRAY,TRIM1#

main69206-06040-B1iGSV40..TOU200908-201110

GRAY,TRIM14

main69206-06040-C0iGSV40..ATX200610-200908

BLACK,TRIM15

main69206-06040-C0iACV40,GSV40..ALT,SPVS200606-200908

BLACK,TRIM1#,4#

main69206-06040-C0iACV40,GSV40..ALT,SPVS200606-200908

BLACK,TRIM1#

main69206-06040-C1iACV40..GL200906-201110

BLACK,TRIM1#

main69206-06040-C1iACV40,GSV40..ALT,SPVS200906-201110

BLACK,TRIM1#,4#

main69206-06040-C1iGSV40..ATX200908-201110

BLACK,TRIM15

main69206-06040-E0iGSV40..TOU200908-201110

GREGE,TRIM4#

main69206-06050-C0iACV40..SE200606-201110

BLACK,TRIM1#

sub69206-33100

main69206-06050-C0iACV40,GSV40..SE,SPV,SPVZ200606-201110

BLACK,TRIM1#,4#

sub69206-33100

main69206-06050-C0iACV40..SE200906-201110

BLACK,TRIM4#

sub69206-33100

main69206-06050-C0iACV40..GL201104-201110

LIMITED,BLACK,TRIM4#

sub69206-33100

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69207-30040-A4iGSV40..GD,PRE200610-201110

DIAMOND WHITE,061

sub69207-30040

main69207-30040-A5iACV40,AHV40,GSV40..GD,HBD,PRE200904-201110

WHITE PEARL CS.,070

sub69207-30040

main69207-30040-B4iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

SILVER ME.,1D4

sub69207-30040

main69207-30040-C2iGSV40..GD,PRE200610-201110

BLACK MC.,209

sub69207-30040

main69207-30040-D2iACV40,AHV40..GD,HBD200906-201110

RED M.M.,3R3

sub69207-30040

main69207-30040-E1iGSV40..GD,PRE200610-200708

BEIGE M.M.,4N3

sub69207-30040

main69207-30040-G4iGSV40..GD,PRE200708-201110

LT.OLIVE M.M.,6T1

sub69207-30040

main69207-30040-J5iGSV40..GD,PRE200610-200708

LT.BLUE ME.,8M7

sub69207-30040

main69207-30040-J9iGSV40..GD,PRE200708-200908

BLUE ME.,8T4

sub69207-30040

main69207-30040-P0iACV40,AHV40,GSV40..GD,HBD,PRE200906-201110

GRAY ME.,1G2

sub69207-30040

main69207-30040-R1iACV40,AHV40,GSV40..GD,HBD,PRE200808-201110

LT.BLUE ME.,8S4

sub69207-30040

main69207-30040-R2iGSV40..GD200808-201110

BLUE ME.,8V2

sub69207-30040

main69227-06060iACV40..GD;GSV40..TOU200606-201110

*CR

sub69227-30070

main69227-06904iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,SPVZ200606-201110

LESS COLOR

sub69227-60020

main69227-06904iGSV40..TOU200908-201110

LESS COLOR,AURION SPORTS PACKAGE

sub69227-60020

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69207-30040-A4iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

DIAMOND WHITE,061

sub69207-30040

main69207-30040-A5iACV40,AHV40,GSV40..GD,HBD,PRE200904-201110

WHITE PEARL CS.,070

sub69207-30040

main69207-30040-B4iGSV40..GD,PRE200610-201110

SILVER ME.,1D4

sub69207-30040

main69207-30040-C2iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

BLACK MC.,209

sub69207-30040

main69207-30040-D2iACV40,AHV40..GD,HBD200906-201110

RED M.M.,3R3

sub69207-30040

main69207-30040-E1iGSV40..GD,PRE200610-200708

BEIGE M.M.,4N3

sub69207-30040

main69207-30040-G4iACV40,AHV40,GSV40..GD,HBD,PRE200708-201110

LT.OLIVE M.M.,6T1

sub69207-30040

main69207-30040-J5iGSV40..GD,PRE200610-200708

LT.BLUE ME.,8M7

sub69207-30040

main69207-30040-J9iGSV40..GD,PRE200708-200908

BLUE ME.,8T4

sub69207-30040

main69207-30040-P0iACV40,AHV40,GSV40..GD,HBD,PRE200906-201110

GRAY ME.,1G2

sub69207-30040

main69207-30040-R1iGSV40..GD,PRE200808-201110

LT.BLUE ME.,8S4

sub69207-30040

main69207-30040-R2iACV40,AHV40,GSV40..GD,HBD,PRE200808-201110

BLUE ME.,8V2

sub69207-30040

main69227-06060iGSV40..TOU200606-201110

*CR

sub69227-30070

main69227-06904iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,SPVZ200606-201110

LESS COLOR

sub69227-60020

main69227-06904iGSV40..TOU200908-201110

LESS COLOR,AURION SPORTS PACKAGE

sub69227-60020

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-06080iGSV40..TOU200606-201110

PLATED

sub69210-58010

main69210-22240-A4iGSV40..GD,PRE200610-201110

DIAMOND WHITE,061

sub69210-22240

main69210-22240-A5iGSV40..GD200904-201110

WHITE PEARL CS.,070

sub69210-22240

main69210-22240-B3iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

SILVER ME.,1D4

sub69210-22240

main69210-22240-C1iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

BLACK MC.,209

sub69210-22240

main69210-22240-D2iACV40,AHV40..GD,HBD200906-201110

RED M.M.,3R3

sub69210-22240

main69210-22240-E1iGSV40..GD,PRE200610-200708

BEIGE M.M.,4N3

sub69210-22240

main69210-22240-G4iGSV40..GD,PRE200708-201110

LT.OLIVE M.M.,6T1

sub69210-22240

main69210-22240-J4iGSV40..GD,PRE200610-200708

LT.BLUE ME.,8M7

sub69210-22240

main69210-22240-J9iGSV40..GD,PRE200708-200908

BLUE ME.,8T4

sub69210-22240

main69210-22240-L0iACV40,AHV40,GSV40..GD,HBD,PRE200906-201110

GRAY ME.,1G2

sub69210-22240

main69210-22240-R1iACV40,AHV40,GSV40..GD,HBD,PRE200808-201110

LT.BLUE ME.,8S4

sub69210-22240

main69210-22240-R2iACV40,AHV40,GSV40..GD,HBD,PRE200808-201110

BLUE ME.,8V2

sub69210-22240

main69211-06904iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS200606-201110

PAINT REQ.

sub69211-28070

main69211-06904iGSV40..TOU200908-201110

PAINT REQ.,AURION SPORTS PACKAGE

sub69211-28070

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-06080iGSV40..TOU200606-201110

PLATED

sub69210-58010

main69210-22240-A4iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

DIAMOND WHITE,061

sub69210-22240

main69210-22240-A5iACV40,AHV40,GSV40..GD,HBD,PRE200904-201110

WHITE PEARL CS.,070

sub69210-22240

main69210-22240-B3iACV40,AHV40,GSV40..GD,HBD,PRE200610-201110

SILVER ME.,1D4

sub69210-22240

main69210-22240-C1iGSV40..GD,PRE200610-201110

BLACK MC.,209

sub69210-22240

main69210-22240-D2iACV40,AHV40..GD,HBD200906-201110

RED M.M.,3R3

sub69210-22240

main69210-22240-E1iGSV40..GD,PRE200610-200708

BEIGE M.M.,4N3

sub69210-22240

main69210-22240-G4iGSV40..GD,PRE200708-201110

LT.OLIVE M.M.,6T1

sub69210-22240

main69210-22240-J4iGSV40..GD,PRE200610-200708

LT.BLUE ME.,8M7

sub69210-22240

main69210-22240-J9iGSV40..GD,PRE200708-200908

BLUE ME.,8T4

sub69210-22240

main69210-22240-L0iACV40,AHV40,GSV40..GD,HBD,PRE200906-201110

GRAY ME.,1G2

sub69210-22240

main69210-22240-R1iGSV40..GD,PRE200808-201110

LT.BLUE ME.,8S4

sub69210-22240

main69210-22240-R2iGSV40..GD200808-201110

BLUE ME.,8V2

sub69210-22240

main69211-06904iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,SPVZ200606-201110

PAINT REQ.

sub69211-28070

main69211-06904iGSV40..TOU200908-201110

PAINT REQ.,AURION SPORTS PACKAGE

sub69211-28070

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-28060iACV40200606-200908

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-60030iACV40200606-200908

69247APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, RH

main69247-06040iACV40,GSV40..ALT,ATEVA,ATX,GL,GLX,PRD,SE,SPV,SPVS,SPVZ,TOU200606-200908

69248APLATE, REAR DOOR OUTSIDE HANDLE RELEASE, LH

main69248-06040iACV40200606-200908

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-06020-B0iGSV40..TOU200908-201110

GRAY,TRIM14

sub69283-33040

main69283-06020-B0iGSV40..TOU200610-201110

GRAY,TRIM13

sub69283-33040

main69283-06020-C0iACV40,GSV40..ALT,SPV,SPVS,SPVZ200606-201110

BLACK,TRIM1#

sub69283-33040

main69283-06020-C0iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200606-201110

BLACK,TRIM1#,4#

sub69283-33040

main69283-06020-C0iGSV40..ATX200610-201110

BLACK,TRIM15

sub69283-33040

main69283-06020-C0iACV40..SE200906-201110

BLACK,TRIM4#

sub69283-33040

main69283-06020-C0iGSV40..TOU200908-201110

BLACK,TRIM13,40

sub69283-33040

main69283-06020-C0iACV40..GL201104-201110

LIMITED,BLACK,TRIM4#

sub69283-33040

main69283-06020-E0iGSV40..TOU200908-201110

GREGE,TRIM40,41

sub69283-33040

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-06020-B0iGSV40..ATX200908-201110

GRAY,TRIM14

sub69284-33040

main69284-06020-B0iGSV40..ATX200610-201110

GRAY,TRIM13

sub69284-33040

main69284-06020-C0iACV40..SE200906-201110

BLACK,TRIM4#

sub69284-33040

main69284-06020-C0iACV40..SE200606-201110

BLACK,TRIM1#

sub69284-33040

main69284-06020-C0iACV40..SE200606-201110

BLACK,TRIM1#,4#

sub69284-33040

main69284-06020-C0iGSV40..TOU200908-201110

BLACK,TRIM13,40

sub69284-33040

main69284-06020-C0iGSV40..TOU200610-201110

BLACK,TRIM15

sub69284-33040

main69284-06020-C0iACV40..GL201104-201110

LIMITED,BLACK,TRIM4#

sub69284-33040

main69284-06020-E0iGSV40..TOU200908-201110

GREGE,TRIM40,41

sub69284-33040

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iACV40200606-200908

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-06010iGSV40200606-200908

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-06070iACV40200606-200908

sub69730-33070

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-06070iGSV40200606-200908

sub69730-33070

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iACV40200606-200908

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-06060iACV40200606-200908

sub69770-33030

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-06060iACV40200606-200908

sub69770-33030

9014860022

main90148-60022

9014880027

main90148-80027

9014880066

main90148-80066

9018905003

main90189-05003

9356855018

main93568-55018

29 parts on this diagram · 1 diagram in section
