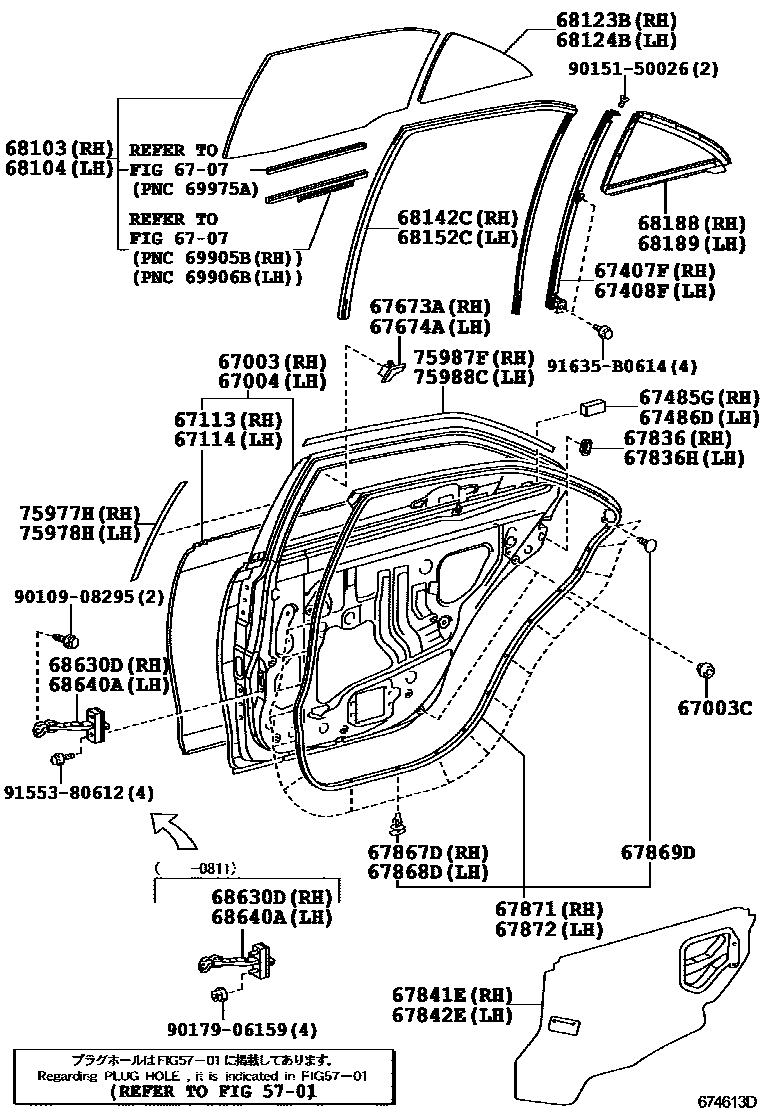

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06120iACV40200606-200609

sub67003-06121

main67003-06121iACV40,GSV40..ALT,ATEVA,GD,GL,GLX,SE,TOU200610-200908

main67003-06130iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

67003CCUSHION, REAR DOOR PANEL

main90541-09117iACV40200606-200908

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06120iACV40200606-200609

sub67004-06121

main67004-06121iACV40200610-200908

main67004-06130iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-06070iACV40200606-200908

main67113-06080iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

sub67113-33080

67114PANEL, REAR DOOR, OUTER LH

main67114-06070iACV40200606-200908

main67114-06080iACV40,AHV40,GSV40..ATX,HBD,PRD,PRE,SPV,SPVS,SPVZ200906

sub67114-33080

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-33070iACV40200606-200908

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-33070iACV40200606-200908

67485GSEAL, REAR DOOR REAR LOWER FRAME, RH

main67482-06020iACV40200606-200908

67486DSEAL, REAR DOOR REAR LOWER FRAME, LH

main67482-06020iACV40200606-200908

67673AGARNISH, REAR DOOR FRAME, RH

main67673-06050iGSV40200606-200908

sub67673-33100

67674AGARNISH, REAR DOOR FRAME, LH

main67674-06050iACV40200606-200908

sub67674-33100

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iACV40,AHV40,GSV40200606-200908

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iGSV40200606-200908

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06120iGSV40..ARL;ACV40,AHV40200606-200906

main67841-06140iGSV40200610-200908

sub67841-06090

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06120iACV40200606-200906

main67842-06140iGSV40..GCC200610-200908

sub67842-06090

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iGSV40200606-200908

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iACV40200606-200908

67869DCLIP, DOOR WEATHERSTRIP

main90467-05017-C0iACV40,GSV40200606-201110

BLACK

sub90467-05017

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06070iACV40200606-200908

sub67871-33080

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06070iACV40200606-200908

sub67872-33080

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-06140iACV40200606-200908

*TEM,T=4.0,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-06140iACV40200606-200908

*TEM,T=4.0,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06100iACV40200606-200908

*TEM,T=3.5,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06100iACV40200606-200908

*TEM,T=3.5,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-06060iACV40200606-200908

sub68142-33090

68152CRUN, REAR DOOR GLASS, LH

main68152-06060iACV40200606-200908

sub68152-33090

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-06050iACV40,GSV40200606-200611

sub68188-33040

main68188-06051iACV40200611-200908

sub68188-33041

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-06050iACV40,GSV40200606-200611

sub68189-33040

main68189-06051iACV40200611-200908

sub68189-33041

68630DCHECK ASSY, REAR DOOR, RH

main68630-06060iACV40,GSV40200606-200811

sub68630-06061

sub91553-80612

main68630-06061iACV40200811-200908

sub68630-33070

68640ACHECK ASSY, REAR DOOR, LH

main68640-06060iACV40,GSV40200606-200811

sub68640-06061

sub91553-80612

main68640-06061iACV40200811-200908

sub68640-33070

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-06020iACV40,AHV40,GSV40200606-200908

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-06020iACV40,AHV40,GSV40200606-200908

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-06020iACV40200606-200908

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-06020iACV40200606-200908

9010908295

main90109-08295

9015150026

main90151-50026

9017906159

main90179-06159

9155380612

main91553-80612

91635B0614

main91635-B0614

41 parts on this diagram · 2 diagrams in section
