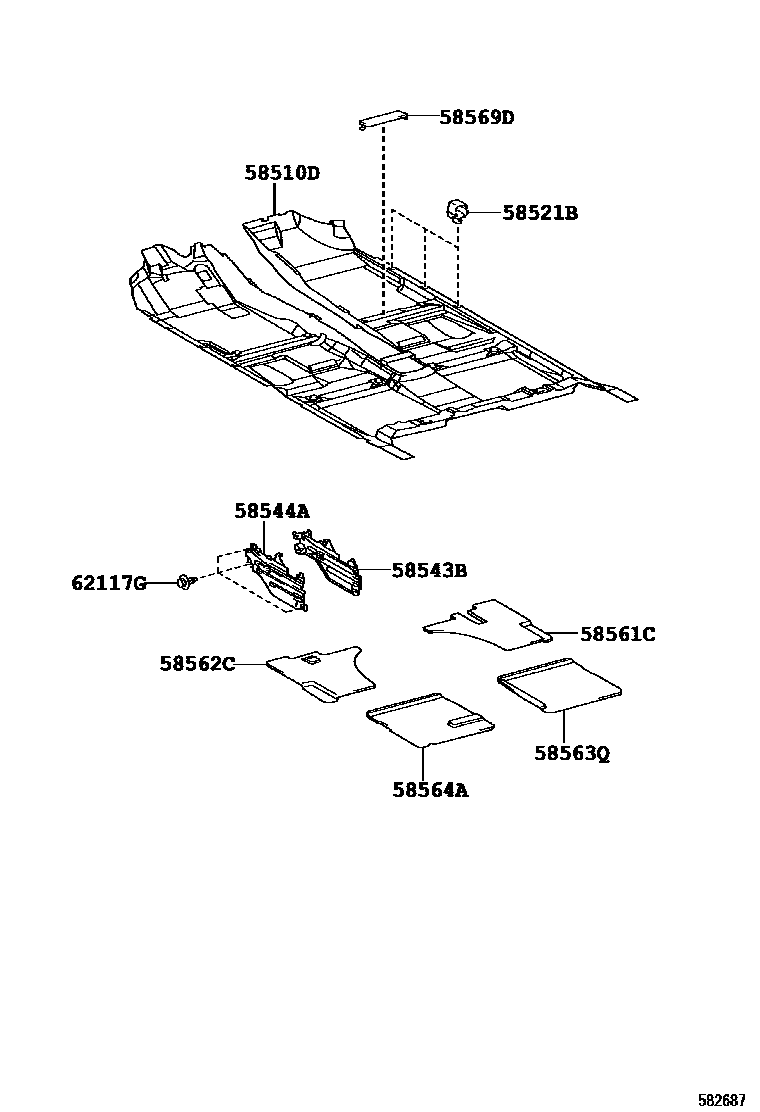

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-06310-B2iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200908

MD. GRAY,TRIM1#

main58510-06310-B3iACV40..SE200606-200906

DK. GRAY FLOOR CARPET,TRIM1#

main58510-06310-E1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-200908

GREGE,TRIM4#

main58510-06320-B2iACV40..5F..ALT200606-200906

MD. GRAY,TRIM13

main58510-06320-B3iACV40..5F..ALT200606-200906

DK. GRAY FLOOR CARPET,TRIM1#

main58510-06320-B3iACV40..5F..SPV200606-200906

DK. GRAY FLOOR CARPET,TRIM15

main58510-06330-B2iACV40,GSV40..ATM..(ALT,ATX)200606-200908

MD. GRAY,TRIM13

main58510-06330-B3iACV40,GSV40..ATM..(ALT,ATX)200606-200908

DK. GRAY FLOOR CARPET,TRIM15

main58510-06330-B3iACV40,GSV40..ATM..(ALT,ATX)200606-200908

DK. GRAY FLOOR CARPET,TRIM1#

main58510-06330-E1iACV40,GSV40..(ATEVA,GD,PRD,PRE)..ARL200606-200908

GREGE,TRIM4#

main58510-06411-B0iACV40..GL200906-201110

GRAY,TRIM1#

main58510-06411-B0iACV40..GL201012-201110

GRAY,TRIM13

main58510-06411-B1iACV40..GL201012-201110

DK. GRAY FLOOR CARPET,TRIM12

main58510-06411-E0iACV40,GSV40..GCC200906-201110

GREGE,TRIM4#

main58510-06420-B0iACV40..5F..ALT200906-201110

MD. GRAY,TRIM13,14

main58510-06420-B1iACV40..5F..SPV200906-201110

DK.GRAY,TRIM1#

main58510-06420-B1iACV40..5F..ALT200906-201110

DK.GRAY,TRIM15

main58510-06430-B0iGSV40..ATX200908-201110

MD. GRAY,TRIM14

main58510-06430-B0iACV40..5FC..ALT200906-201110

MD. GRAY,TRIM13,14

main58510-06430-B1iACV40,AHV40,GSV40..ATM..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL200906-201110

DK.GRAY,TRIM1#

main58510-06430-B1iACV40,GSV40..ATM..(ALT,ATX)200906-201110

DK.GRAY,TRIM15

main58510-06430-E0iACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE)..ARL200906-201110

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-06060iACV40200812-200908

sub58521-33040

main58521-YC040iACV40,GSV40200606-200811

sub58521-06060

58543BBRACKET, FLOOR CARPET, RH

main58543-06060iACV40200606-200908

58544ABRACKET, FLOOR CARPET, LH

main58544-06060iACV40200606-200908

58561CSILENCER, FRONT FLOOR, NO.1

main58561-06080iACV40200606-200908

58562CSILENCER, FRONT FLOOR, NO.2

main58562-06080iGSV40200606-200908

58563QSILENCER, FRONT FLOOR, NO.3

main58563-06070iACV40200606-200908

58564ASILENCER, FRONT FLOOR, NO.4

main58564-06070iACV40200606-200908

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-B5iACV40,GSV40..ALT,ATX200606-201110

DK.GRAY,TRIM15

sub58569-44010

main58569-44010-B5iACV40..ATEVA,GD,SE,SPV;GSV40..PRD,PRE,SPVS,SPVZ200606-201110

DK.GRAY,TRIM1#

sub58569-44010

main58569-44010-B5iACV40..GL201012-201110

DK.GRAY,TRIM12

sub58569-44010

main58569-44010-B6iACV40..ALT200606-201110

GRAY,TRIM1#

sub58569-44010

main58569-44010-B6iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-201110

GRAY,TRIM13

sub58569-44010

main58569-44010-B6iACV40..ALT200906-201110

GRAY,TRIM13,14

sub58569-44010

main58569-44010-B6iGSV40..ATX200908-201110

GRAY,TRIM14

sub58569-44010

main58569-44010-E1iACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU200606-201110

GREGE,TRIM4#

sub58569-44010

62117GCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-07076-C0iACV40,AHV40,GSV40200606-201110

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

10 parts on this diagram · 1 diagram in section
