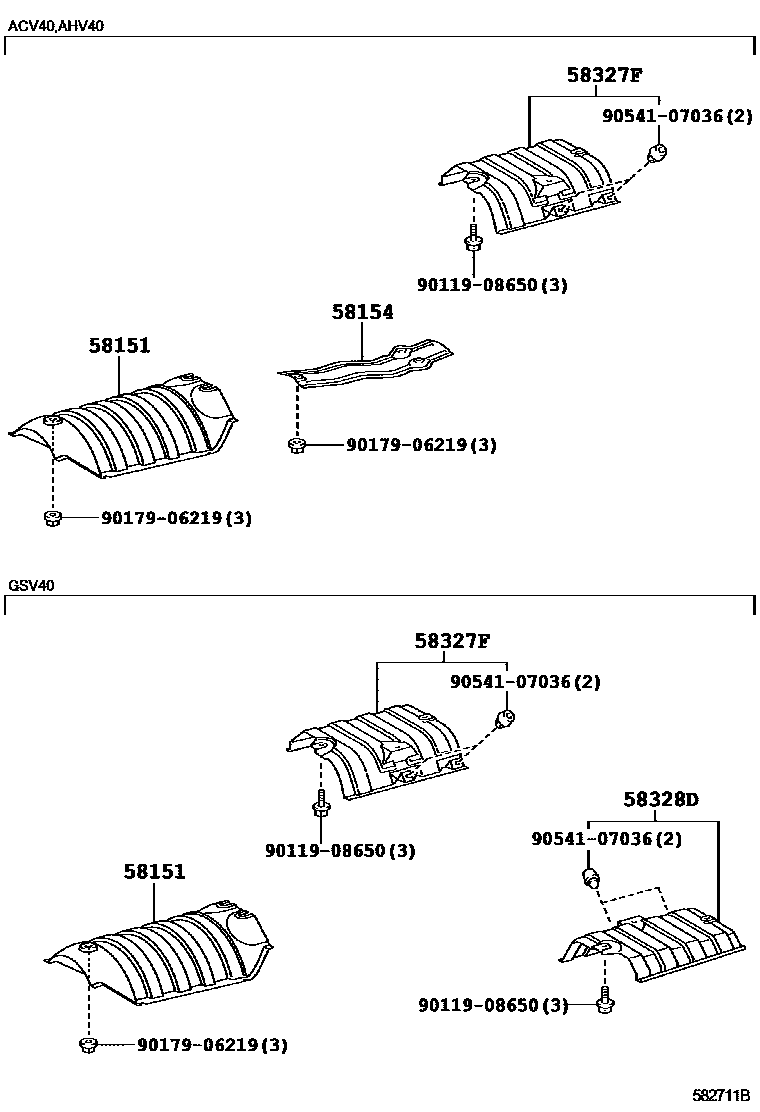

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-06070iACV40200606-200908

sub58152-33060

58154INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER

main58154-06040iACV40200606-200906

sub58154-06030

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-06040iACV40200606-200908

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-06030iGSV40200610-200908

9011908650

main90119-08650

9017906219

main90179-06219

9054107036

main90541-07036

7 parts on this diagram · 1 diagram in section
