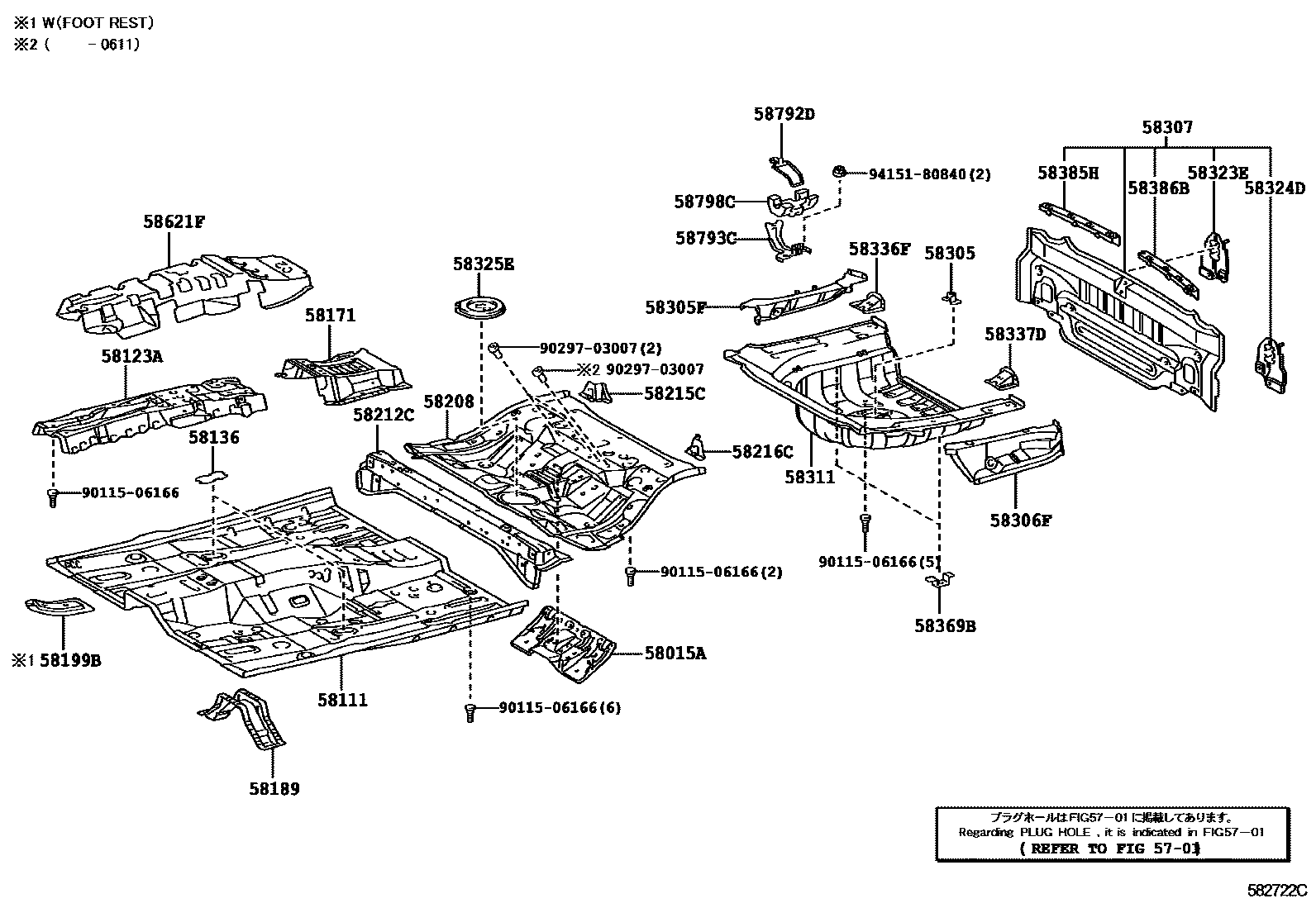

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5701

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-06080iGSV40..GCC200606-200908

sub58015-33030

main58015-06100iGSV40..ARL200606-200908

sub58015-33040

58111PAN, FRONT FLOOR

main58111-06110iACV40200606-200908

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-06080iGSV40200606-201110

sub58013-06081

58136COVER, FRONT FLOOR HOLE

main58136-06020iACV40,GSV40200606-201110

sub58136-33010

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-06060iACV40200606-200908

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33050iACV40200606-201103

main58189-33070iACV40,AHV40,GSV40201104

sub58189-33050

58199BREINFORCEMENT, FOOTREST

main58199-06030iACV40..ARL200606-200908

58208PAN, CENTER FLOOR

main58211-06130iGSV40..GD,PRE200610-200908

sub58211-06131

sub90333-30002

main58211-06150iACV40200606-200908

sub58211-06151

sub90333-30002

58212CPAN, CENTER FLOOR, FRONT

main58212-06050iACV40200606-200908

sub58212-06080

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-33040iACV40200606-200908

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-33030iACV40200606-200908

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-YC010iACV40200606-200908

sub58351-33010

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-06080iACV40200606-200908

main58305-06150iAHV40201001

sub58305-33060

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-06050iACV40200606-200908

main58306-06080iAHV40201001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06130iACV40200606-200908

sub58307-06120

58311PAN, REAR FLOOR

main58311-06090iACV40200606-200912

main58311-06110iAHV40201001-201201

sub58311-06111

sub90333-30002

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-06050iACV40200606-201107

sub58323-06051

main58323-06051iACV40,AHV40,GSV40201108-201110

sub58323-33080

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-06050iACV40200606-201107

sub58324-06051

main58324-06051iACV40,AHV40,GSV40201108-201110

sub58324-33060

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06030iACV40200606-200908

sub58325-33050

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-06050iACV40200606-200908

sub58336-33020

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-06040iACV40200606-200908

sub58337-33030

main58337-06040iAHV40201001

NO.1

sub58337-33030

main58337-33040iAHV40201001

NO.2

58369BBRACKET, FUEL TUBE, NO.3

main58369-33010iACV40200606-200908

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-33030iACV40200606-200908

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-33010iACV40200606-200908

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-06110iACV40200606-200908

sub58621-06180

58792DSUPPORT, JACK

main58792-33010iACV40200606-200908

58793CBRACKET, JACK CARRIER, NO.1

main58793-06040iACV40200606-200908

58798CCUSHION, JACK CARRIER

main58798-06030iACV40200606-200908

9011506166

main90115-06166

9029703007

main90297-03007

9415180840

main94151-80840

32 parts on this diagram · 3 diagrams in section
