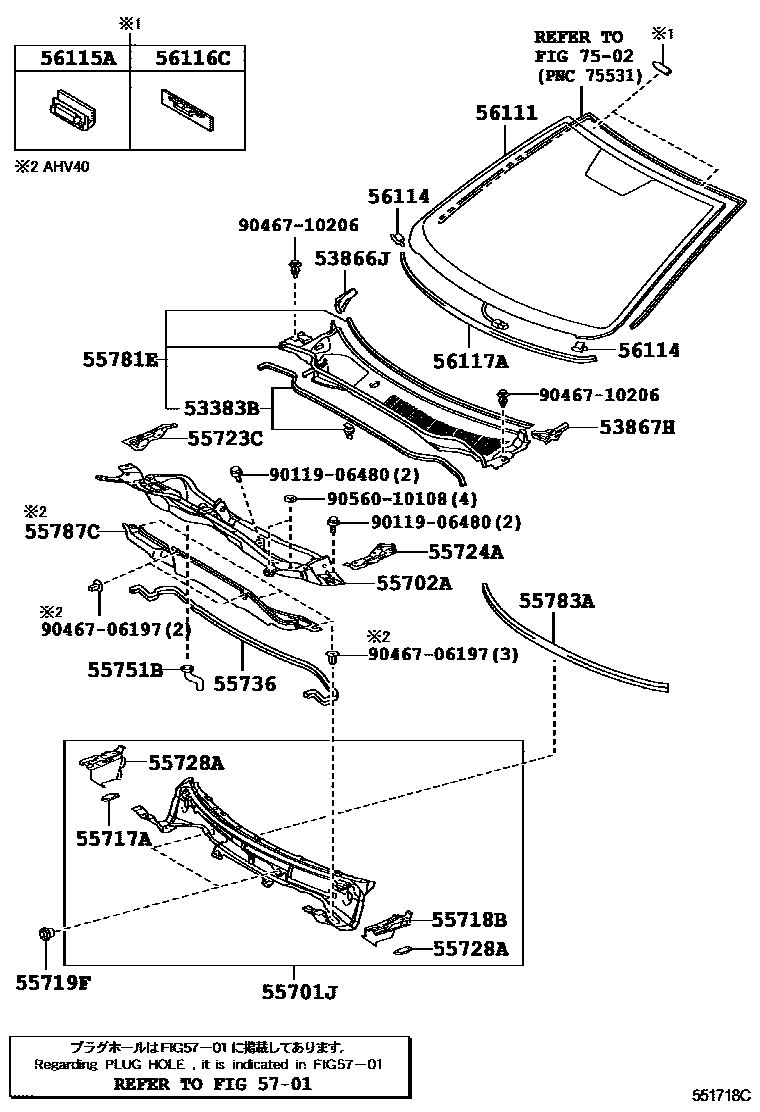

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-06090iACV40..ARL200606-200908

main53383-06100iACV40..GCC200606-200908

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33060iACV40200606-200908

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33060iACV40200606-200908

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-06160iACV40..ARL200606-200908

sub55701-33160

main55701-06170iGSV40..GCC200606-200908

sub55701-33150

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-06060iACV40,GSV40..GCC200606-200908

sub55702-33010

main55702-06070iGSV40..ARL200606-200908

sub55702-33020

main55702-06110iAHV40201001

sub55702-06050

55717APANEL, COWL TOP SIDE, INNER RH

main55717-06100iACV40200606-200908

sub55717-33040

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-06100iACV40200606-200908

sub55718-33040

55719FPACKING, FRONT LOWER PANEL

main55719-33020iACV40..ARL200606-200908

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-06090iACV40200606-200908

sub55723-33040

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-06100iACV40200606-200908

sub55724-33040

55728AREINFORCEMENT, HOOD STOPPER

main55728-06070iGSV40200606-200908

55736SEAL, WATER GUARD PLATE

main55736-06050iACV40..ARL200606-200908

sub55736-33020

main55736-06060iACV40..ARL200606-200608

sub55736-06050

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-33010iGSV40..GCC200606-200908

main55751-33020iACV40,AHV40,GSV40..ARL200606-200908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06110iGSV40..ARL200606-200908

sub55708-06100

main55708-06120iACV40,GSV40..GCC200606-200908

sub55708-33100

55783APAD, COWL TOP SILENCER

main55783-06070iACV40200606-200908

sub55783-33060

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-06020iAHV40201001

56111GLASS, WINDSHIELD

main56101-06905iGSV40..GCC200606-201004

*LAM,T=4.76,GREEN

main56101-06906iACV40,GSV40..ALT,ATEVA,ATX,SPV,SPVS200606-201004

*LAM,T=4.76,GREEN

sub56101-06989

main56101-06907iACV40..GD200606-200906

*LAM,T=4.76,GREEN

main56101-06908iGSV40..PRE200610-201004

*LAM,T=4.76,GREEN

main56101-06929iACV40,GSV40..GCC201004

*LAM,T=4.76,GREEN

main56101-06930iACV40,GSV40..ALT,ATEVA,ATX,SPV,SPVS201004

*LAM,T=4.76,GREEN

main56101-06931iACV40,GSV40..(GD,PRD,PRE,SPVZ)..ARL201004

*LAM,T=4.76,GREEN

main56101-06931iACV40,GSV40..(GD,PRD,PRE,SPVZ)..ARL201004

*LAM,T=4.76,GREEN,LIMITED

main56101-06932iAHV40201001

*LAM,T=4.76,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-33050iGSV40200606-200908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iACV40200606-200908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACV40200606-200908

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33100iACV40200606-200908

L=1480

sub56117-50140

5701

7502

9011906480

main90119-06480

9046706197

main90467-06197

9046710206

main90467-10206

9056010108

main90560-10108

27 parts on this diagram · 2 diagrams in section
