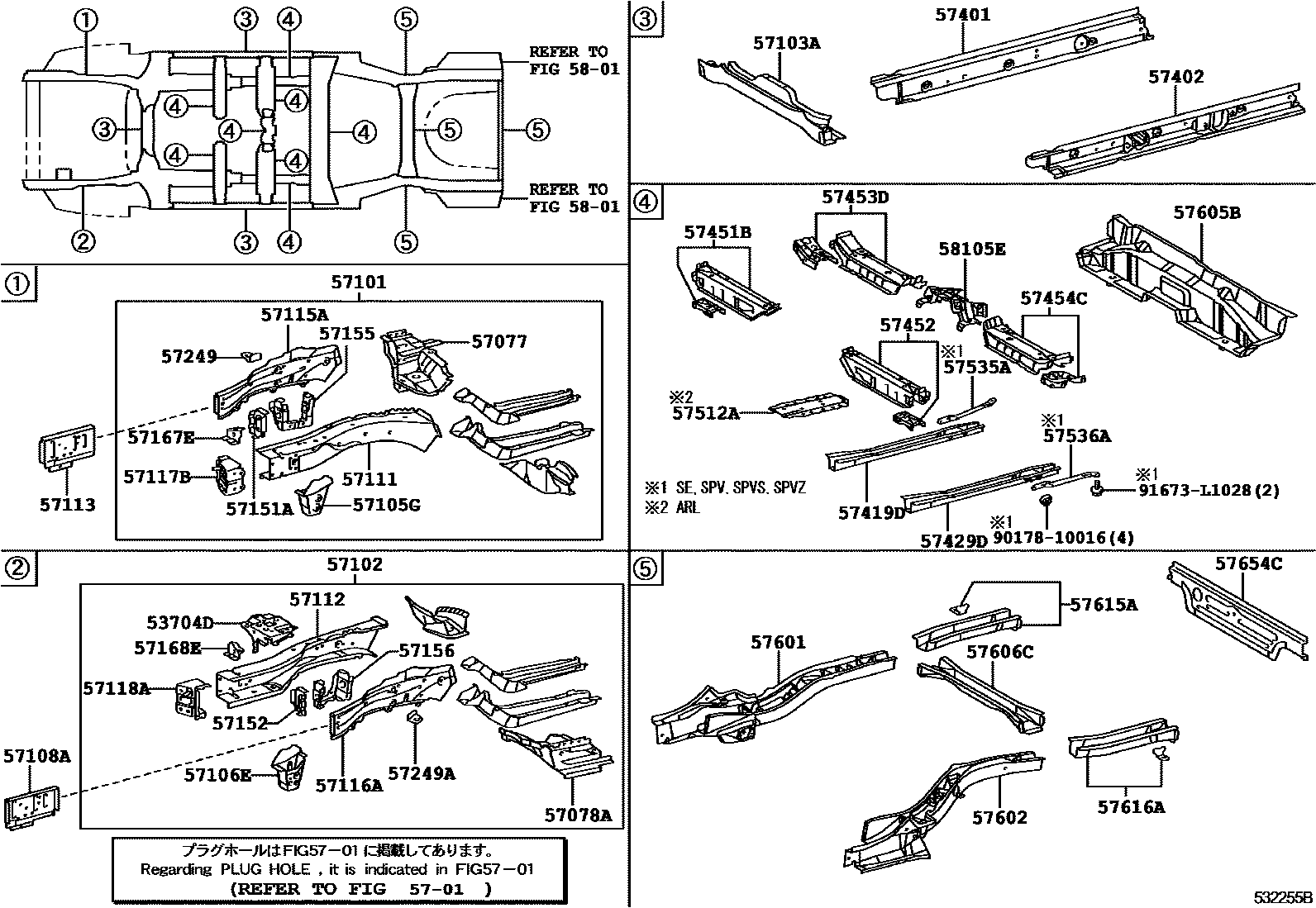

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-06050iACV40,GSV40200606-200902

sub53704-06051

main53704-06051iACV40200903-200908

main53704-06080iACV40,AHV40,GSV40200906

5701

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-06070iACV40200606-200908

sub57077-33040¥7,200

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-06070iACV40200606-200908

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06090iACV40,GSV40200606-201101

sub57101-06091

sub90333-30008¥70

main57101-06091iACV40,AHV40,GSV40201101-201110

sub57027-33011¥20,900

sub57031-33011¥5,500

sub57043-06020

sub57077-33040¥7,200

sub57115-33030¥10,800

sub57191-33010¥15,500

sub57249-10040¥440

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06130iACV40,GSV40200606-200906

sub57102-06131

sub90333-30008¥70

main57102-06200iGSV40200906-201101

sub57102-06201

sub90333-30008¥70

main57102-06201iACV40,AHV40,GSV40201101-201110

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06060iACV40,GSV40200606-200906

sub57103-06130

main57103-06120iAHV40201001-201110

main57103-06130iACV40,GSV40200906-201110

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-28120iACV40¥4,540200606-200908

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iACV40,AHV40,GSV40¥4,540200606-200908

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06020iACV40200606-200611

sub57108-06021

main57108-06021iACV40,GSV40200611-201110

sub57108-33032¥3,270

57111MEMBER, FRONT SIDE, RH

main57111-33020iACV40¥19,100200606-201101

sub57111-33021¥19,100

sub90333-30008¥70

main57111-33021iACV40,AHV40,GSV40¥19,100201101

57112MEMBER, FRONT SIDE, LH

main57112-33030iACV40¥19,100200606-201101

sub57112-33031¥19,100

sub90333-30008¥70

main57112-33031iACV40,AHV40,GSV40¥19,100201101

57113EXTENSION, FRONT SIDE MEMBER, RH

main57107-06030iACV40200606-200611

sub57107-06031

main57107-06031iACV40,GSV40200611-201110

sub57107-33032¥3,360

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06050iACV40200606-200908

sub57115-33030¥10,800

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06040iACV40200606-200908

sub57116-33020¥10,800

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-33050iACV40¥3,270200606-200908

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-33050iACV40¥3,270200606-200908

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-33020iACV40¥1,150200606-200908

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-33030iACV40¥1,140200606-200908

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-33030iACV40¥1,940200606-200908

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-33030iACV40¥2,110200606-200908

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-33020iACV40¥370200606-200908

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-33020iACV40¥370200606-200908

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iACV40¥440200606-200908

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iACV40¥440200606-200908

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-06150iACV40,GSV40200606-201101

sub57401-06151

main57401-06151iACV40,AHV40,GSV40201102-201110

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-06150iACV40,GSV40200606-201101

sub57402-06151

main57402-06151iACV40,AHV40,GSV40201102-201110

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06080iACV40200606-200908

sub57419-06040

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-06050iACV40200606-200908

sub57429-06020

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-06905iACV40200606-200908

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-06904iACV40200606-201110

sub57452-06905

57453DMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-06901iACV40200606-200908

57454CMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-06901iACV40200606-200908

57512AREINFORCEMENT, FRONT FLOOR, RH

main57512-06010iACV40..ARL200606-200908

57535ABRACE, FRONT FLOOR, RH

main57535-06020iACV40..SE,SPV200606-200908

57536ABRACE, FRONT FLOOR, LH

main57536-06020iACV40..SE,SPV200606-200908

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06903iACV40200606-200912

main57601-06906iACV40,AHV40,GSV40201001

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06902iACV40200606-200908

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06100iACV40200606-200912

main57605-06150iACV40,AHV40,GSV40201001

sub57605-33110¥19,400

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06090iACV40200606-200908

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06916iACV40200606-201201

sub57615-06924

sub90333-30008¥70

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06918iACV40200606-200912

sub57616-33914¥10,900

sub58328-33010

sub91631-J0612¥110

main57616-06923iACV40,AHV40,GSV40201001

sub57616-33914¥10,900

sub58328-33010

sub91631-J0612¥110

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06050iACV40200606-200908

sub57654-06040

5801

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06040iACV40200606-201110

sub58105-06041

9017810016

main90178-10016¥100

91673L1028

main91673-L1028¥120

47 parts on this diagram · 1 diagram in section
