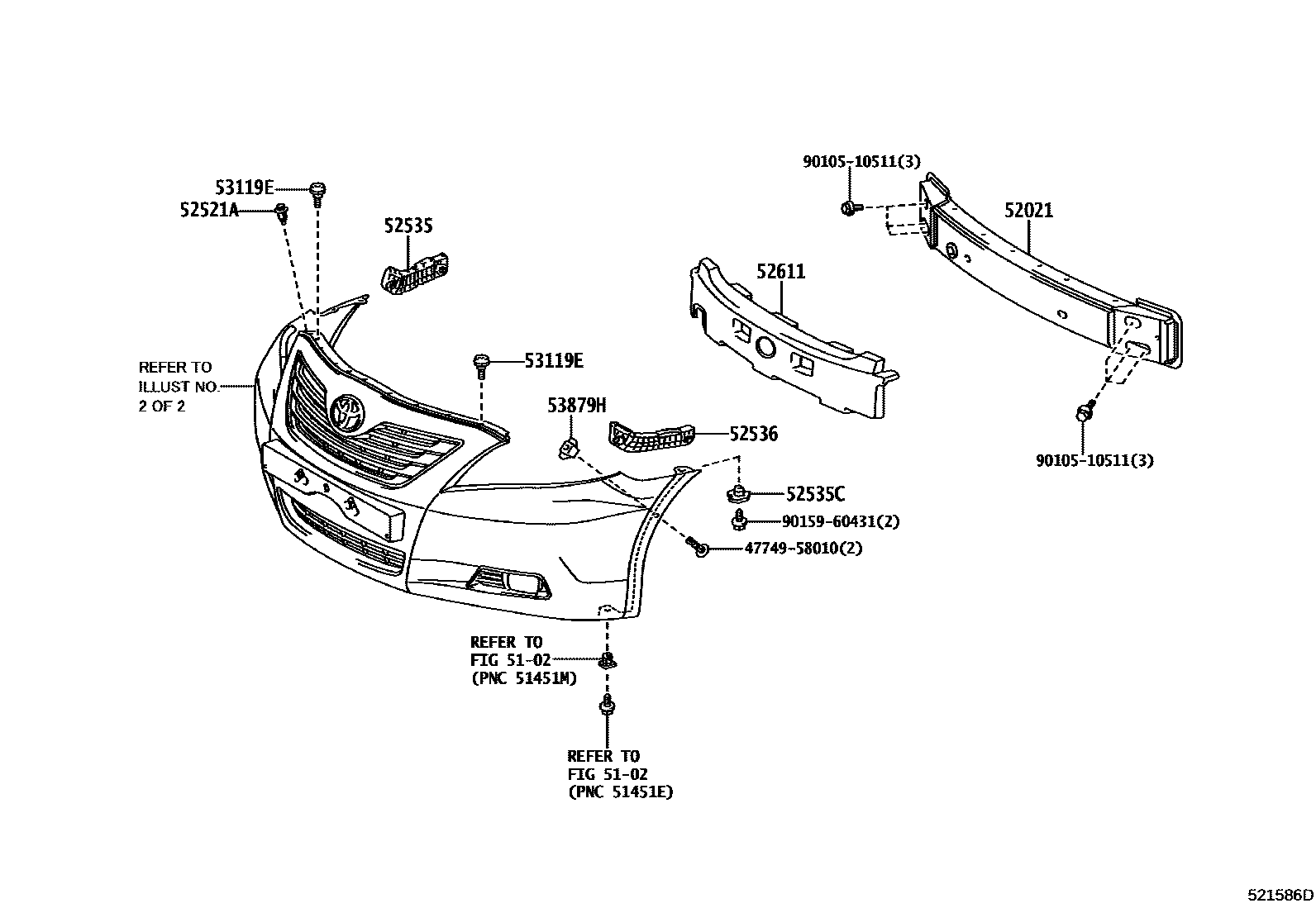

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-06070iACV40,GSV40200606-200903

sub52021-06071

main52021-06071iACV40200904-200906

main52021-06071iGSV40200904-200908

AURION TRD PACKAGE

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-08180iACV40200606-200906

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-06050iACV40200606-200906

main52535-06060iGSV40200610-200908

AURION TRD PACKAGE

main52535-06110iGSV40..SPVS,SPVZ200908

AURION TRD PACKAGE

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iGSV40200606-200908

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-06040iACV40,AHV40200606-200906

main52536-06050iGSV40..SPVS,SPVZ200610-200908

AURION TRD PACKAGE

main52536-06100iGSV40200908

AURION TRD PACKAGE

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06060iACV40200606-200906

main52611-06070iGSV40200610-200908

AURION TRD PACKAGE

main52611-06170iACV40200906

main52611-06200iGSV40200908

AURION TRD PACKAGE

main52611-06220iAHV40201001

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120iACV40200606-200906

53879HRETAINER, FRONT FENDER LINER

main53879-58010iACV40200606-200908

4774958010CLIP, PIN HOLD

main47749-58010

9010510511

main90105-10511

9015960431

main90159-60431

12 parts on this diagram · 10 diagrams in section
