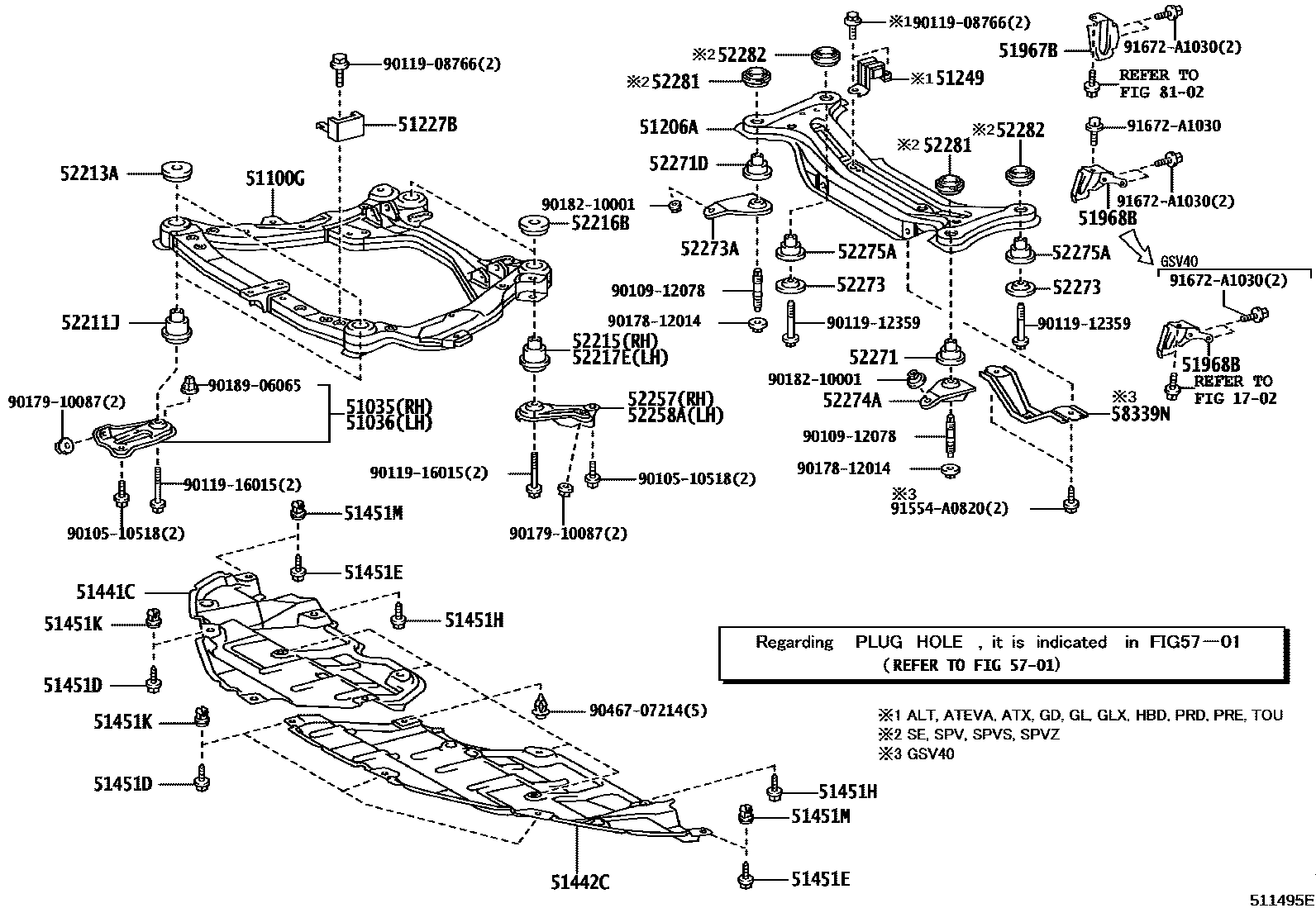

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1FLOOR UNDER COVER

1702

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-06030iACV40200606-200908

sub51035-33030

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-06030iGSV40200606-200908

sub51036-33030

51100GFRAME ASSY, FRONT

main51100-06080iACV40,GSV40..ATM200609-200908

sub51100-33072

main51100-06090iACV40..5F200609-200906

main51100-06120iACV40..5FC200606-200609

sub51100-06080

main51100-06130iACV40..5F200606-200609

sub51100-06090

main51100-06160iAHV40201001

sub51100-33102

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06070iGSV40200606-200908

sub51206-33100

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06070iACV40200606-200908

sub51227-06050

51249DAMPER, REAR SUSPENSION MEMBER

main51249-06010iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

sub51249-06020

51441CCOVER, ENGINE UNDER, RH

main51441-06090iACV40200606-200908

main51441-06140iACV40,AHV40,GSV40200906

51442CCOVER, ENGINE UNDER, LH

main51442-06080iACV40200606-200611

sub51442-06081

main51442-06081iGSV40200611-200908

main51442-06130iACV40,AHV40,GSV40200906

51451DSCREW, NO.1

main90159-60525iACV40,GSV40200606-201110

51451ESCREW, NO.2

main90159-60525iACV40,GSV40200606-201110

51451HSCREW, NO.3

main90159-60525iACV40,AHV40,GSV40200606-201110

51451KGROMMET, SCREW, NO.1

main90189-06193iACV40,AHV40,GSV40200606-201110

51451MGROMMET, SCREW, NO.2

main90189-06193iACV40,AHV40,GSV40200606-201110

51967BHOOK, TRANSPORT, REAR RH

main51967-06030iACV40,AHV40,GSV40..ARL200606-200908

PAPUA NEW GUINEA/FIJI SPEC

sub51967-33030

main51967-06030iACV40,AHV40,GSV40..ARL200606-200908

NEW ZEALAND SPEC

sub51967-33030

51968BHOOK, TRANSPORT, REAR LH

main51968-06040iACV40,GSV40..GCC200606-200908

NEW ZEALAND SPEC

sub51968-33020

main51968-06040iACV40..GCC200606-200908

PAPUA NEW GUINEA/FIJI SPEC

sub51968-33020

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06110iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

sub52211-06090

main52211-06120iACV40200606-200908

sub52211-06140

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06110iGSV40..ATX,GD,PRD,PRE,TOU200610-200908

sub52213-06090

main52213-06120iACV40200606-200908

sub52213-06140

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06090iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

sub52215-06070

main52215-06100iACV40..SE,SPV200606-200908

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06090iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

sub52216-06070

main52216-06100iACV40..SE,SPV200606-200908

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06070iACV40,AHV40,GSV40..ALT,ATEVA,ATX,GD,GL,GLX,HBD,PRD,PRE,TOU200606-200908

sub52217-06050

main52217-06080iGSV40..SPVS,SPVZ200606-200908

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-06030iACV40200606-200908

sub51023-33060

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-06030iACV40200606-200908

sub51024-33070

52271CUSHION, REAR SUSPENSION MEMBER

main52272-06070iGSV40..SPVS,SPVZ200606-200908

main52272-06080iGSV40..ATX,GD,PRD,PRE,TOU200606-200908

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06080iACV40..SE,SPV200606-200908

main52271-06090iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

sub52271-06060

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06020iACV40200606-200908

sub52273-33010

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33030iACV40200606-200908

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33030iACV40200606-200908

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06080iACV40..SE,SPV200606-200908

main52275-06090iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

sub52275-06060

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-06020iACV40..SE,SPV200606-200908

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06050iACV40..SE,SPV200606-200908

5701

58339NBRACKET, JACK UP

main58339-06010iGSV40200610-200908

sub58339-33021

8102

9010510518

main90105-10518

9010912078

main90109-12078

9011908766

main90119-08766

9011912359

main90119-12359

9011916015

main90119-16015

9017812014

main90178-12014

9017910087

main90179-10087

9018210001

main90182-10001

9018906065

main90189-06065

9046707214

main90467-07214

91554A0820

main91554-A0820

91672A1030

main91672-A1030

46 parts on this diagram · 2 diagrams in section
