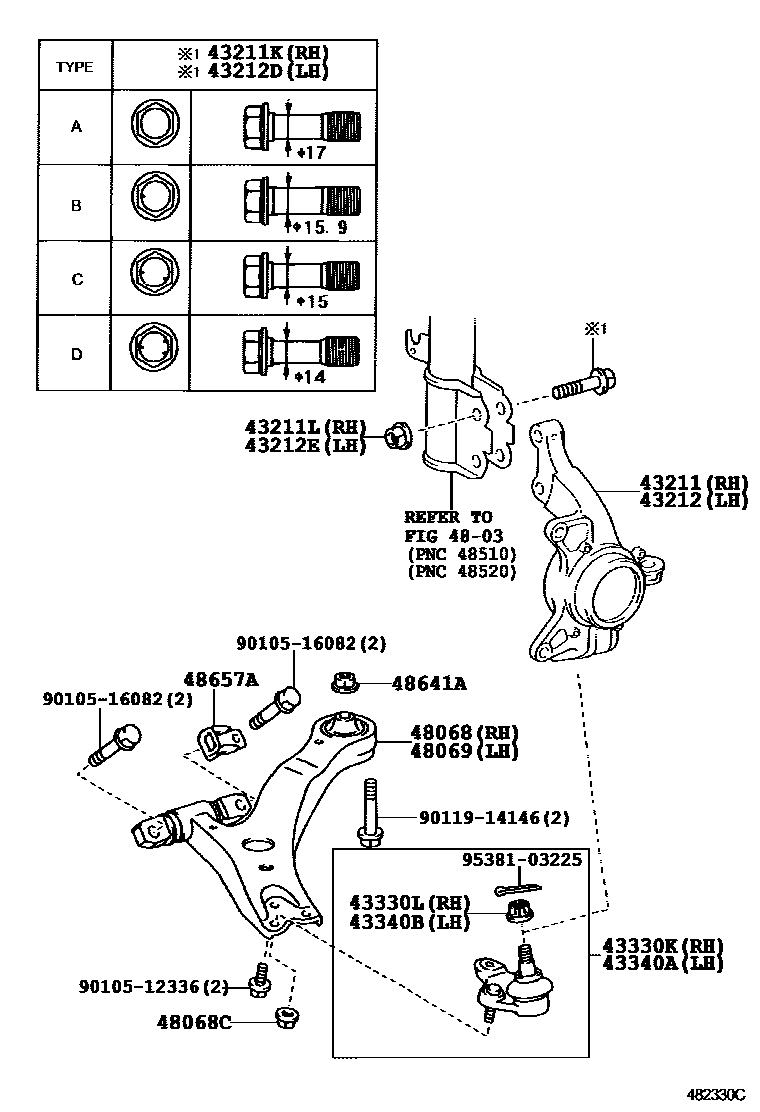

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-06220iACV40,AHV40,GSV40200606-200908

sub43211-58010

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iACV40,AHV40,GSV40200606-200908

OD=17,TYPE A:REFER ILLUST.

main90105-17013iACV40,GSV40200606-200908

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iACV40,GSV40200606-200908

OD=15,TYPE C:REFER ILLUST.

main90105-17015iACV40,AHV40,GSV40200606-200908

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iACV40,AHV40,GSV40200606-200908

43212KNUCKLE, STEERING, LH

main43212-06220iACV40200606-200908

sub43212-58010

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iACV40,GSV40200606-200908

OD=17,TYPE A:REFER ILLUST.

main90105-17013iACV40,AHV40,GSV40200606-200908

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iACV40,AHV40,GSV40200606-200908

OD=15,TYPE C:REFER ILLUST.

main90105-17015iACV40,AHV40,GSV40200606-200908

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iACV40200606-200908

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39775iACV40,GSV40200606-201103

sub43330-39845

main43330-39845iACV40,AHV40,GSV40201103

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACV40200606-200908

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39545iACV40200606-201103

sub43340-39605

main43340-39605iACV40,AHV40,GSV40201103

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iACV40200606-200908

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33060iACV40200606-201103

sub48068-33070

main48068-33070iACV40,AHV40,GSV40201103

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12015iACV40200606-200908

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33060iACV40200606-201103

sub48069-33070

main48069-33070iACV40,AHV40,GSV40201103

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iACV40200606-200908

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-06020iACV40200606-200908

9010512336

main90105-12336

9010516082

main90105-16082

9011914146

main90119-14146

9538103225

main95381-03225

20 parts on this diagram · 1 diagram in section
