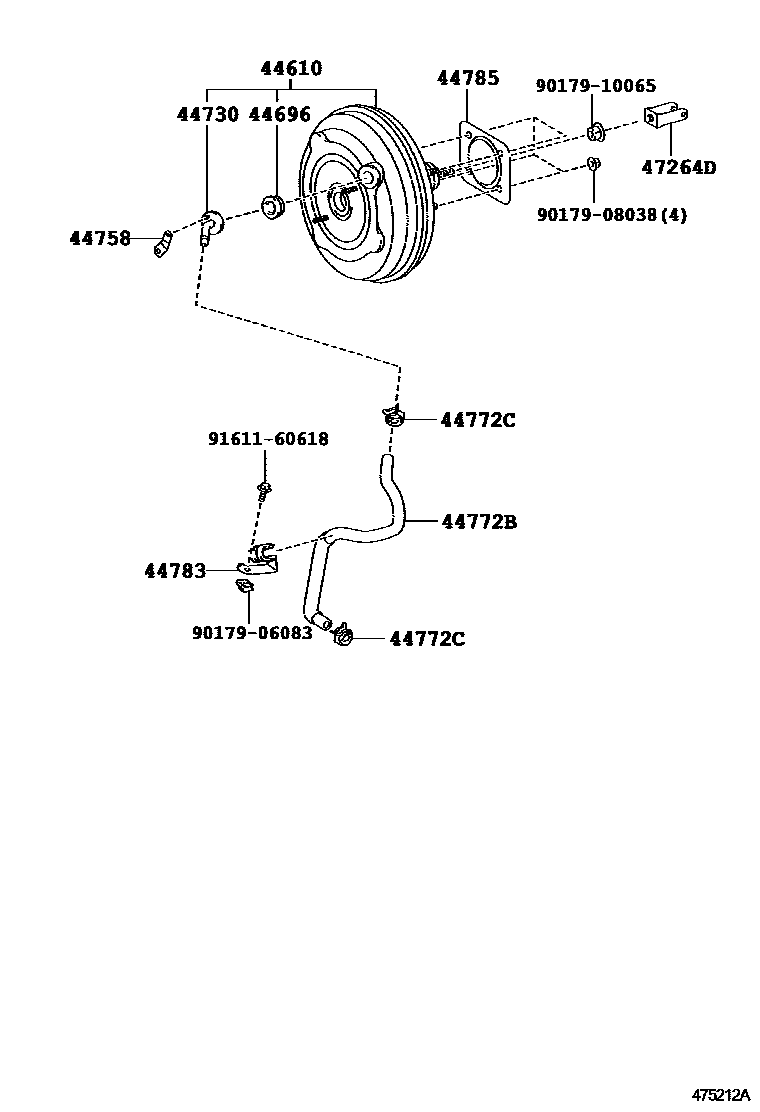

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-06320iACV40..ATEVA,SPV200606-200906

main44610-06330iACV40..GD200606-200908

main44610-06330iACV40..ATEVA,SPV200708-200906

VEHICLE STABILITY CONT-WITH

main44610-06330iACV40,GSV40..ARL200906-201110

LABEL=44610-06330

main44610-06331iACV40,GSV40..ARL201010-201110

LABEL=44610-06331

main44610-06340iGSV40..TOU200606-200908

main44610-06341iACV40,GSV40..GL,GLX,SE,TOU200906-201110

LABEL=44610-06341

main44610-06342iACV40,GSV40..GL,GLX,SE,TOU201010-201110

LABEL=44610-06342

main44610-06350iGSV40..GD200610-200908

main44610-06351iGSV40..GD200908-201110

LABEL=44610-06351

main44610-06352iGSV40..GD201010-201110

LABEL=44610-06352

main44610-06530iACV40,GSV40..ARL201107-201110

LABEL=44610-06530

main44610-06540iACV40,GSV40..GL,GLX,SE,TOU201107-201110

LABEL=44610-06540

main44610-06550iGSV40..GD201107-201110

LABEL=44610-06550

44696GROMMET, CHECK VALVE

main90480-24015iACV40,GSV40200606-201110

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iACV40..ARL200606-201110

main44730-28030iACV40..GCC200606-200908

44758BRACKET, VACUUM CHECK VALVE

main44758-32070iGSV40..ARL200606-200908

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33120iACV40..ARL200606-200906

main44772-33130iGSV40..ARL200610-200908

main44772-33150iACV40..GCC200606-200906

main44772-33170iGSV40..GCC200610-200908

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iACV40200606-200908

44783CLAMP, VACUUM HOSE

main44783-28010iACV40200606-200906

main44783-33010iGSV40..GCC200610-200908

44785GASKET, BRAKE BOOSTER

main44785-16020iACV40200606-200908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06020iACV40200810-201110

main47264-63020iACV40,GSV40200606-200810

9017906083

main90179-06083

9017908038

main90179-08038

9017910065

main90179-10065

9161160618

main91611-60618

13 parts on this diagram · 4 diagrams in section
