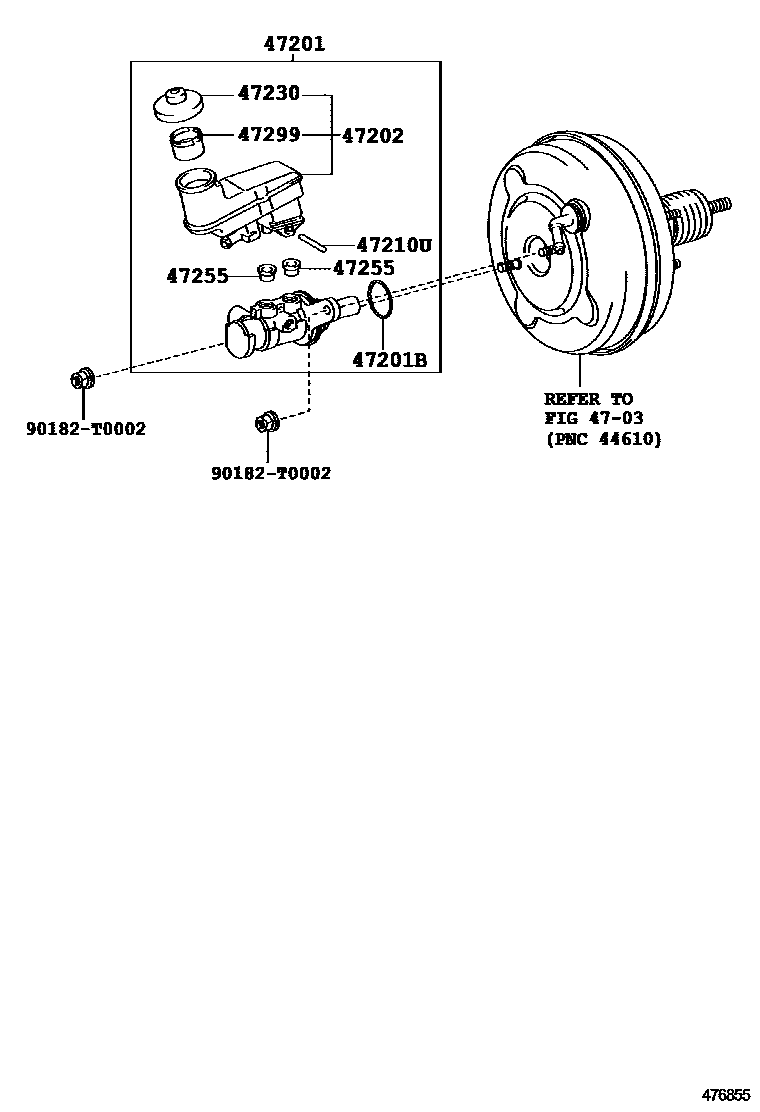

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06210iACV40..5F..SPV200708-200906

VEHICLE STABILITY CONT-WITH

main47201-06210iACV40..5F..ARL200906-201009

main47201-06211iACV40..5F..ARL201010-201110

main47201-06310iACV40..5F..SPV200606-200906

main47201-06320iACV40..5FC..(ATEVA,SPV)200606-200906

sub47201-33500

main47201-06330iACV40..5FC..ALT200708-200906

VEHICLE STABILITY CONT-WITH

main47201-06330iGSV40..ARL200606-201009

main47201-06331iACV40,GSV40..ATM..ARL201010-201110

main47201-06340iACV40..5F..GCC200606-201009

main47201-06341iACV40..5F..GCC201010-201110

main47201-06350iACV40..5FC..GCC200606-201009

main47201-06351iACV40,GSV40..ATM..(GL,GLX,SE,TOU)201010-201110

sub47201-33481

main47201-06360iGSV40..GD200610-201009

main47201-06361iGSV40..GD201010-201110

main47201-33540iAHV40201001-201110

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-8Y001iACV40200606-201110

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06120iACV40..5F..ARL200606-201110

main47220-06120iACV40..5F..ALT200708-200906

VEHICLE STABILITY CONT-WITH

main47220-06150iGSV40..ARL200606-201110

main47220-06150iACV40..5FC..ALT200708-200906

VEHICLE STABILITY CONT-WITH

main47220-06160iACV40..5F..GCC200606-201110

sub47220-33050

main47220-06170iACV40..5FC..GCC200606-201110

main47221-50080iAHV40201001-201110

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iACV40,GSV40200606-201110

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iACV40,GSV40201005-201110

sub47230-33072

main47230-52030iACV40200606-201005

sub47230-33071

main47230-58010iAHV40201001-201110

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAHV40201001-201110

main90015-AT001iGSV40200606-201110

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iAHV40201001-201110

main47299-52110iACV40200606-201110

90182T0002

main90182-T0002

9 parts on this diagram · 3 diagrams in section
