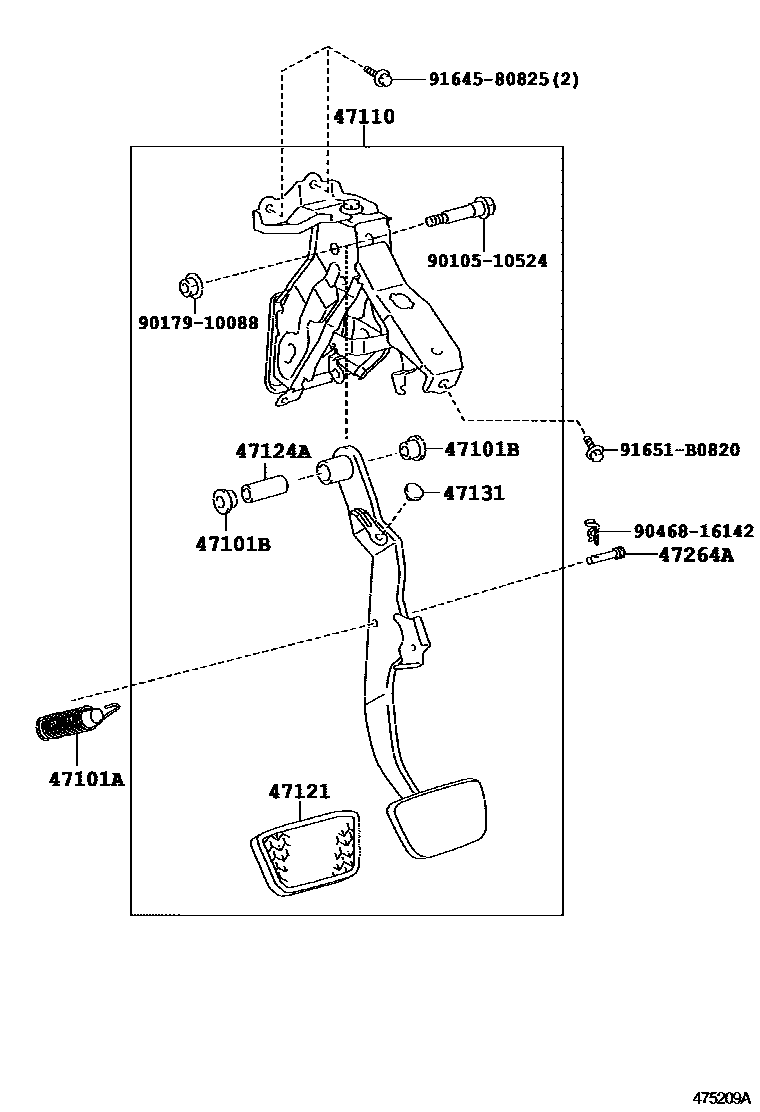

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-33170iAHV40201001

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14036iACV40200606-200908

47101BBUSH(FOR BRAKE PEDAL)

main90089-38004iACV40,GSV40200606-200702

sub90386-13015

main90386-13015iACV40200703-200908

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06130iGSV40..GCC200606-200908

main47110-06140iACV40..5F..SE200606-200906

main47110-06150iACV40..5FC..(ALT,ATEVA,GD)200606-200908

main47110-06160iGSV40..ATX200904-200908

LIMITED

main47110-06160iACV40..5FC..SPV200606-200908

main47110-06170iACV40..5F..SPV200606-200906

main47110-06180iACV40..5F..ALT200606-200906

main47110-06190iACV40..5FC..GL201104

LIMITED

main47110-06190iACV40..5FC..SE200708-200906

main47110-06200iACV40..5F..GL201104

LIMITED

main47110-06200iACV40..5F..SE200708-200906

47121PAD, BRAKE PEDAL

main31321-06010iACV40..5F..(ALT,GL,GLX)200801-200906

main31321-52010iACV40..5F..(ALT,GL,GLX)200606-200801

main31321-53010iACV40..5F..SPV200606-200906

main31321-53010iACV40..5F..GL201104

LIMITED

main47121-06030iACV40,GSV40..ATM..(ALT,ATEVA,ATX,GD,GL,GLX,PRD,PRE,TOU)200801-200908

sub47121-50020

main47121-50020iACV40,GSV40..ATM..(ALT,ATEVA,ATX,GD,GL,GLX,PRD,PRE,TOU)200606-200801

main47121-53010iACV40..5FC..SPV200606-200908

main47121-53010iGSV40..ATX200904-200908

LIMITED

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACV40200606-200908

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV40200606-200908

47264APIN(FOR PUSH ROD)

main47148-33011iACV40200606-200908

9010510524

main90105-10524

9017910088

main90179-10088

9046816142

main90468-16142

9164580825

main91645-80825

91651B0820

main91651-B0820

13 parts on this diagram · 2 diagrams in section
