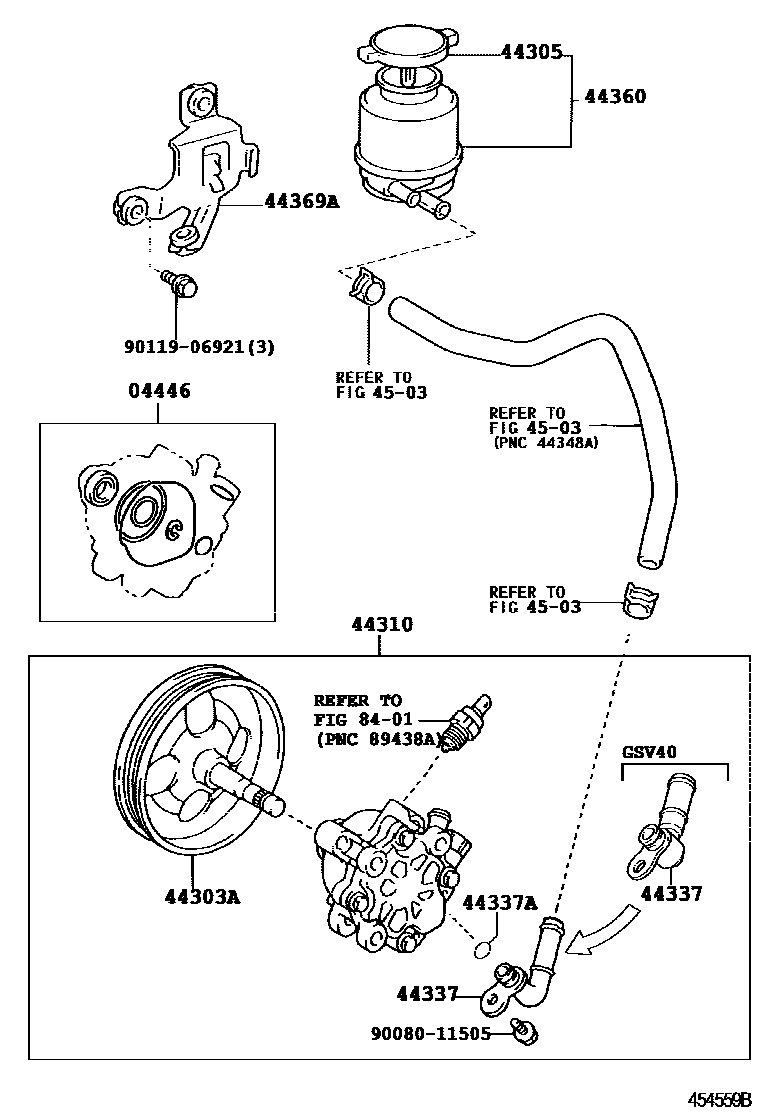

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-06060iACV40,GSV40200606-200708

main04446-06100iACV40,GSV40200709-200803

sub04446-06110

main04446-06110iACV40,GSV40200803-200908

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iACV40,GSV40200606-200908

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACV40,GSV40200606-200801

sub44305-28060

main44305-28060iACV40,GSV40200802-200908

sub44305-28061

44310PUMP ASSY, VANE

main44310-06100iGSV40200610-200908

main44310-06130iACV40..SE,SPV200606-200908

main44310-06180iACV40..ALT,ATEVA,GD,GL,GLX200606-200908

44337UNION, POWER STEERING SUCTION PORT

main44337-06060iACV40200606-200908

main44337-06080iGSV40200610-200908

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30093iACV40,GSV40200606-200908

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-33040iACV40,GSV40200606-200908

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-33020iACV40,GSV40200606-200809

sub44390-33021

main44390-33021iACV40,GSV40200810-200908

4503

8401

9008011505

main90080-11505

9011906921

main90119-06921

12 parts on this diagram · 1 diagram in section
