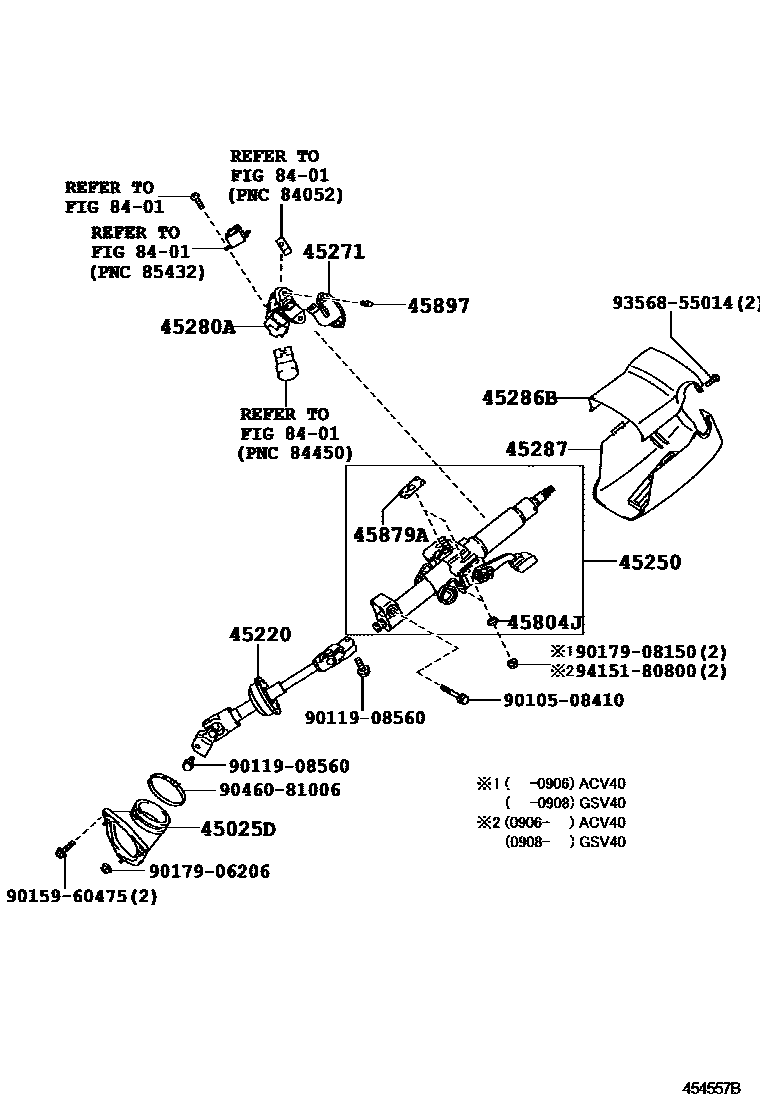

STEERING COLUMN & SHAFT

0001 1 0004 1W(SMART KEY SYSTEM)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06070iGSV40..GCC200606-200908

MADE IN AUSTRALIA

main45025-06080iGSV40..ARL200606-200908

MADE IN AUSTRALIA

main45025-33100iACV40,AHV40,GSV40..ARL200906

main45025-33100iGSV40..ARL200606-200908

MADE IN JAPAN

main45025-33110iGSV40..GCC200606-200908

MADE IN JAPAN

main45025-33110iACV40,GSV40..GCC200906

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06120iACV40..GCC200606-200909

sub45220-06121

main45220-06121iACV40,GSV40..GCC200910-201005

sub45220-06122

main45220-06122iACV40,GSV40..GCC201006

main45220-06130iACV40,GSV40..ARL200606-200812

sub45220-06131

main45220-06131iACV40,GSV40..ARL200901-200909

sub45220-06132

main45220-06132iACV40,GSV40..ARL200910

main45220-06161iAHV40201001

45250COLUMN ASSY, STEERING

main45250-06510iGSV40..ATX,PRD,SPVS,TOU200606-200908

main45250-06520iACV40,AHV40,GSV40..GD,HBD,PRE,SPVZ200610-200908

45271CLAMP, STEERING COLUMN, UPPER

main45271-06040iACV40200606-200908

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06080iACV40..5FC200606-200908

main45280-06100iACV40..5F200606-200906

45286BCOVER, STEERING COLUMN, UPR

main45286-06110-B0iACV40..SE200906-201009

DK.GRAY,TRIM14,15

main45286-06110-B0iACV40..ALT200606-200908

DK.GRAY,TRIM15

main45286-06110-B0iACV40..ALT200606-201009

DK.GRAY,TRIM1#

main45286-06110-B0iACV40..SE200906-201009

DK.GRAY,TRIM4#

main45286-06110-B0iACV40..SE200906-201009

DK.GRAY,TRIM1#,41

main45286-06110-B0iGSV40..TOU200908-201009

DK.GRAY,TRIM41

main45286-06110-B0iGSV40..TOU200908-201009

DK.GRAY,TRIM1#,4#

main45286-06110-B1iACV40..ALT200606-201009

MD.GRAY,TRIM1#

main45286-06110-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC200606-201009

MD.GRAY,TRIM13

main45286-06110-E0iACV40..ATEVA,GD,GL,GLX200606-201009

ASH BROWN,TRIM4#

main45286-06110-E0iGSV40..TOU;ACV40..ATEVA,GD200906-201009

ASH BROWN,TRIM40

main45286-06111-B0iGSV40..TOU201009-201110

DK.GRAY,TRIM1#

main45286-06111-B0iACV40,GSV40..ALT,ATX,SPV,SPVS,SPVZ201009-201110

DK.GRAY,TRIM4#

main45286-06111-B0iACV40,GSV40..ALT,ATX,SPV,SPVS,SPVZ201009-201110

DK.GRAY,TRIM41

main45286-06111-B0iACV40,GSV40..ALT,ATX,SPV,SPVS,SPVZ201009-201110

DK.GRAY,TRIM1#,4#

main45286-06111-B1iACV40,GSV40..(GD,GL,GLX,TOU)..GCC201009-201110

MD.GRAY,TRIM1#

main45286-06111-E0iACV40,GSV40..(GD,GL,GLX)..GCC201009-201110

ASH BROWN,TRIM40

main45286-06111-E0iGSV40..TOU201009-201110

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06110-B0iACV40..ALT200906-201105

DK.GRAY,TRIM4#

main45287-06110-B0iACV40..ALT200606-200908

DK.GRAY,TRIM15

main45287-06110-B0iACV40..ALT200606-201105

DK.GRAY,TRIM1#

main45287-06110-B0iACV40..SE200906-201105

DK.GRAY,TRIM1#,41

main45287-06110-B0iACV40..SE200906-201105

DK.GRAY,TRIM14,15

main45287-06110-B0iGSV40..PRD200908-201105

DK.GRAY,TRIM1#,4#

main45287-06110-B0iGSV40..PRD200908-201105

DK.GRAY,TRIM41

main45287-06110-B1iACV40..ALT200606-201105

MD.GRAY,TRIM1#

main45287-06110-B1iACV40..ALT200606-201105

MD.GRAY,TRIM13

main45287-06110-E0iGSV40..PRD,TOU200606-201105

ASH BROWN,TRIM4#

main45287-06110-E0iACV40,GSV40..ATEVA,TOU200906-201105

ASH BROWN,TRIM40

main45287-06111-B0iGSV40..ATX,SPVS201105-201110

DK.GRAY,TRIM4#

main45287-06111-B0iGSV40..TOU201105-201110

DK.GRAY,TRIM1#

main45287-06111-B0iGSV40..ATX,SPVS201105-201110

DK.GRAY,TRIM1#,4#

main45287-06111-B0iGSV40..ATX,SPVS201105-201110

DK.GRAY,TRIM41

main45287-06111-B1iACV40..GL,GLX201105-201110

MD.GRAY,TRIM1#

main45287-06111-E0iACV40..GL,GLX201105-201110

ASH BROWN,TRIM4#

main45287-06111-E0iGSV40..TOU201105-201110

ASH BROWN,TRIM40

main45287-06160-B0iGSV40..SPVZ200908-201105

DK.GRAY,TRIM1#,4#

main45287-06160-B0iAHV40,GSV40..HBD,PRE200610-201105

DK.GRAY,TRIM1#

main45287-06160-B0iACV40..GD200906-201105

DK.GRAY,TRIM1#,41

main45287-06160-B1iGSV40..GD200610-201105

MD.GRAY,TRIM1#

main45287-06160-E0iGSV40..GD200610-201105

ASH BROWN,TRIM4#

main45287-06160-E0iACV40..GD200906-201105

ASH BROWN,TRIM40

main45287-06161-B0iGSV40..SPVZ201105-201110

DK.GRAY,TRIM1#,4#

main45287-06161-B0iGSV40..PRE201105-201110

DK.GRAY,TRIM1#

main45287-06161-B1iGSV40..GD201105-201110

MD.GRAY,TRIM1#

main45287-06161-E0iGSV40..GD201105-201110

ASH BROWN,TRIM4#

main45287-06390-B0iACV40..ALT,SPV201105-201110

DK.GRAY,TRIM1#

main45287-06390-B0iACV40..ALT,SPV201105-201110

DK.GRAY,TRIM1#,4#

main45287-06400-B0iACV40,AHV40..GD,HBD201105-201110

DK.GRAY,TRIM1#,4#

45804JCOLLAR SUB-ASSY, BREAK AWAY

main45804-22030iGSV40200606-200908

45879ACAPSULE, BREAK AWAY

main45879-22070iACV40200606-200908

45897BOLT, STEERING LOCK SET

main45897-12020iACV40,AHV40,GSV40200606-200908

8401

9010508410

main90105-08410

9011908560

main90119-08560

9015960475

main90159-60475

9017906206

main90179-06206

9017908150

main90179-08150

9046081006

main90460-81006

9356855014

main93568-55014

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
